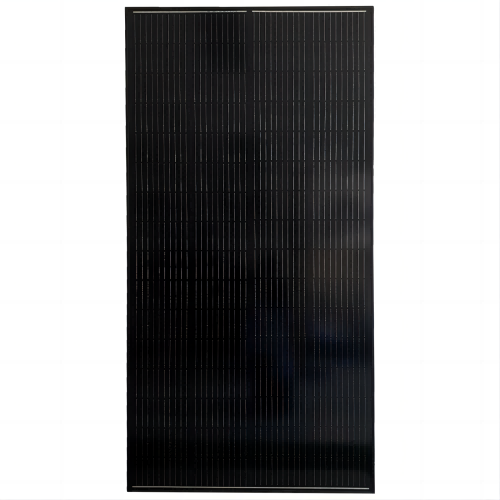

RIGID SOLAR PV MODULE 110W
Nominal Power 110W
Maximum Power Current 5.71A
Maximum Power Voltage 19.25V
Open-circuit Voltage 22.75V
Short-circuit Current 6.06A
Maximum System Voltage 500V
Output Tolerance 0~+3%
Cable (MC4) 700mm / 2.5mm²
Module Structure Aluminum Frame / Glass / EVA /Backsheet
Junction box rating ≥IP67
Cell 158.75*29.9–35*3
Working Temperature -40~+80℃
Module Dimensions 1080*510*30mm
Weight(Net /Gross) 6.0/6.8kg
Maximum Power Current 5.71A
Maximum Power Voltage 19.25V
Open-circuit Voltage 22.75V
Short-circuit Current 6.06A
Maximum System Voltage 500V
Output Tolerance 0~+3%
Cable (MC4) 700mm / 2.5mm²
Module Structure Aluminum Frame / Glass / EVA /Backsheet
Junction box rating ≥IP67
Cell 158.75*29.9–35*3
Working Temperature -40~+80℃
Module Dimensions 1080*510*30mm
Weight(Net /Gross) 6.0/6.8kg
Limited time promotion
(ειδικές τιμές για ποσότητες σε εμπόρους)
3
βλέπουν το προϊόν αυτό τώρα!
Κωδικός προϊόντος:
MONO-12-115W
Κατηγορίες: CARAVAN & CAMPER, Rigid/Standard
Περιγραφή
The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
Using tempered glass, high transparency.
Anti-corrosion EVA effectively protects the battery panel.
Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
Lightweight and flexible features can make it seamlessly integrated into your vehicle.
Packed in a single carton, with protective corners on all four corners.
OEM and ODM supported.
Σχετικά
Frequently bought together
Σχετικά προϊόντα
550W MONO SOLAR PANEL
SKU:
MONO-550W
Enter your email in the field below and we will notify you when the product is back in stock.

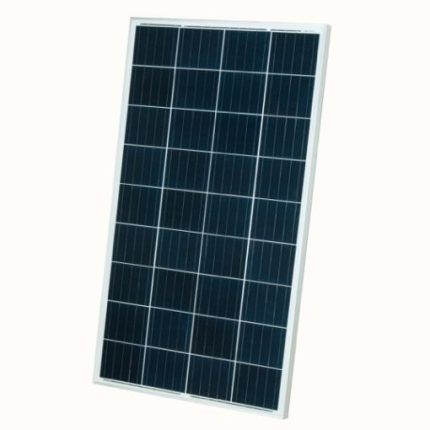

100W (1160*450*30mm) Double-sided Solar panel
