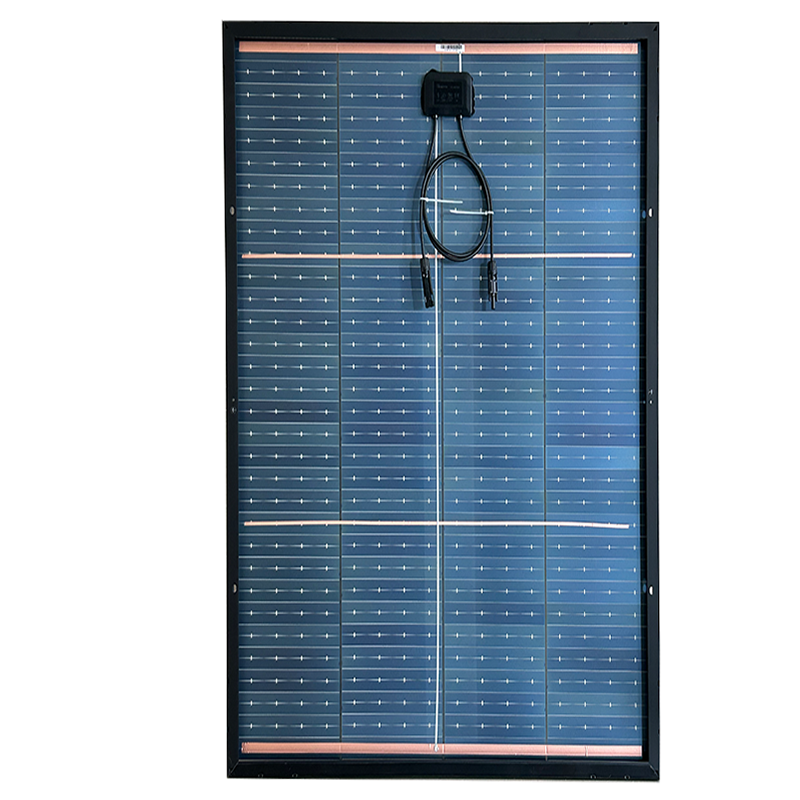

180W (1230*705*30mm) Double-sided-Solar panel
Nominal Power 180W
Maximum Power Current 8.36A
Maximum Power Voltage 21.55V
Open-circuit Voltage 25.62V
Short-circuit Current 8.86A
Maximum System Voltage 500V
Output Tolerance 0~+3%
Cable (MC4) 700mm / 2.5mm²
Module Structure Aluminum Frame / Glass / EVA /Backsheet
Junction box rating ≥IP67
Cell 166*31.4–38*4
Working Temperature -40~+80℃
Module Dimensions 1230*705*30mm
Weight(Net /Gross) 9.0/10.3kg
1. The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
2. Double-sided solar panels greatly increase the power of the components.
3. Using tempered glass, high transparency.
4. Anti-corrosion EVA effectively protects the battery panel.
5. Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
6. Lightweight and flexible features can make it seamlessly integrated into your vehicle.
7. Packed in a single carton, with protective corners on all four corners.
8. OEM and ODM supported.
