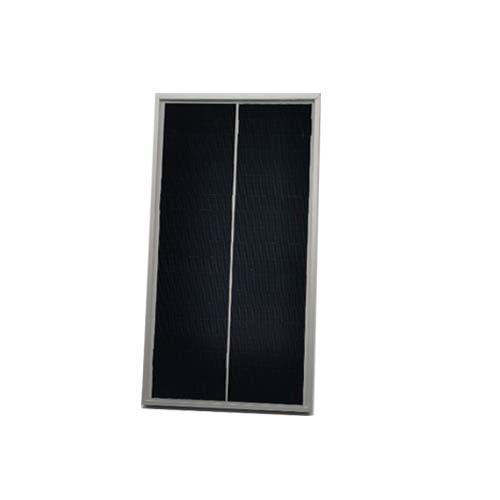

30W Mono Rigid Solar Panel


Advantages:

  • The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
  • Using tempered glass, high transparency.
  • Anti-corrosion EVA effectively protects the battery panel.
  • Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
  • Lightweight and flexible features can make it seamlessly integrated into your vehicle.
  • Packed in a single carton, with protective corners on all four corners.
  • OEM and ODM supported.
6 βλέπουν το προϊόν αυτό τώρα!
Κωδικός προϊόντος: SZ-30 Κατηγορία:
Περιγραφή

Nominal Power 30W
Cell Efficiency 22%
Maximum Power Current 1.56A
Maximum Power Voltage 19.28V
Open-circuit Voltage 22.92V
Short-circuit Current 1.65A
Maximum System Voltage 500V
Output Tolerance 0~+3%
Module Structure Aluminum Frame / Glass / EVA /Backsheet
Junction box rating ≥IP67
Cell 158.75*29.9–17*2
Working Temperature -40~+80℃
Module Dimensions 540*350*25mm
Weight(Net /Gross) 2.1/2.3kg
