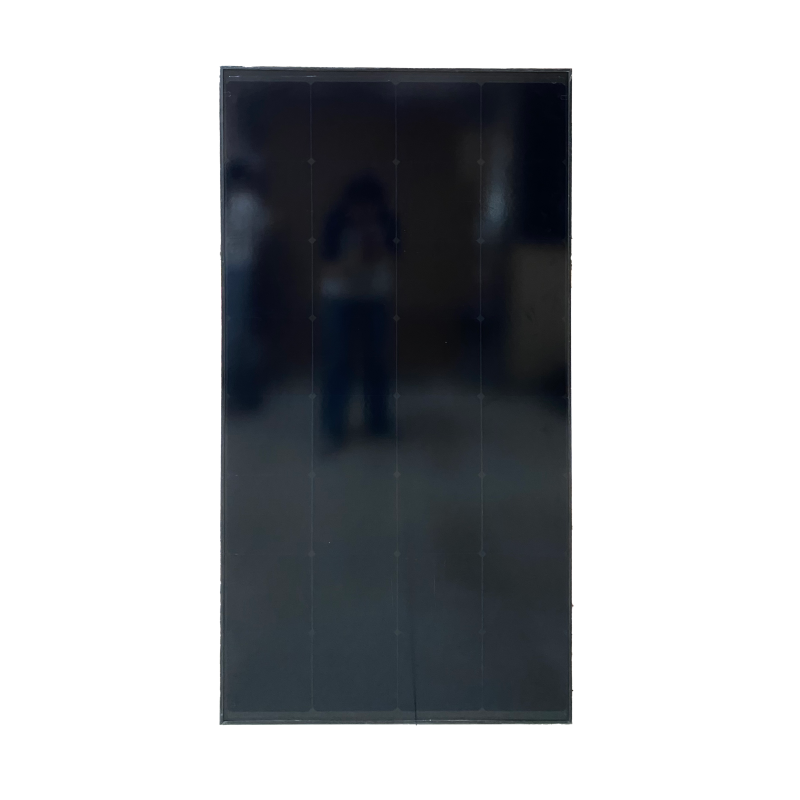

240W BC solar panel

Nominal Power 240W
Cell Efficiency ＞25%
Maximum Power Current 11.82A
Maximum Power Voltage 20.32V
Open-circuit Voltage 23.20V
Short-circuit Current 12.53A
Maximum System Voltage 500V
Output Tolerance 0~+3%
Cable （MC4） 700mm / 2.5mm²
Module Structure Aluminum Frame / Glass / EVA /Backsheet
Junction box rating ≥IP67
Cell 182*91.875–16*4
Working Temperature -40~+85℃
Module Dimensions 1520*760*30mm
Weight（Net /Gross） 11.8/13.3kg
