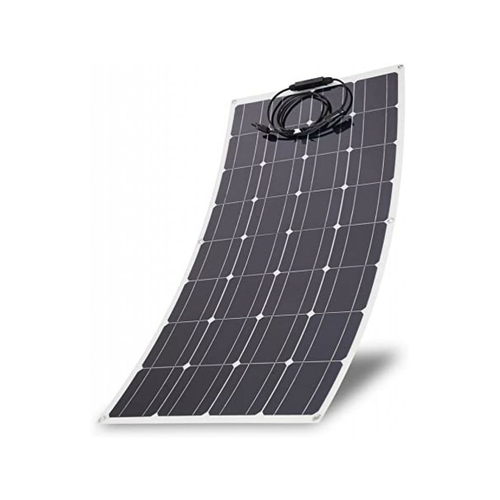

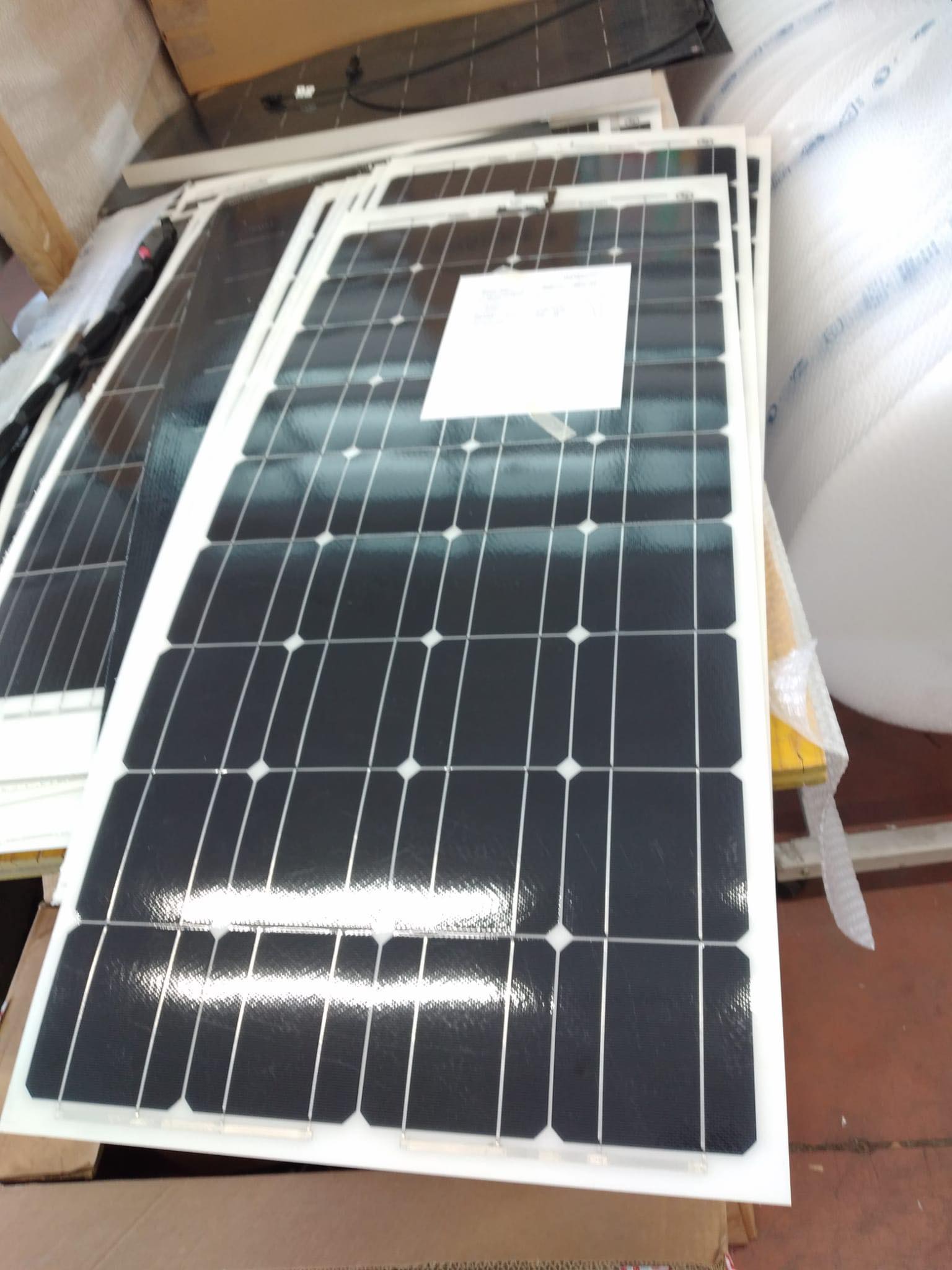

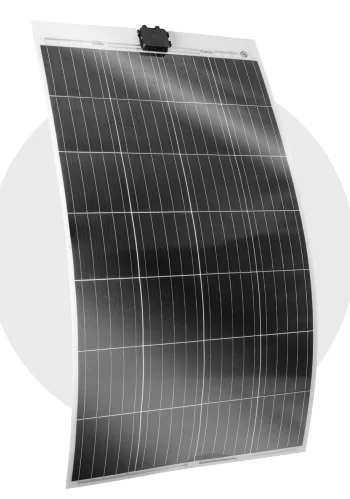

ENECOM HF140
Built with high-performance aerospace solar cells. Latest generation ultrathin and ultraflexible panels (1.7 mm). 17.25% mono-crystalline cell efficiency. The panel is a sandwich construction made up of a plastic support + solar cell + UV-resistant epoxy resin surface coating. Installation by means of double-sided tape. Connection cable with plug, included. Version A: mono-crystalline panels. Version B: fitted with Sun Power top-efficiency cells. This results in more compact dimensions and 23% higher efficiency over standard cells.
Διαθέσιμο κατόπιν παραγγελίας
Tolleranza (%) up to 5% only positive
Tensione a circuito aperto, Voc (V) 18,4
Corrente di corto circuito, Isc (A) 9,7
Tensione a Pmax, Vmp (V) 15,8
Corrente a Pmax, Imp (A) 9,2
Temperatura di funzionamento (°C) da -40 a +80
NOCT (°C) 47,5
Materiale del modulo UVA resistant Plastic Polymer
Dimensioni (b x h) (m) 0,671 x 1,215 (bordo lat. 15 mm)
Spessore (mm) 1,7
Peso (kg) 2,0
Tensione massima di sistema (V) 600
Celle fotovoltaiche n.28 m-Si 158,75×158,75 5BB
Terminali di uscita 1m Cables with MC4 connectors
Diodo di bypass (A) 2 inside JB, 12A
| Βάρος | 2 κ. |
|---|---|
| Διαστάσεις | 1350 × 660 × 2 cm |
