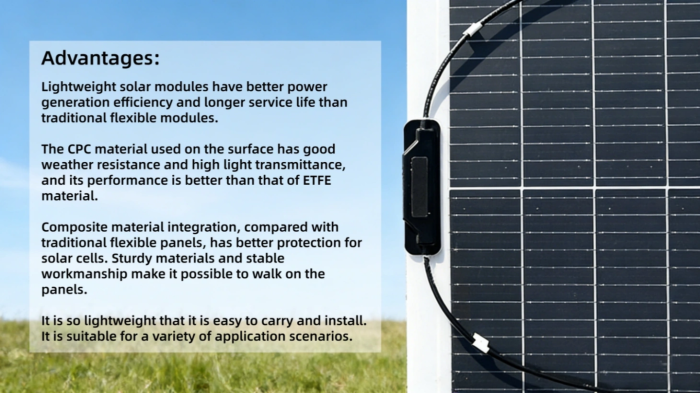

TOPCon-N-180W (1270*790*2mm) CPC Semi-Flexible Solar Panel
Dimensions : 1270x790x2mm
Weight : 3.9 kg
Nominal Power: 180W
Maximum Power Voltage: 22.04V
8
βλέπουν το προϊόν αυτό τώρα!
Περιγραφή
| Nominal Power | 180W |
| Maximum Power Current | 8.17A |
| Maximum Power Voltage | 22.04V |
| Open-circuit Voltage | 25.84V |
| Short-circuit Current | 8.66A |
| Maximum System Voltage | 200V |
| Output Tolerance | 0~+3% |
| Cable （MC4） | 900mm / 2.5mm² |
| Module Structure | CPC / EVA / Backsheet |
| Junction box rating | ≥IP67 |
| Cell | 182*60.6–19*4 |
| Working Temperature | -20℃~+65℃ |
| Module Dimensions | 1270*790*2mm |
| Weight（Net /Gross） | 3.9/5.2kg |
Επιπλέον πληροφορίες
| Βάρος | 2 κ. |
|---|---|
| Διαστάσεις | 1350 × 660 × 2 cm |
