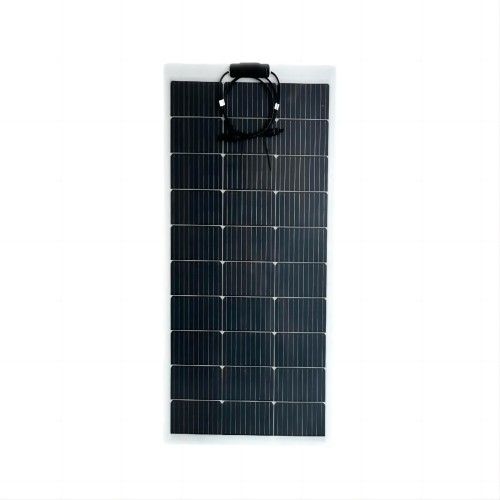

100W CPC semi-flexible solar panel
Original price was: 170,00€.120,00€Η τρέχουσα τιμή είναι: 120,00€.
150W CPC semi-flexible solar panel
Original price was: 235,00€.180,00€Η τρέχουσα τιμή είναι: 180,00€.
Nominal Power 140W
Cell Efficiency ≥22.5%
Maximum Power Current 6.19A
Maximum Power Voltage 22.62V
Open-circuit Voltage 26.52V
Short-circuit Current 6.57A
Maximum System Voltage 200V
Output Tolerance 0~+3%

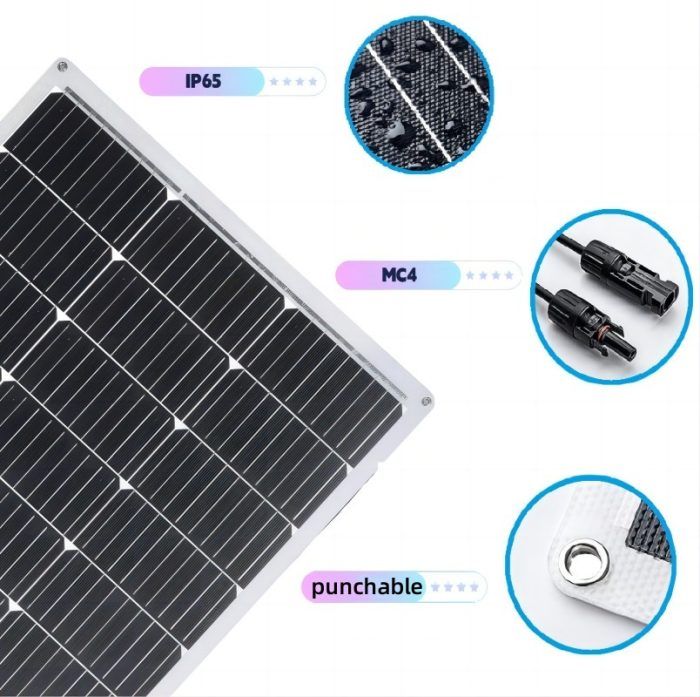

Cable （MC4） 900mm / 2.5mm²
Module Structure CPC / EVA / Backsheet
Junction box rating ≥IP67
Cell 182*91–13*3
Working Temperature -20℃~+65℃
Module Dimensions 1280*600*2mm
Weight（Net /Gross） 3.1/4.6kg
Επικοινωνήστε για διαθεσιμοτητα και τιμή προϊόντος σε ποσοτητες για χονδρικη πωληση.
Διαθέσιμο κατόπιν παραγγελίας
8
βλέπουν το προϊόν αυτό τώρα!
Περιγραφή

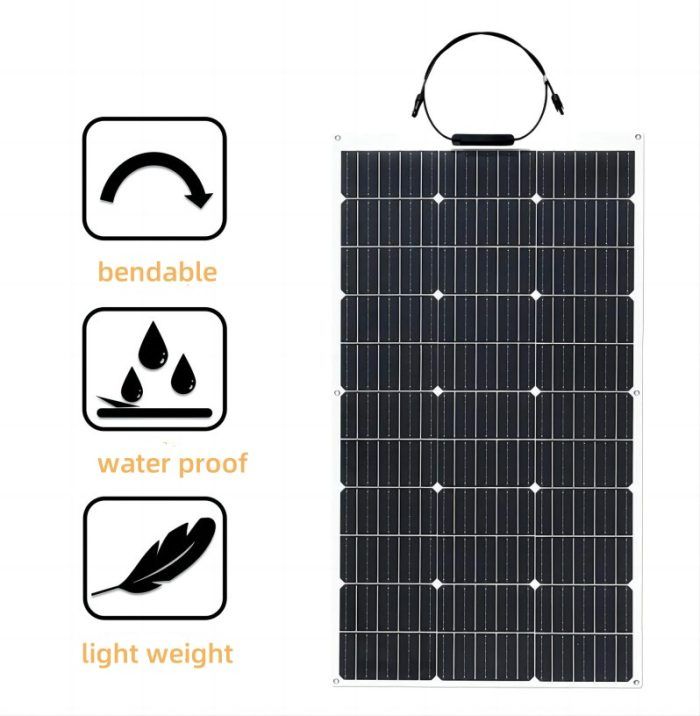

- Lightweight solar modules have better power generation efficiency and longer service life than traditional flexible modules.
- The CPC material used on the surface has good weather resistance and high light transmittance, and its performance is better than that of ETFE material.
- Composite material integration, compared with traditional flexible panels, has better protection for solar cells. Sturdy materials and stable workmanship make it possible to walk on the panels.

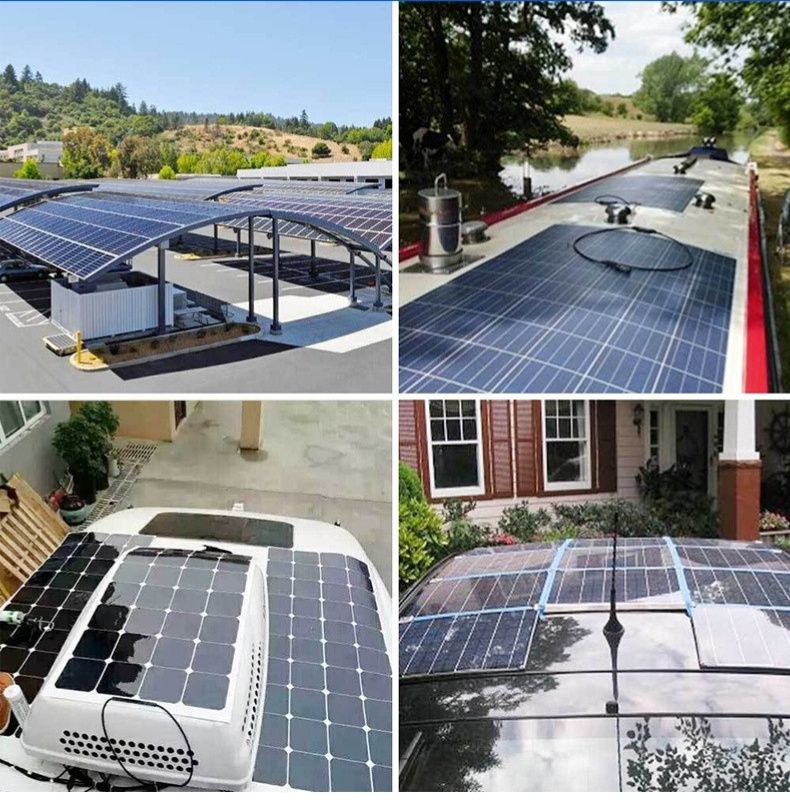

- It is so lightweight that it is easy to carry and install. It is suitable for a variety of application scenarios.
