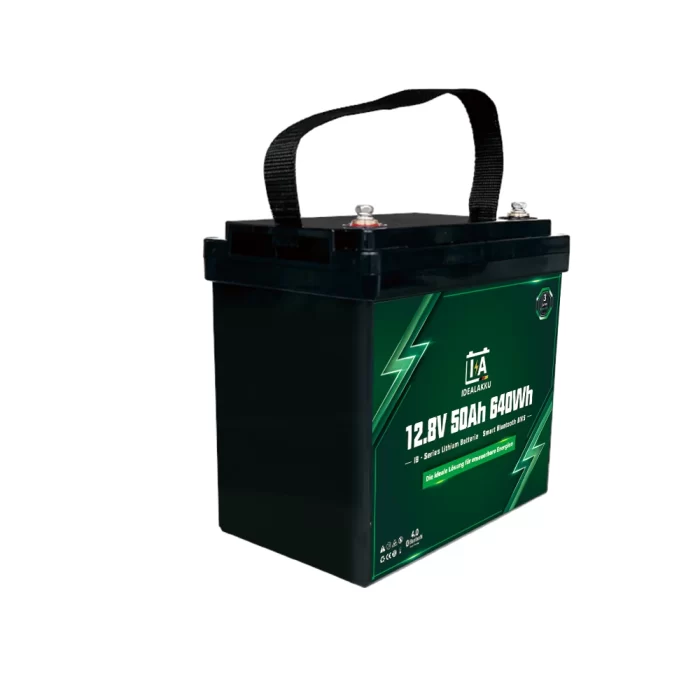

Idealakku IB series LiFePO4 battery 12 V 50 Ah with Smart-BMS and Bluetooth
- 3-year warranty: Reliable, high-quality batteries for motorhomes, solar, boats and off-grid applications.
- Prismatic Grade A cells: High energy density, stable LiFePO4 technology and long lifespan
- 80 A maximum continuous discharge current: Strong power reserve for inverters and demanding consumers
- Battery management system (BMS) with Bluetooth: App available in the App Store and on Google Play
- Compact & powerful: 5.7 kg | 228 x 145 x 208 mm
- Direct replacement: Replaces 12.8V/100Ah lead-acid, gel, or AGM batteries at a significantly lower weight.
- Flexible application: Ideal for energy storage, solar, marine and high-performance DC systems
Technical worksheet
Downloads in other languages →
Model 12.8V 50Ah/640Wh
Replaces lead-acid, gel or AGM batteries 12.8 V/100 Ah
Cell type Prismatic cell
Dimensions including poles (L × W × H) 228 x 145 x 208 mm
Weight (without accessories) 5.7 kg
Cycle life > 6000 @ 80 % DoD
Internal resistance ≤7 mΩ
Recommended charging voltage 14.6 V
Maintenance charging voltage (float) 13.8 ± 0.8 V
Recommended charging current 10 A
Max. charging current 25 A
Continuous discharge current 80 A
Peak discharge current (shutdown) 300 A (200~500ms)
Operating voltage range 10 – 14.6 V
discharge cut-off voltage 10 – 11.2 V
Polarity connection M6
Protection class IP65
Charging temperature 0~45 °C
discharge temperature -20~75 °C
Storage temperature -5 to 35 °C
Storage instructions Recharge every 3 months during storage
Series and parallel circuits Maximum 4 pieces in series and 4 pieces in parallel connection
Certifications CE, UN38.3, RoHS; Dangerous goods UN 3480, Class 9; Safety data sheet available
