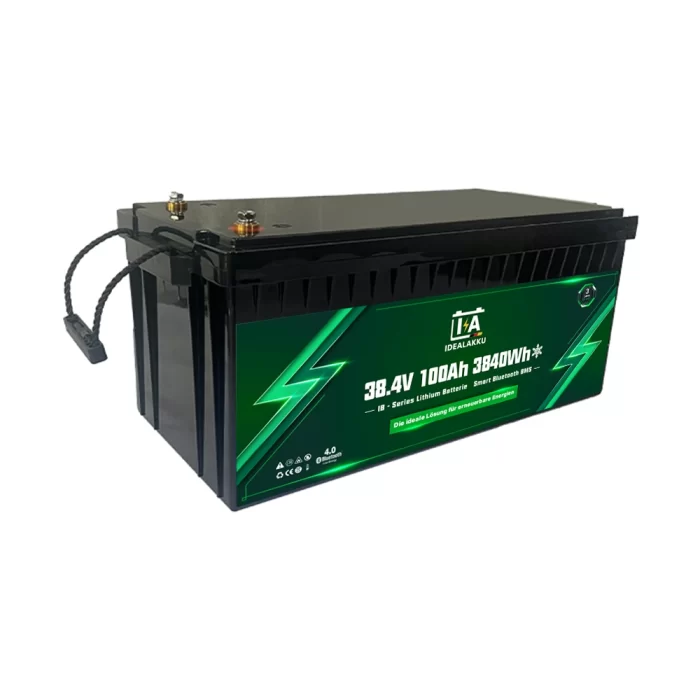

IB-Series LiFePO4 battery 36V 100Ah with Smart-BMS, Bluetooth and heating
- Integrated heating film: Can be used even at arctic temperatures down to -35°C
- 3-year warranty: Reliable IdealAkku quality for motorhome, solar, boat and off-grid applications.
- Prismatic Grade-A cells: High energy density, stable LiFePO4 technology and long lifespan
- 150 A maximum continuous discharge current: Strong power reserve for inverters and demanding consumers
- Smart BMS with Bluetooth: App available in the Apple Store and on Google Play
- Compact & powerful: 31.25 kg | 522 x 240 x 218 mm
- Direct replacement: Replaces 38.4 V/200 Ah lead-acid gel AGM batteries at a significantly lower weight.
- Flexible application: Ideal for energy storage, solar, marine and high-performance DC systems
8
βλέπουν το προϊόν αυτό τώρα!
Περιγραφή
| Model | 38.4V 100Ah/3840Wh |
| Replaces lead-acid gel AGM battery | 38.4 V/200 Ah |
| Cell type | Prismatic cell |
| Dimensions including clamps (L x W x H) | 522 x 240 x 218 mm |
| Weight (without accessories) | 31.25 kg |
| menstrual cycle | >6000@80%DoD |
| Internal resistance | ≤10 mΩ |
| Recommended charging voltage | 43.8 V |
| Maintenance charging voltage (standby) | 27.6 V±0.8 V |
| Recommended charging current | 20 A |
| Max. charging current | 50 A |
| Continuous discharge current | 150 A |
| Peak discharge cutoff current | 500 A±60 A(250±1000mS) |
| Operating voltage range | 30 – 43.8 V |
| End of the discharge voltage range | 30-33.6 V |
| Terminal type | M8 |
| Protection class | IP65 |
| Charging temperature | 0~50 °C |
| Discharge temperature | -20~75 °C |
| Storage temperature | -5 to 35 °C |
| Heating operating temperature | -35 to 5 °C |
| Storage condition | Charge the battery every 3 months |
| Series and parallel availability | 36 V installation, maximum 2 pcs in parallel only |
| Certifications | CE /UL /UN38.3 /MSDS /ROHS UN 3480 /CLASS 9 |
