IA-Series LiFePO4 Battery 12V 100Ah Mini Motorhome Under-Seat Battery with Smart-BMS and Bluetooth
- MINI design: Compact format for limited installation space with high usable energy
- 3-year warranty: Reliable IdealAkku quality for motorhome, solar, boat and off-grid applications.
- Prismatic Grade-A cells: High energy density, stable LiFePO4 technology and long lifespan
- 100 A maximum continuous discharge current: Strong power reserve for inverters and demanding consumers
- Smart BMS with Bluetooth: App available in the Apple Store and on Google Play
- Compact & powerful: 9.15 kg | 228 x 145 x 208 mm
- Direct replacement: Replaces 12.8 V/200 Ah lead-acid gel AGM batteries at a significantly lower weight.
- Flexible application: Ideal for energy storage, solar, marine and high-performance DC systems
9
βλέπουν το προϊόν αυτό τώρα!
Περιγραφή
| Model | 12.8V 100Ah/1280Wh |
| Replaces lead-acid gel AGM battery | 12 V/200 Ah |
| Cell type | Prismatic cell |
| Dimensions including clamps (L x W x H) | 228 x 145 x 208 mm |
| Weight (without accessories) | 9.15 kg |
| menstrual cycle | >6000@80%DoD |
| Internal resistance | ≤7 mΩ @ 50% SOC |
| Recommended charging voltage | 14.6 V |
| Maintenance charging voltage (standby) | 13.8±0.8 V |
| Recommended charging current | 20 A |
| Max. charging current | 50 A |
| Continuous discharge current | 100 A |
| Peak discharge cutoff current | 300 A (200~500ms) |
| Operating voltage range | 10 – 14.6 V |
| End of the discharge voltage range | 10 – 11.2 V |

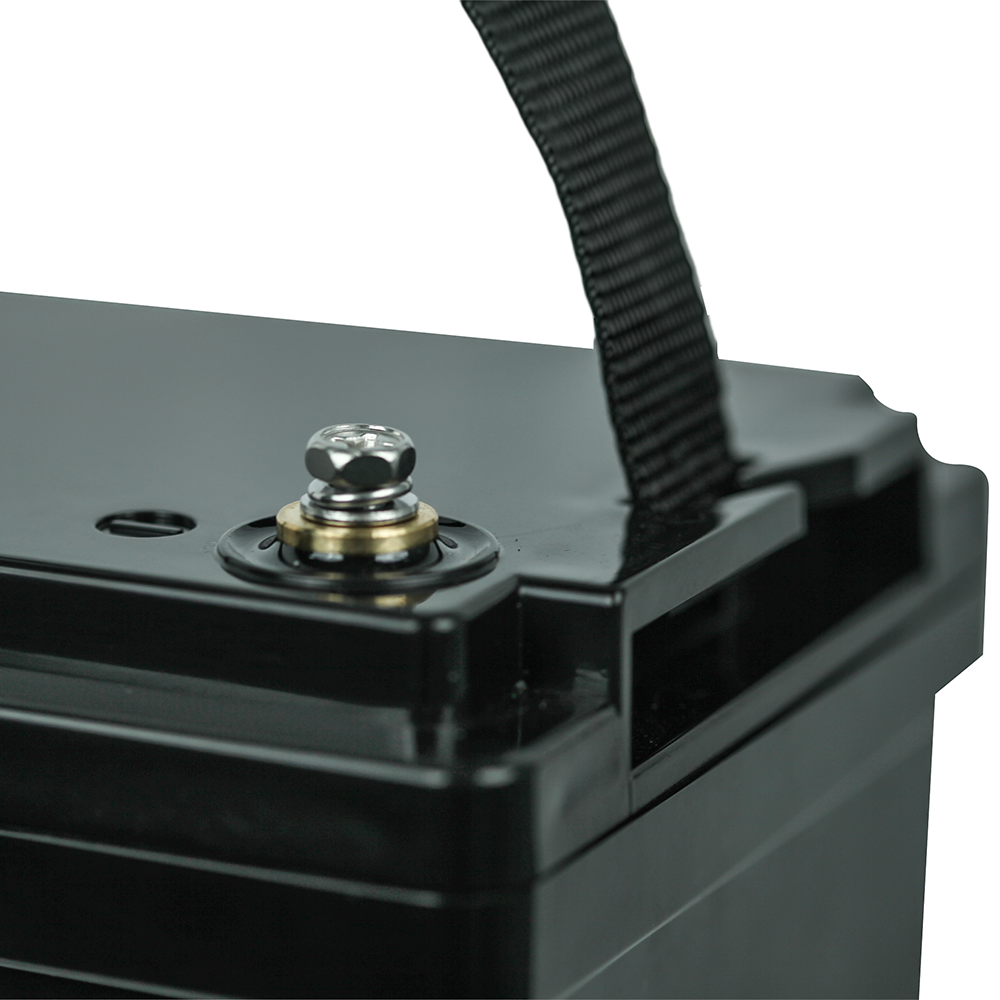

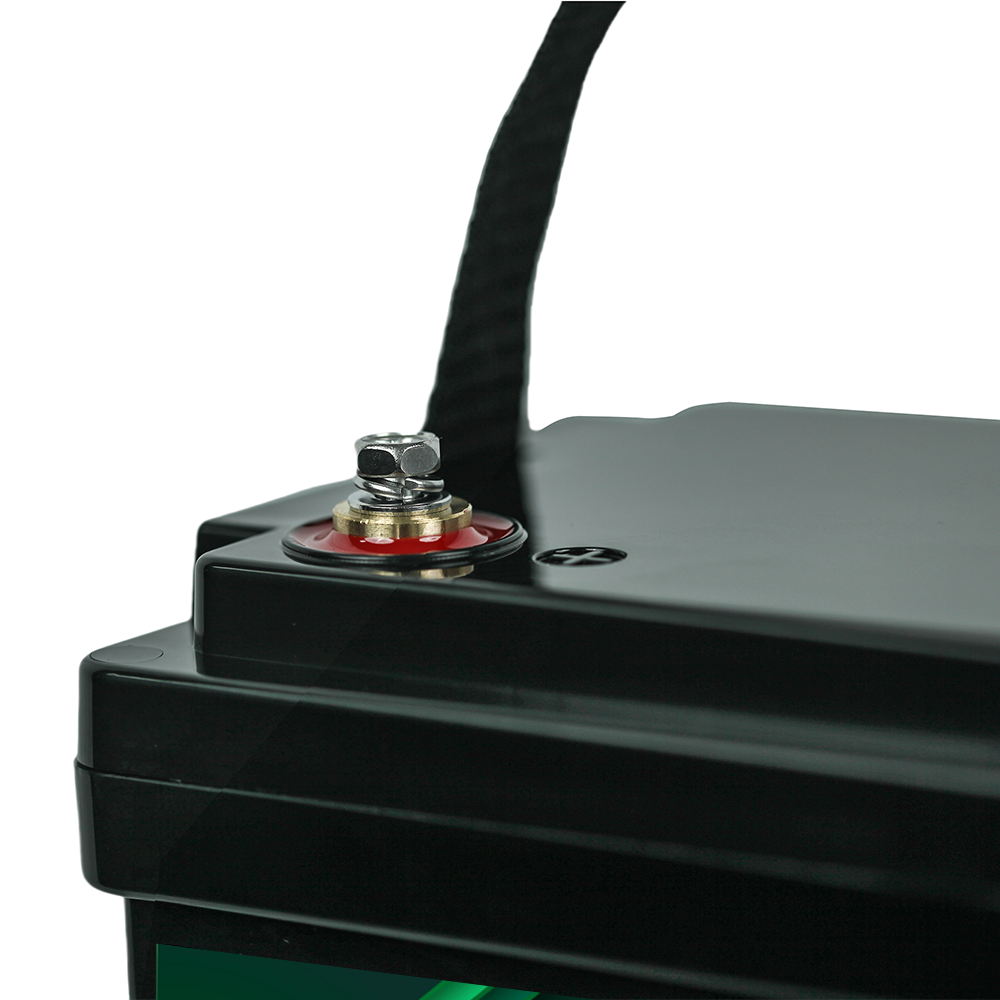

| Terminal type | M6 Pole |
| Protection class | IP65 |
| Charging temperature | 0~50 °C |
| Discharge temperature | -20~75 °C |
| Storage temperature | -5 to 35 °C |
| Storage condition | Charge the battery every 3 months |
| Series and parallel availability | Maximum 4 pieces in series and 4 pieces in parallel connection |
| Certifications | CE /UL /UN38.3 /MSDS /ROHS UN 3480 /CLASS 9 |
