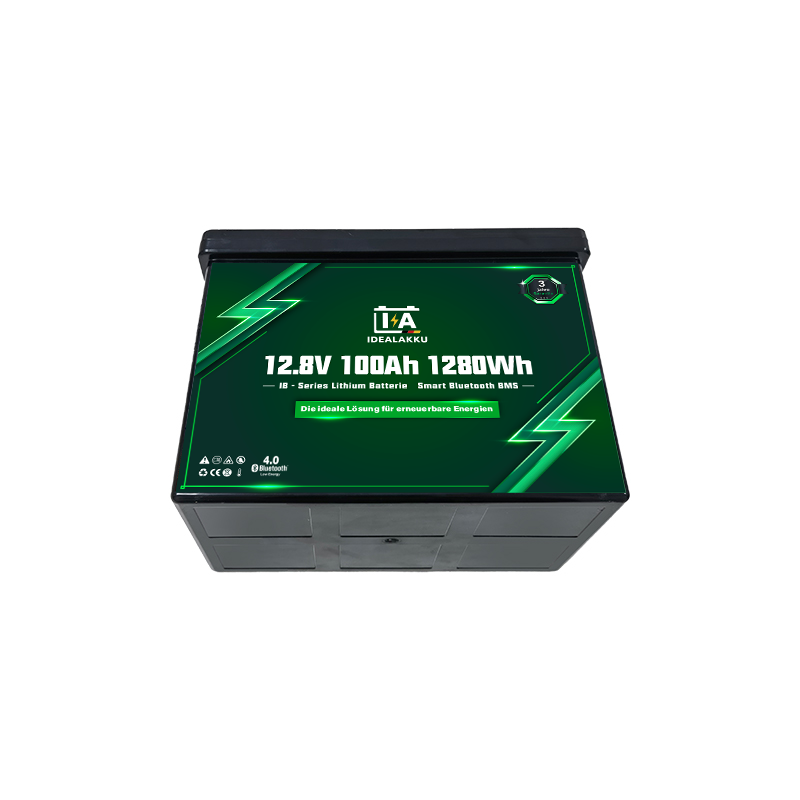

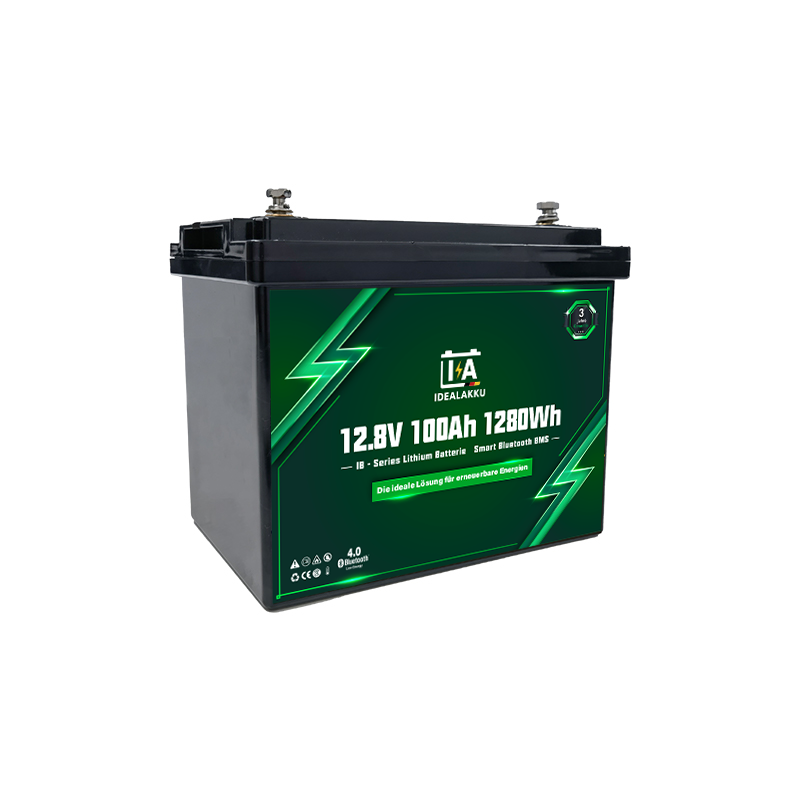

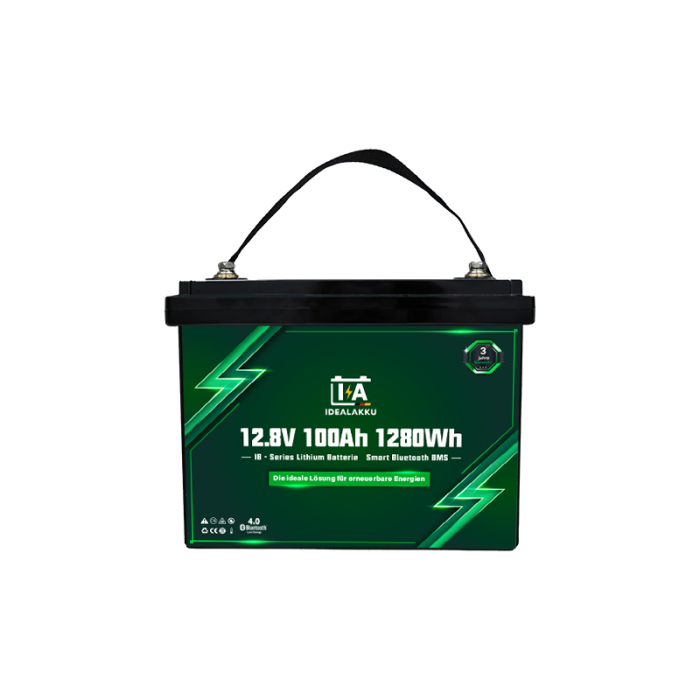

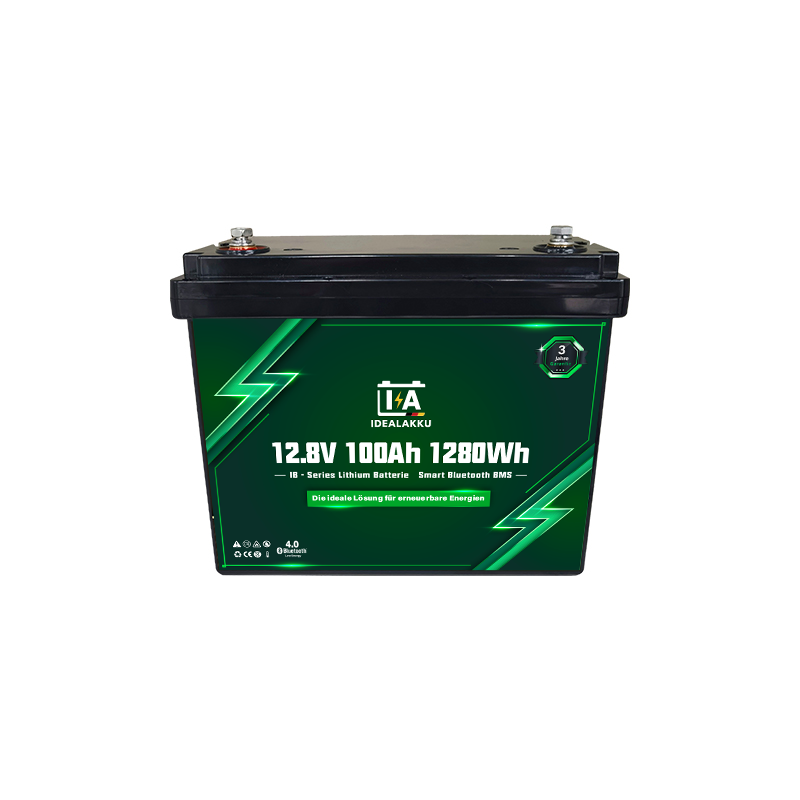

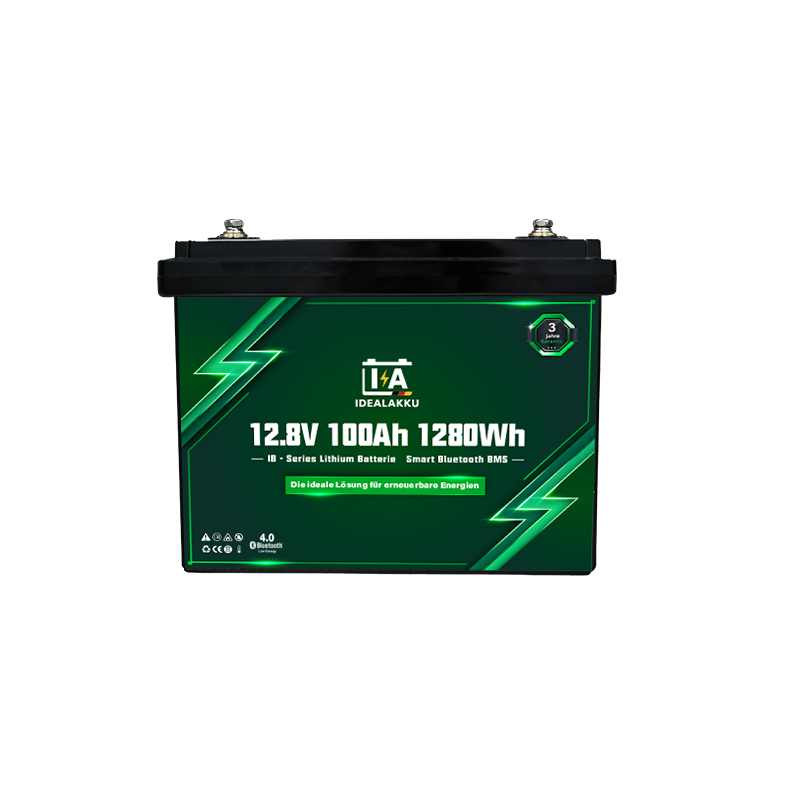

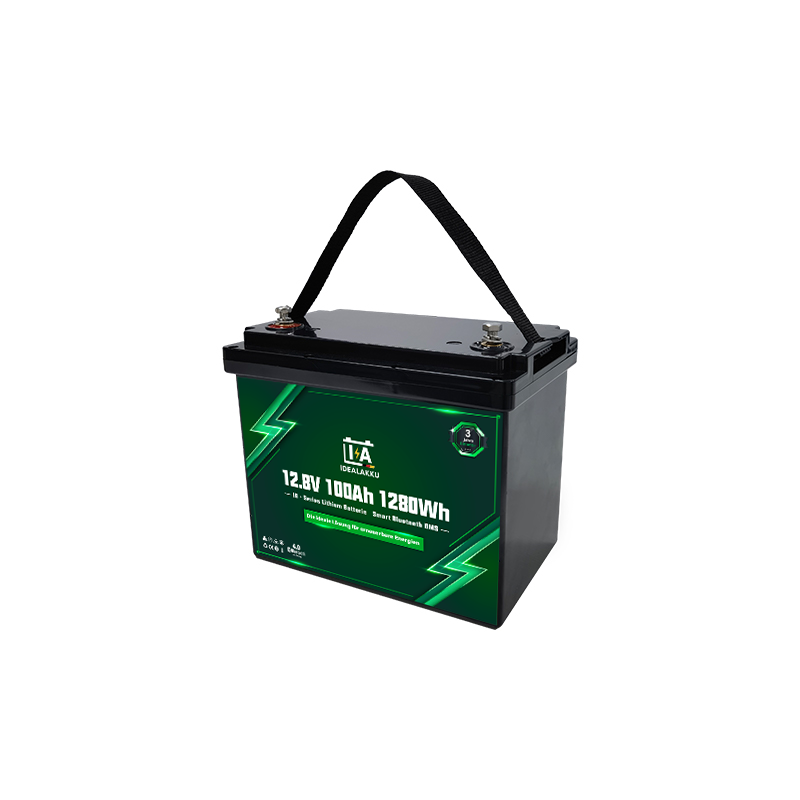

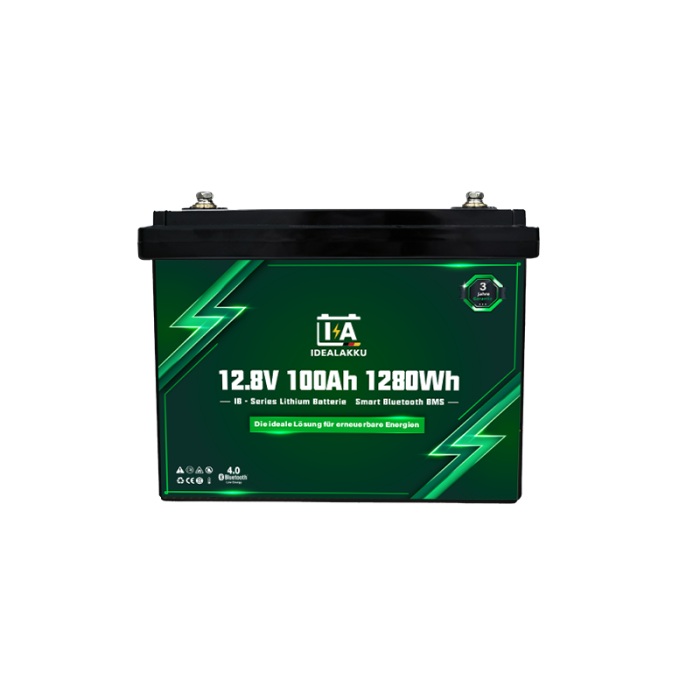

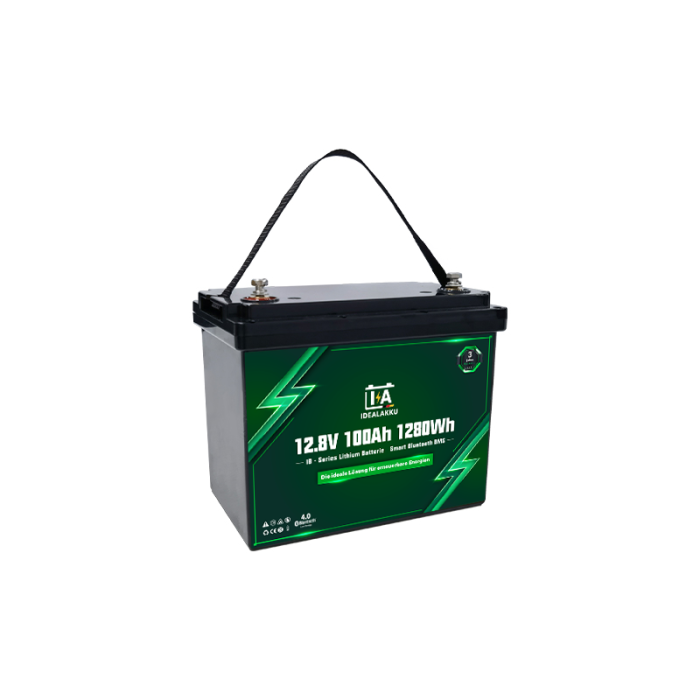

IdealakkuIB series LiFePO4 battery 12 V 100 Ah with Smart-BMS, Bluetooth and heating
- 3-year warranty: Reliable, high-quality batteries for motorhomes, solar, boats and off-grid applications.
- Prismatic Grade A cells: High energy density, stable LiFePO4 technology and long lifespan
- 150 A maximum continuous discharge current: Strong power reserve for inverters and demanding consumers
- Battery management system (BMS) with Bluetooth: App available in the App Store and on Google Play
- Compact & powerful: 9.9 kg | 260 x 170 x 210 mm
- Direct replacement: Replaces 12.8V/200Ah lead-acid, gel, or AGM batteries at a significantly lower weight.
- Flexible application: Ideal for energy storage, solar, marine and high-performance DC systems
-
Price on request
Advantages
3-year warranty
Replacement for lead-acid, gel and AGM batteries
Lighter weight and easier handling
Stable lithium iron phosphate (LiFePO4) technology
High load capacity
No memory effect
High charging efficiency with regular use
Over 6000 cycles at 80% depth of discharge
Durable modular design
ELECTRIC HEATING FILM
Integrated heating
The integrated heating module supports battery operation at low temperatures according to the technical specifications of the respective model.
The heating film distributes the heat evenly.
The battery management system (BMS) controls the heating film to limit unnecessary energy consumption.
BATTERY MANAGEMENT SYSTEM (BMS)
The BMS monitors the battery cells and protects them from overload and overvoltage, among other things.
INTEGRATED BLUETOOTH 4.0
Monitoring multiple batteries
The JBD battery management system (BMS) can monitor up to 8 batteries simultaneously.
The app displays the charge level, voltage, current, and temperature of the connected batteries.
Model 12.8V 100Ah/1280Wh
Replaces lead-acid, gel or AGM batteries 12.8 V/200 Ah
Cell type Prismatic cell
Dimensions including poles (L × W × H) 260 x 170 x 210 mm
Weight (without accessories) 9.9 kg
Cycle life > 6000 @ 80 % DoD
Internal resistance ≤7 mΩ
Recommended charging voltage 14.6 V
Maintenance charging voltage (float) 13.8 ± 0.8 V
Recommended charging current 30 A
Max. charging current 50 A
Continuous discharge current 150 A
Peak discharge current (shutdown) 450 A (200~500ms)
Operating voltage range 10 – 14.6 V
discharge cut-off voltage 10 – 11.2 V

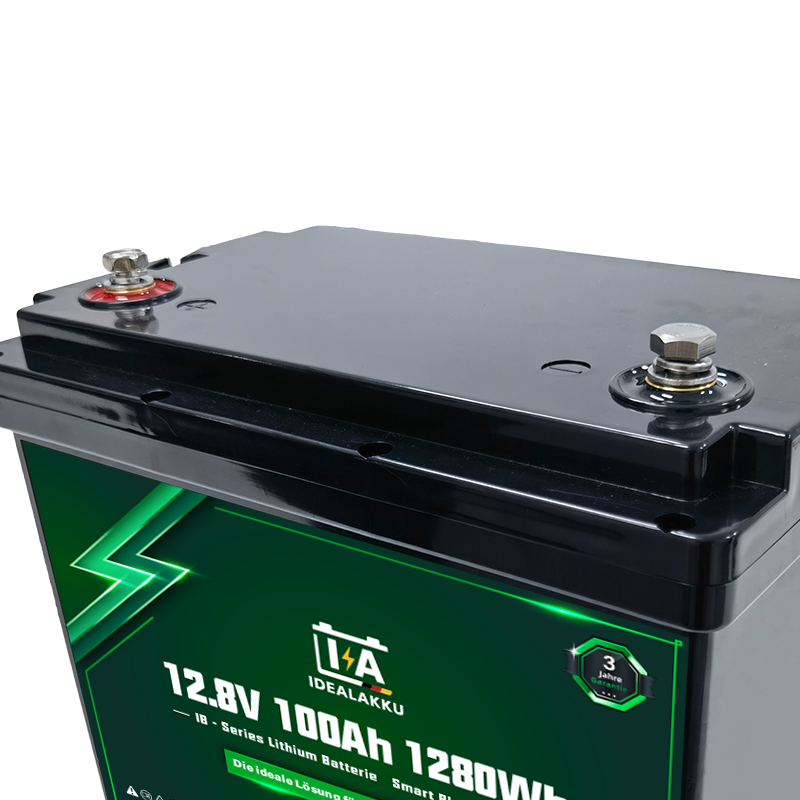

Polarity connection M8
Protection class IP65
Charging temperature 0~50 °C
discharge temperature -20~75 °C
Storage temperature -5 to 35 °C
Storage instructions Recharge every 3 months during storage
Series and parallel circuits Maximum 4 pieces in series and 4 pieces in parallel connection
Certifications CE,UL, UN38.3, MSDS, RoHS, UN 3480, Class 9; ECE R10
