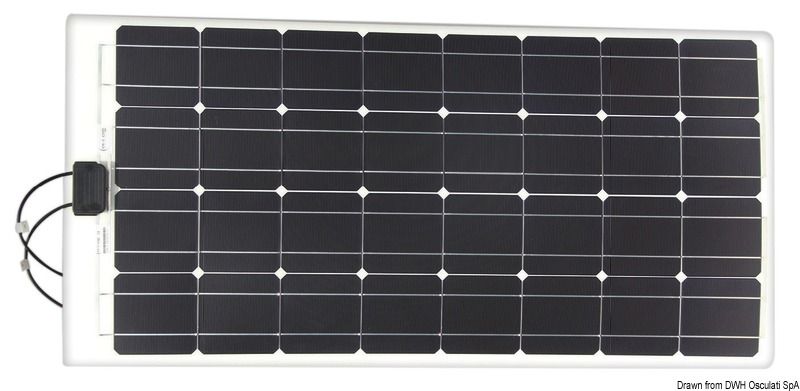

ENECOM HF100-5-19
Constructed with high-performance aerospace solar cells. These are ultra-thin, only 1.7 mm, and ultra-flexible latest generation panels. Mono cell efficiency 17.25%. The panel consists of a sandwich made of a plastic support + solar cells + a UV-resistant epoxy resin surface coating. Fixing is done using double-sided tape. Connection cable with MC4 plug included.
Version A: mono-crystalline panels.
Version B: fitted with Sun Power top-efficiency cells. This results in more compact dimensions and 23% higher efficiency over standard cells.
Type Monocrystalline
Model No. HF 100
Power Tolerance 0 ~ +5 %
Electrical Data at STC Maximum Power (Pmax) 100 Wp
Voltage at Maximum Power (Vmpp) 19.1 V
Current at Maximum Power (Impp) 5.3 A
Open Circuit Voltage (Voc) 22.7 V
Short Circuit Current (Isc) 5.7 A
Electrical Data at NOCT Temperature 47.5 °C
Operating Temperature Range -40 – 85 °C
Temperature Coefficient of Pmax -0.41 %/°C
Temperature Coefficient of Voc -0.31 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum System Voltage 600 V
Panel Dimension (H/W/D) 1231x536x1.7 mm
Weight 1.6 kg
Frame Type Frameless
Junction Box Diodes 2
Connector Type MC4
Cable Length 1000 mm
