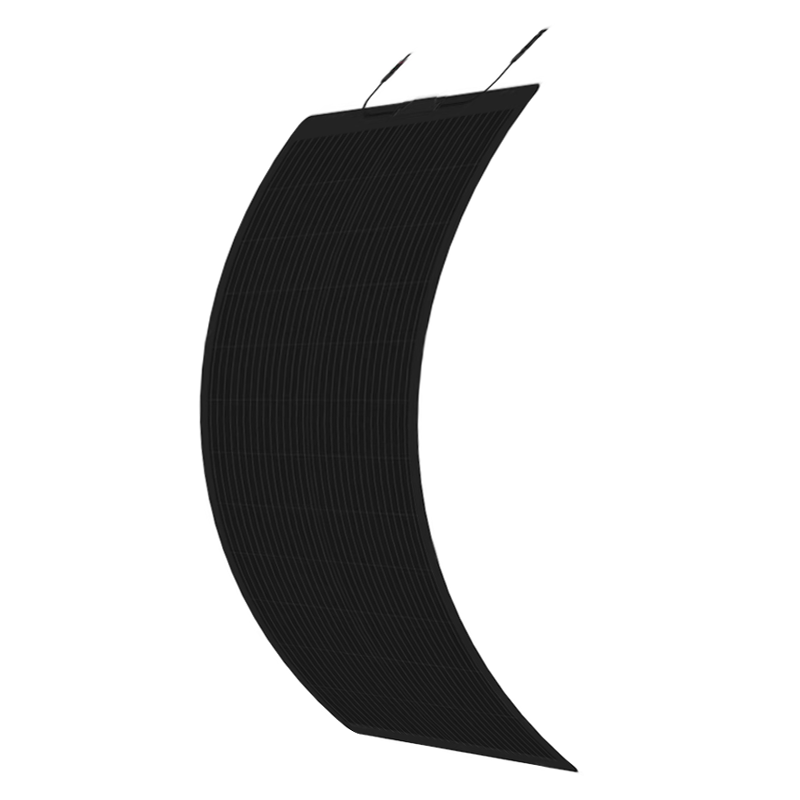

CPC Semi-Flexible Solar Panel 100W
Lightweight solar modules have better power generation efficiency and longer service life than traditional flexible modules.
The CPC material used on the surface has good weather resistance and high light transmittance, and its performance is better than that of ETFE material.
Composite material integration, compared with traditional flexible panels, has better protection for solar cells. Sturdy materials and stable workmanship make it possible to walk on the panels.
It is so lightweight that it is easy to carry and install. It is suitable for a variety of application scenarios
Επικοινωνήστε για διαθεσιμοτητα και τιμή προϊόντος σε ποσοτητες για χονδρικη πωληση.
Nominal Power 100W
Maximum Power Current 5.39A
Maximum Power Voltage 18.56V
Open-circuit Voltage 21.76V
Short-circuit Current 5.72A
Maximum System Voltage 200V
Output Tolerance 0~+3%
Cable （MC4） 900mm / 2.5mm²
Module Structure CPC / EVA / Backsheet
Junction box rating ≥IP67
Cell 210*70–16*2
Working Temperature -20℃~+65℃
Module Dimensions 1230*470*2mm
Weight（Net /Gross） 2.3/3.2kg
| Βάρος | 1,1 κ. |
|---|---|
| Διαστάσεις | 668 × 834 cm |
