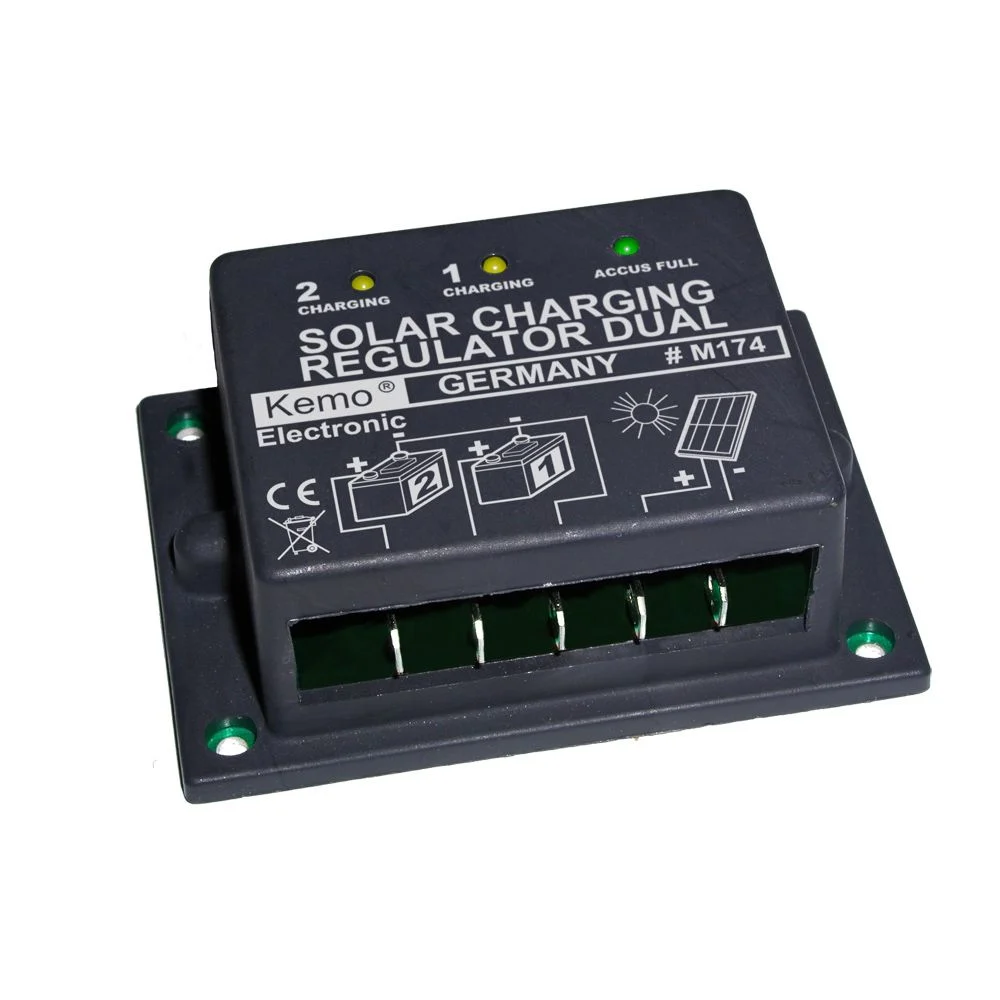

Solar Charge Controller Dual 16A

Technical Data:
Input voltage: Solar panels 15 – 30V DC no-load voltage; 12V DC nominal voltage
Max. Charging current: 16A total (2 accumulators each with max. 8A or 1 accumulator which is parallel-connected to both outputs up to 16A)

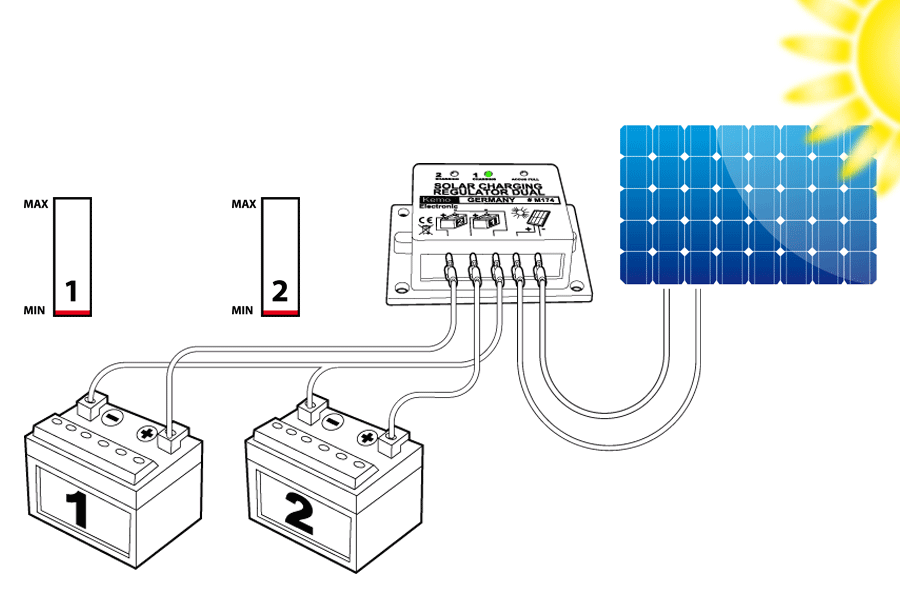

Connections: 1 or 2 accumulators 12V. If there is only one both connectors are parallel-linked to the accumulator.
Displays: 1 display for each accumulator (“accumulator charging” and “all accumulators fully charged)
Cooling: At a current of >4A the module has to be attached with the metal bottom side to a cooling element with a surface of more than 300cm²
Fuse: a prelemanry fuse F16A is needed (not included)
Switch-on voltage: accumulator ca. <12,9V DC (+/- 5%)
Switch-off voltage: “fully charged” ca. 14,2V DC (+/- %5)
Consumption: <2mA
No current reflow
Dimensions: 87 x 60 x 33mm (with mounting panel)
