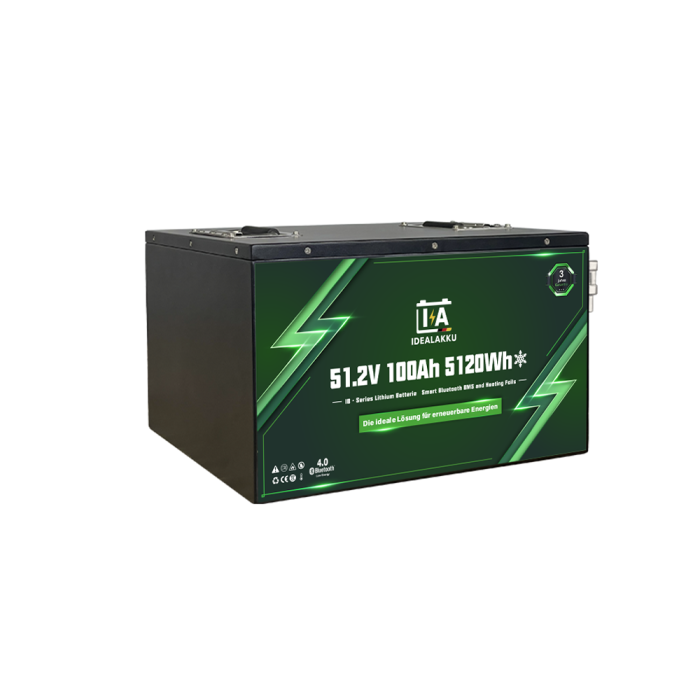

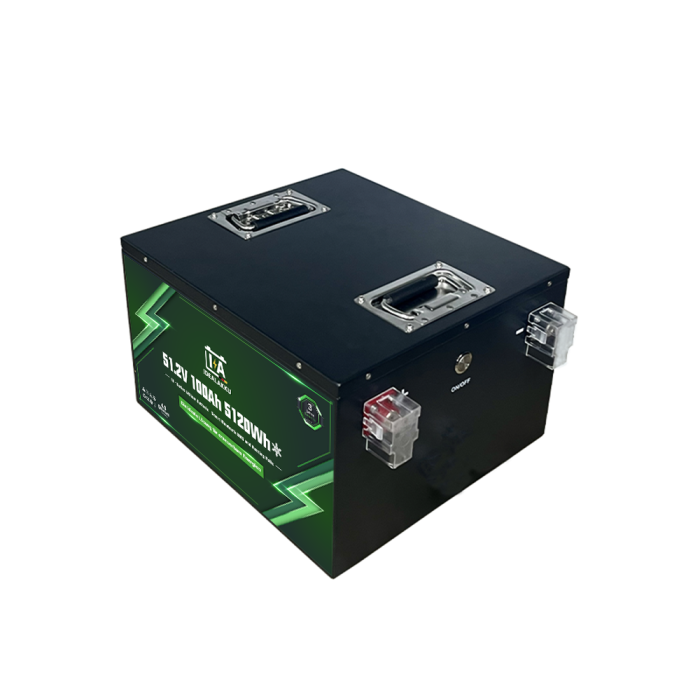

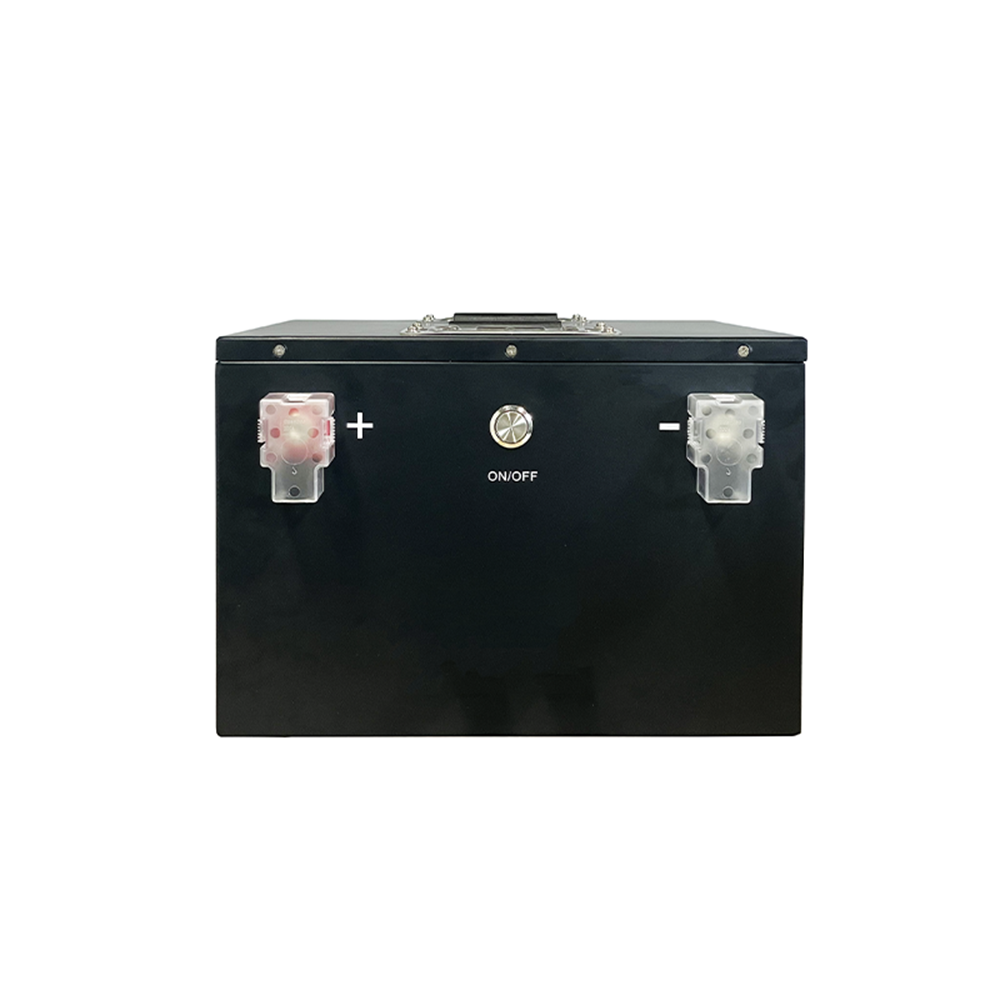

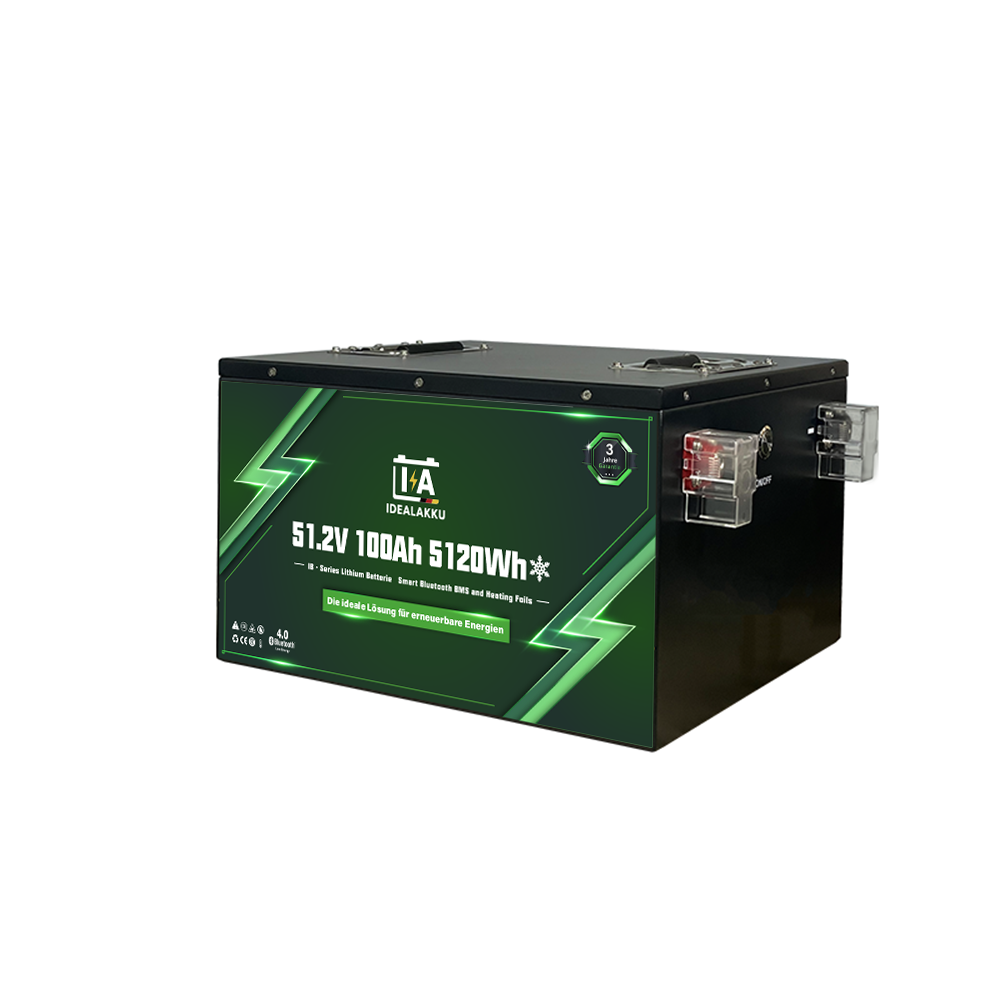

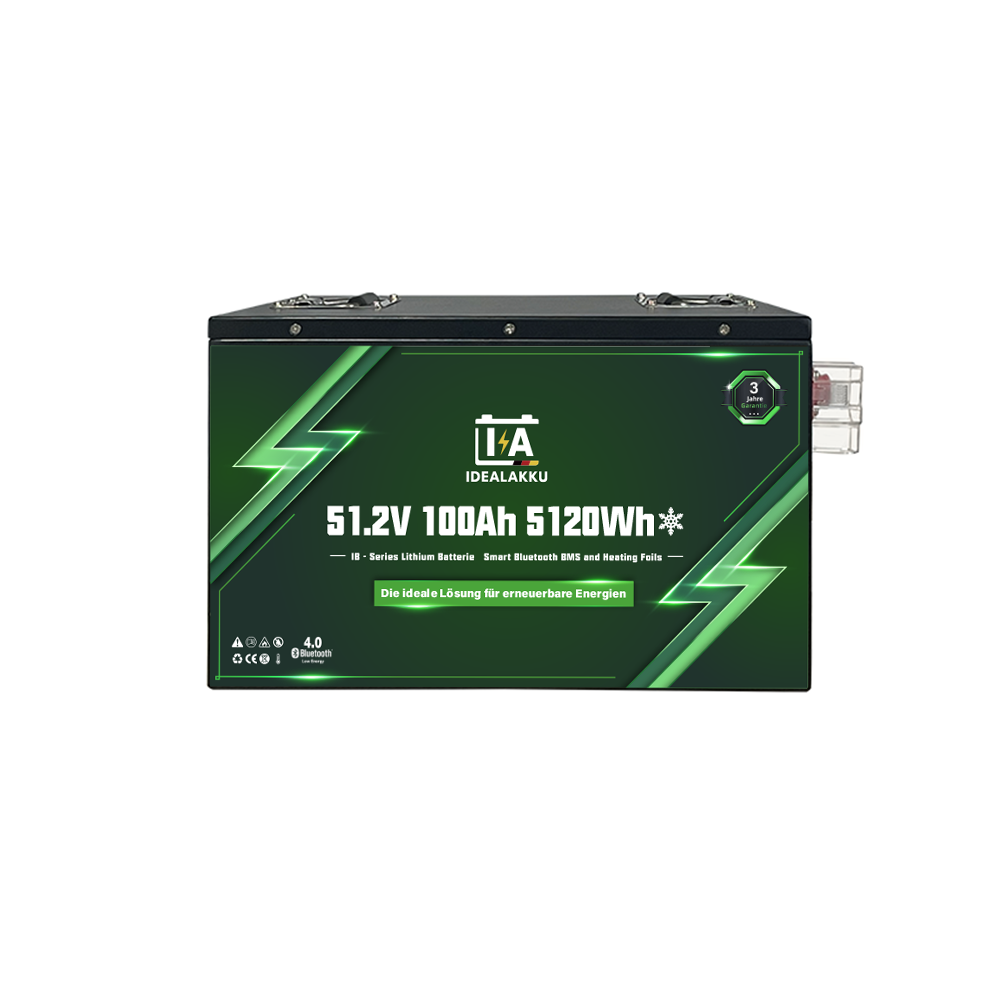

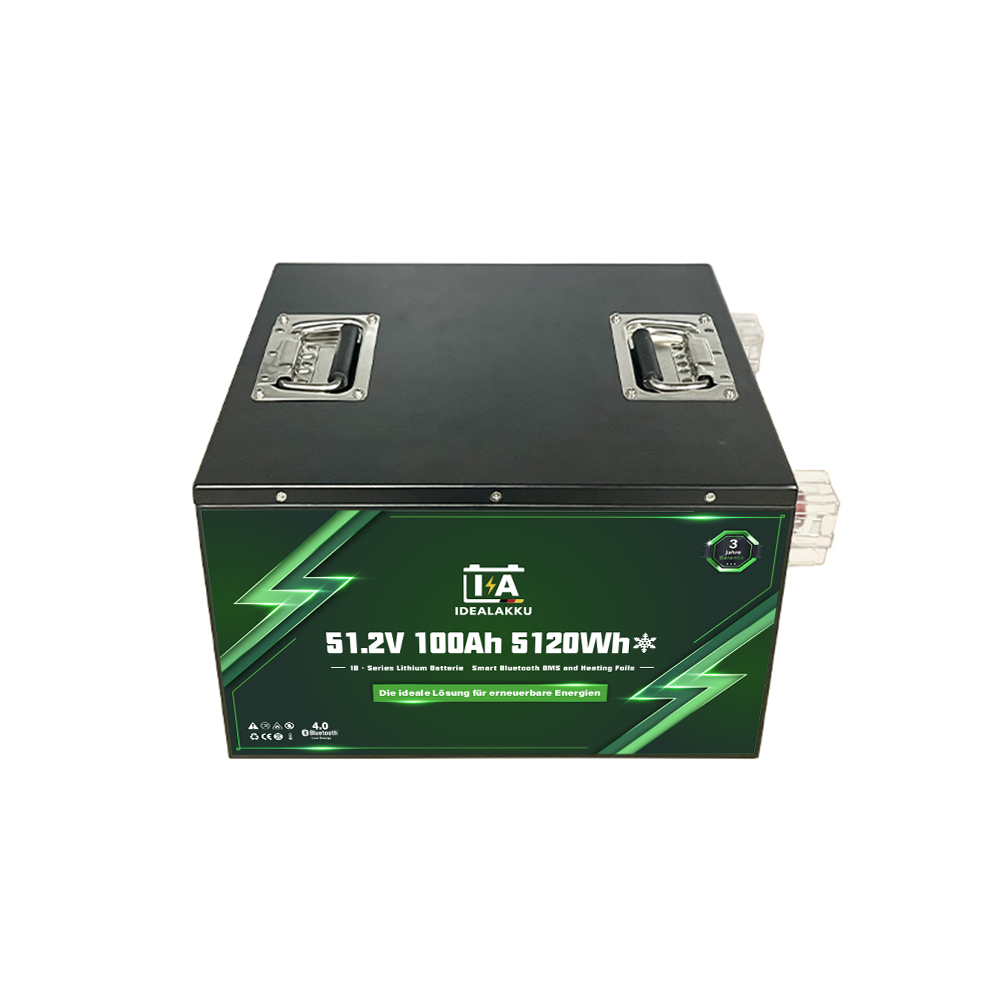

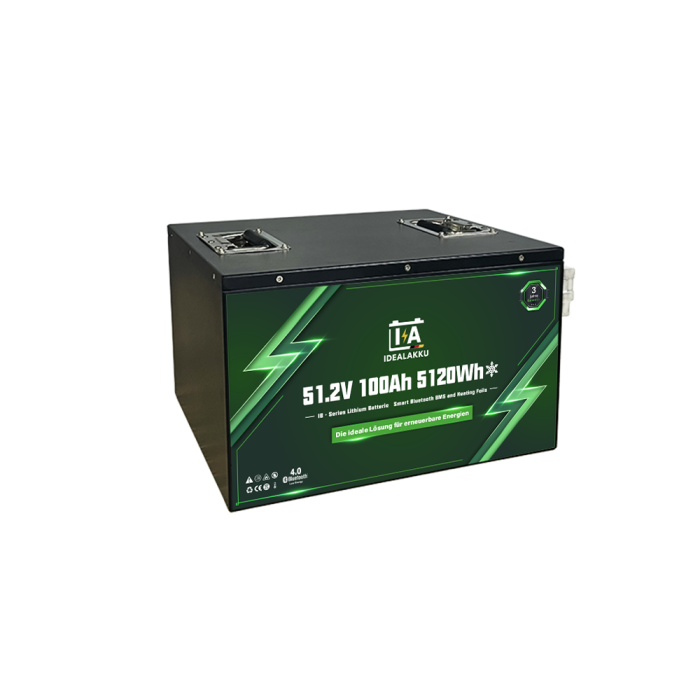

Idealakku IB SERIES Lithium Battery LiFePO4 48V 100Ah Smart BMS Bluetooth with Heating
– 3-year warranty
– Class A prismatic battery cell
– 200A maximum discharge current
– App available in the Apple Store and on Google Play
– Weight (without accessories): 41kg
– Dimensions (L x W x H) mm: 420*349*235 mm
Technical worksheet
Model 51.2V 100Ah/5120Wh
Replaces lead-acid gel AGM battery 51.2V/200Ah
Cell type Prismatic cell
Dimensions including clamps (L x W x H) 420*349*235mm
Weight (without accessories) 41kg
menstrual cycle >6000@80%DoD
Internal resistance ≤14 mΩ
Recommended charging voltage 58.4V
Maintenance charging voltage (for standby
use) 55.2±0.8V
Recommended charging current 30A
Max. charging current 50A
Continuous discharge current 200A
Peak discharge cutoff current 600A (200~500ms)
Operating voltage range 40 – 58.4V
End of the discharge voltage range 40 – 44.8V
Terminal type M8
Protection class IP62
Charging temperature 0~50°C
Discharge temperature -20~75°C
Storage temperature -5 to 35°C
Heating operating temperature -35 to 5°C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum of 4 in parallel
Certifications CE /UL /UN38.3 /MSDS /ROHS
UN 3480 /CLASS 9
