connectors 1-2 x MC4

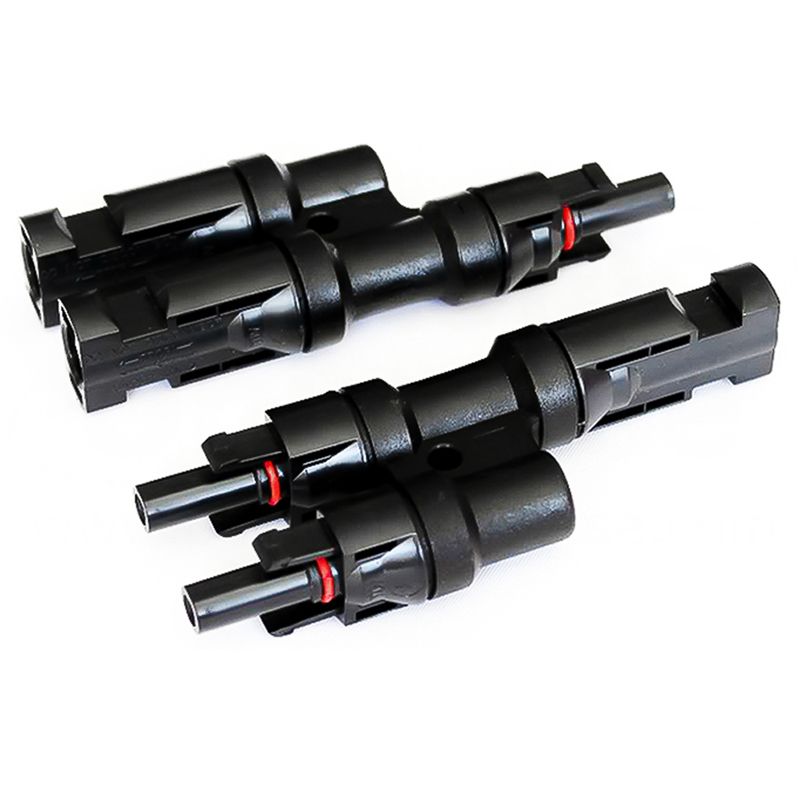

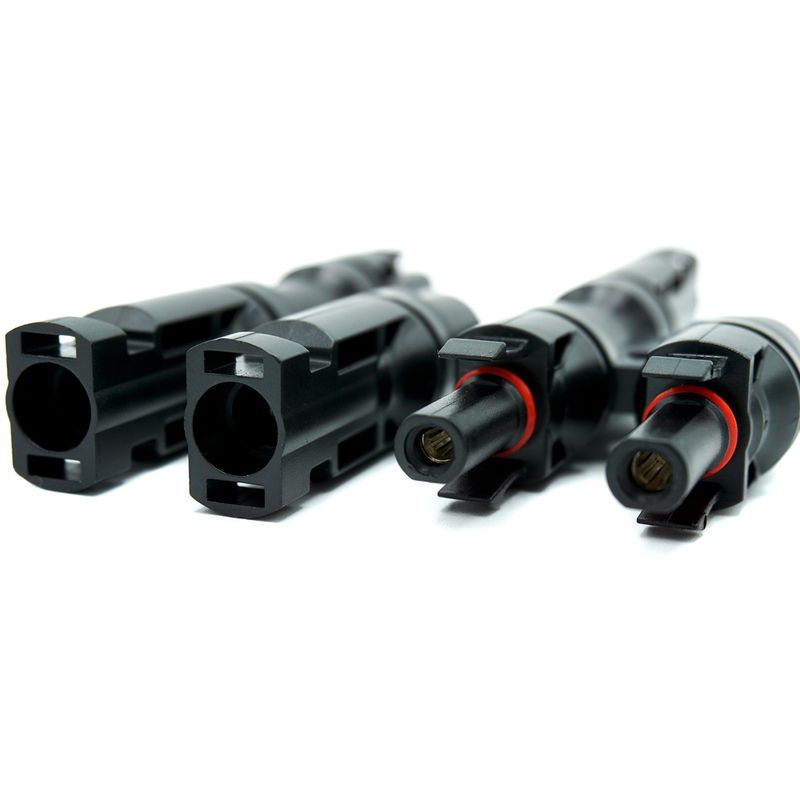

Pair of parallel multicontact connectors (male + female), designed to put 2 panels in parallel with MC4 connectors.

Specifications:

• 1 male splitter connector
• 1 female splitter connector
• For cables up to 6 mm2
• Maximum Voltage: 1000 V
• Maximum current: 20 A
• Contact material: copper, tin coated
• Contact system: reed MC-Multilam
• Ambient temperature: -40 º C to +70 º C (UL/AWG14)
• Maximum operating temperature: +105 º C (IEC/CEI)
• Safety class: II
• Typical contact resistance: 0.5 Ω
