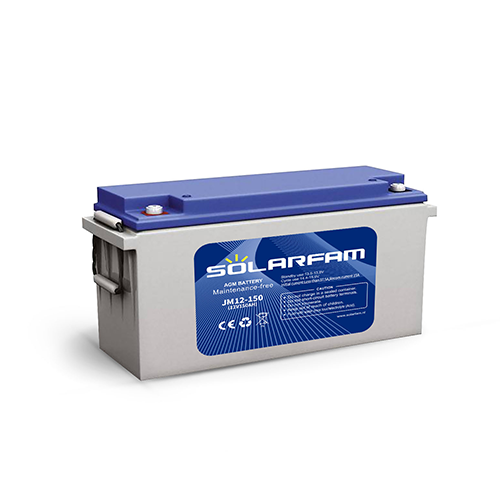

Batterie SOLARFAM 12V 150AH AGM
- UPS/EPS
- Power systems
- Telecommunications system
- Emergency lighting、Auto control system
- Solar/wind generating storage cyclic
- Other general purposes
General Features
- High corrosion resistant performance: Pb-Ca multi-alloy grid
- High energy density and power density
- Optimized capability of instant high-current discharging
- Excellent charge acceptance ability
- Excellent deep cycle discharge capability
- Strong high and low temperature performance
- Precision sealing technology
Επικοινωνήστε για διαθεσιμοτητα και τιμή προϊόντος
Battery Type AGM
Nominal Voltage 12V
Nominal Capacity 150Ah
Design life 10 years
Terminal M8
Approx. Weight Approx 42.5kg (93.7lbs)
Container Material ABS
Rated Capacity 150Ah 10Hour Rate (15.0A to 10.8V)
121Ah 3Hour Rate (40.3A to 10.8V)
98.2Ah 1Hour Rate (98.2A to 10.5V)
Internal resistance Full charged at 25˚C: 3.5 mΩ
Max. Discharge Current 1800A(5S)
Operating Temperature Discharge: -20 ~50℃(-4~ 122˚F)
Charge : -20 ~50℃(-4~ 122˚F)
Storage: -20 ~50℃(-4~ 122˚F)
Charge Method (25 ˚C) Charge current: Max.37.5A；Recom.15A
Float Charge voltage(-3mV/℃）:
13.5-13.8V,recom.13.5V(Full floating system)
13.5-13.8V,recom.13.62V(Cycle use system)
Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C)
Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C)
Self discharge 3% of capacity declined per month at 25˚C
