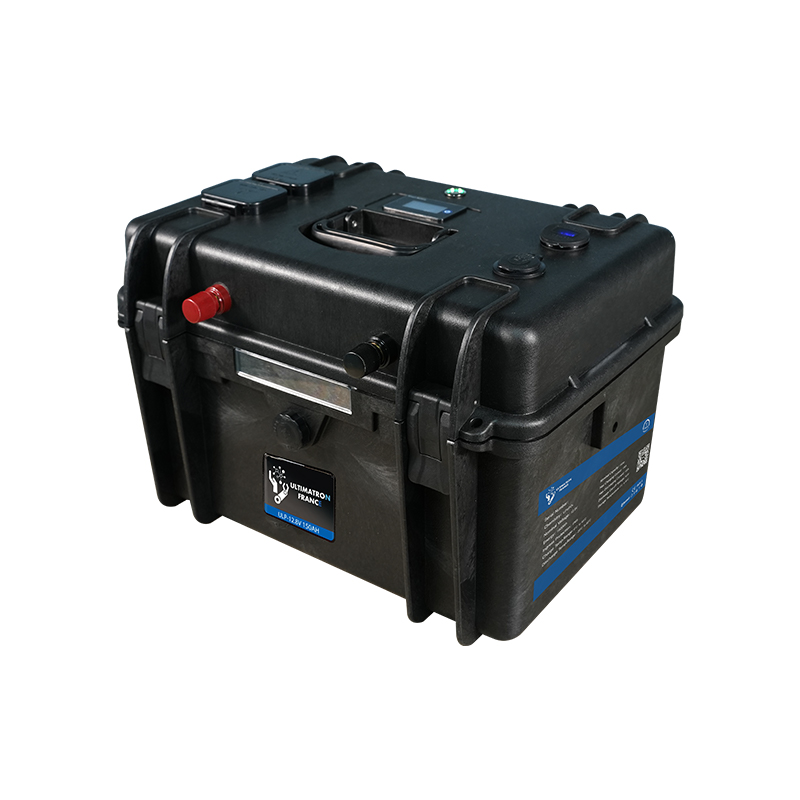

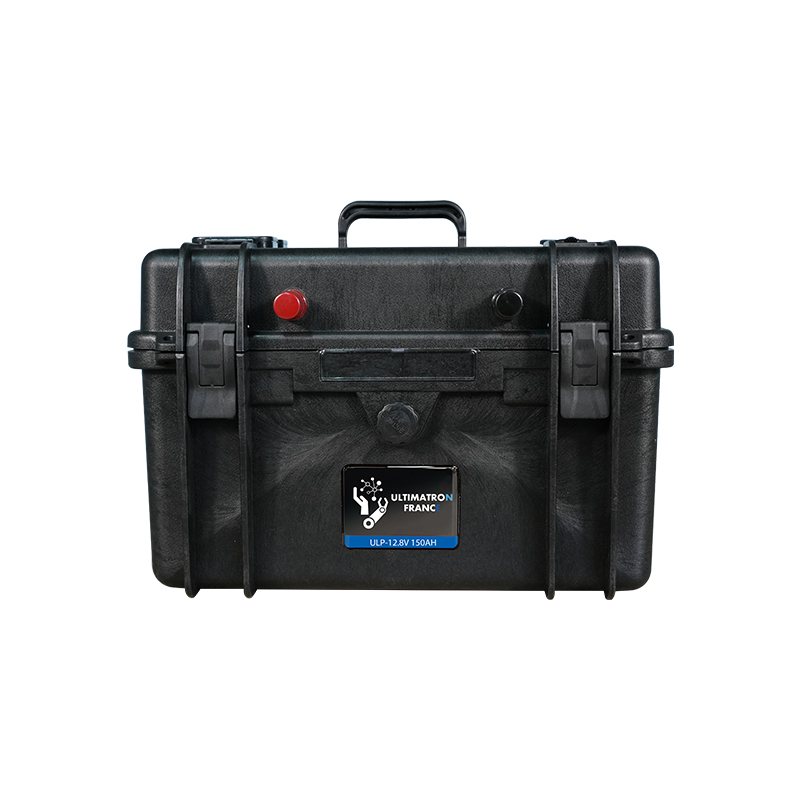

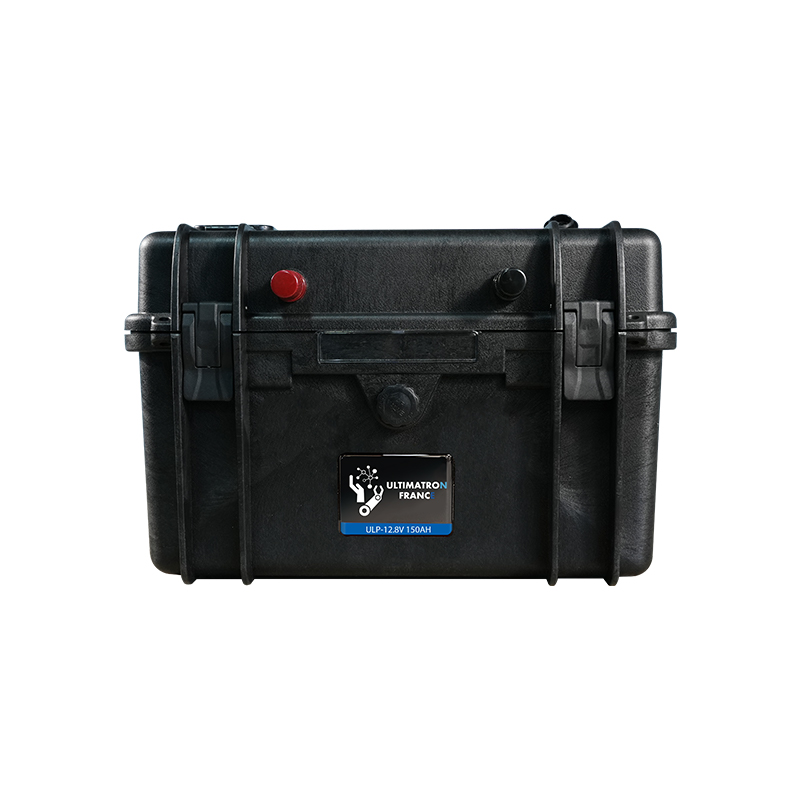

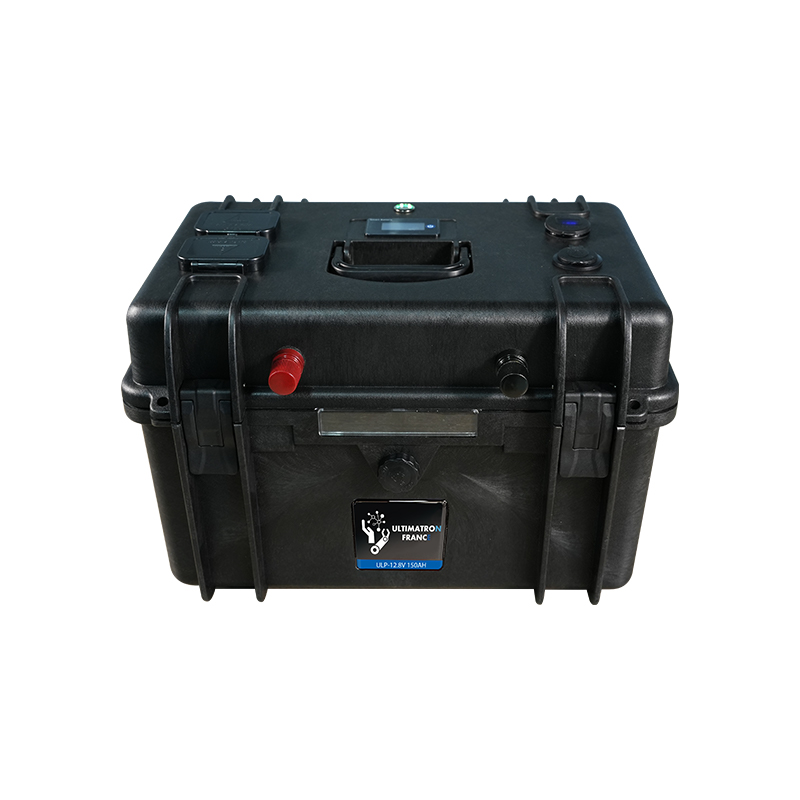

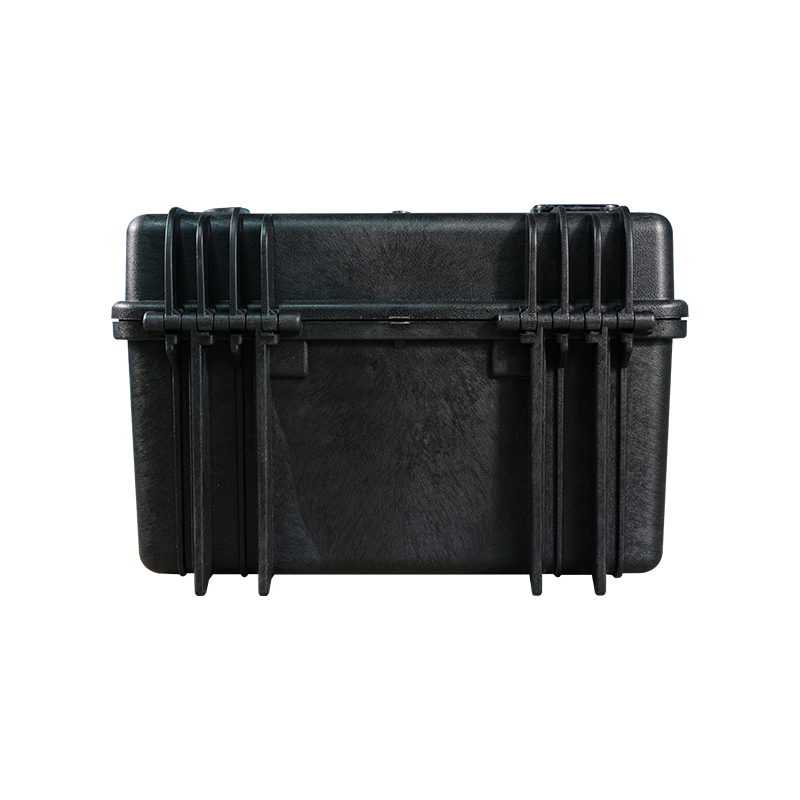

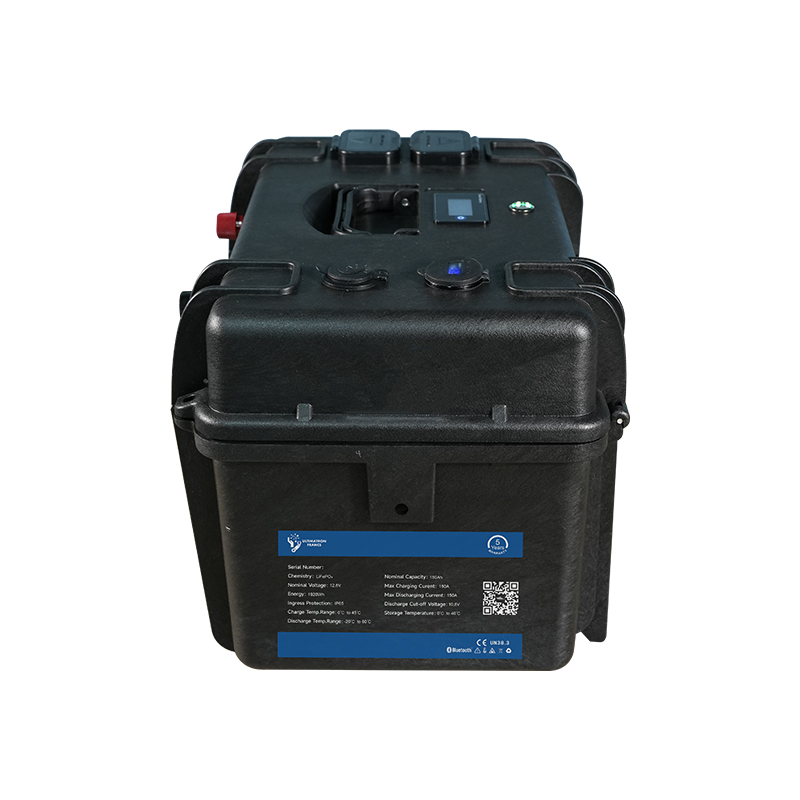

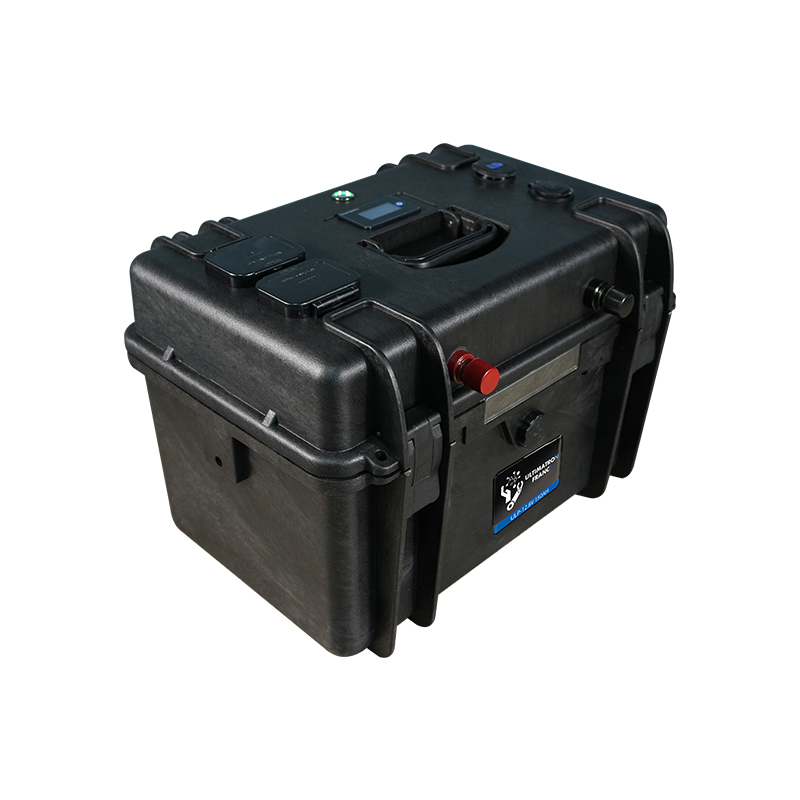

Ultimatron Waterproof Lithium Suitcase Battery 12.8V 150Ah 1920Wh LiFePO4 Smart BMS with Bluetooth
Model ULP-12-150
Nominal voltage 12.8V
Nominal capacity 150Ah
Energy 1920Wh
Number of cycles ≥6000@80%DoD
Recommended charging current 30A
Maximum charging current 150A
Maximum continuous discharge current 150A
Recommended discharge current 30A
Discharge cutoff voltage 10.6V
Discharge temperature -20 ~ 60 ºC
Charging temperature 0 ~ 45 °C
Storage temperature 0 ~ 40 °C
Connector type M8,Anderson SB50, USB-A,USB-C, Cigarette lighter
Dimensions L410 * W285 * H270 mm
Hardware box ABS/PP
Weight 18.2kg
Screen Color screen
Bluetooth Bluetooth 4.0 with smartphone app
Certifications CE, UN38.3
Shipping classification UN 3480, CLASS 9
FEATURES
Protection rating
– Equipped with IP65 protection against dust and water, it is suitable for outdoor use as well as complex environments, offering increased reliability.
Intelligent LCD display
– Equipped with a color LCD screen, it displays real-time voltage, charge level, operating status and other information, allowing intuitive control of the device’s status.
Highly secure battery technology
– Adopts high-stability Grade A cells, eliminating the risk of fire and explosion at the source. Enjoy worry-free use and a long lifespan.
Memory-free technology
– Recharge it whenever you want! No need to fully discharge it before recharging. Enjoy easy maintenance and maximum lifespan.

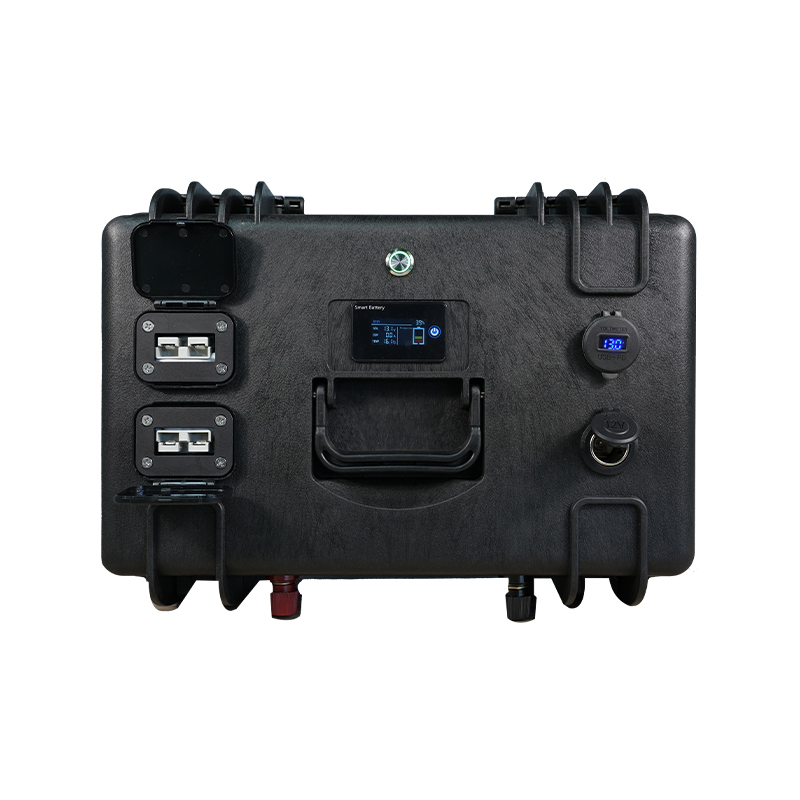

Professional-grade connection terminals

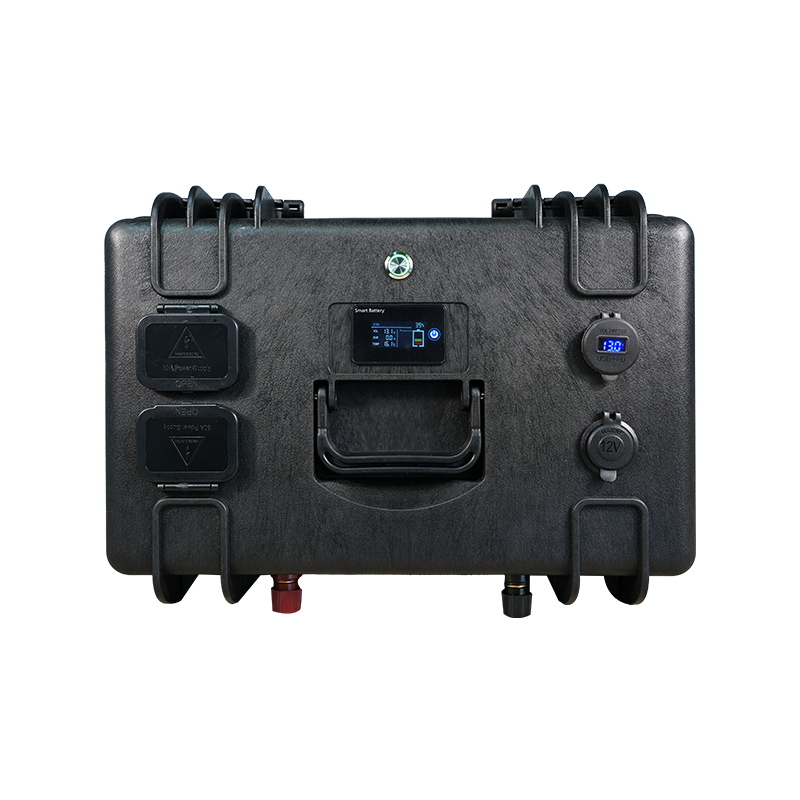

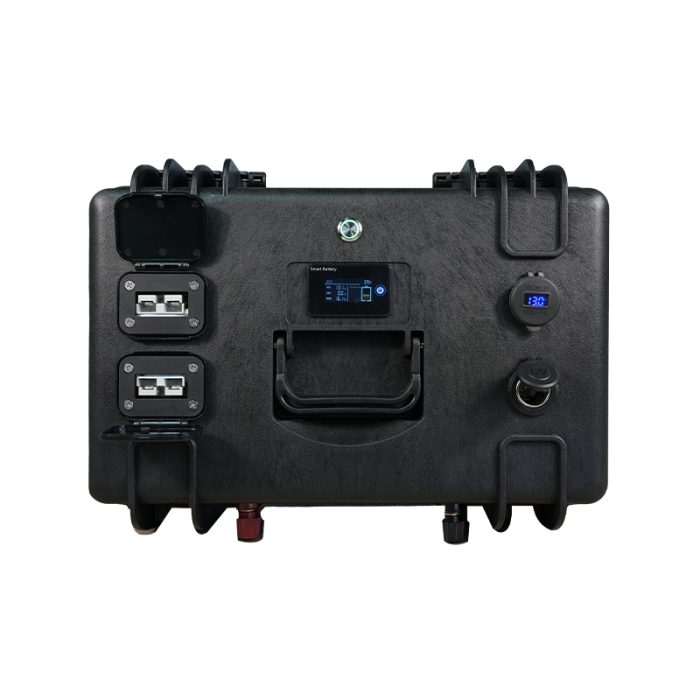

– Equipped with M8 threaded terminals, two Anderson SB50 connectors, USB ports, and a cigarette lighter socket, ensuring a stable and reliable connection. Ideal for universal electric outboard motors, sonars, and other equipment.
The integrated Battery Management System (BMS)
allows for monitoring and managing the charging of the various battery cells, while providing protection against overcharging, overvoltage, and overheating.
Integrated Bluetooth 4.0 monitoring
– You always have all the important battery data on your smartphone or tablet. The app displays the data in real time.
