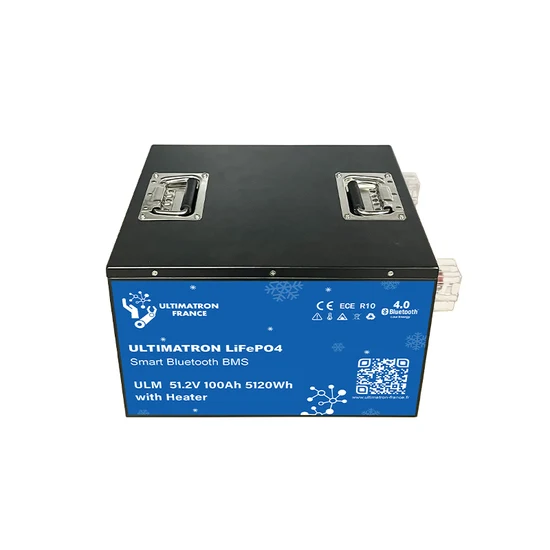

ULM-48V-100Ah LiFePO4 supply battery
This ULTIMATRON leisure battery was specifically designed for use in electric motorboats and offers maximum performance, even under demanding conditions on the water. Equipped with premium Class A lithium cells, its performance remains consistently stable even under intensive use – ideal for long journeys and challenging maneuvers.
Thanks to the integrated battery management system (BMS), the cells are optimally protected and continuously monitored. This ensures not only safe operation but also an extended battery lifespan – crucial for boat owners who value reliability and longevity. Via Bluetooth 4.0, you can conveniently monitor the battery performance using your smartphone or tablet, so you always have an overview of the condition and remaining capacity – whether during a relaxing trip or intensive use.
ULTIMATRON offers a wide range of batteries that are ideal for campers, boats and more: from the UBL series to the space-saving ULM series (under-seat) to the powerful ULS series.
Dimensions including connections: L420 * W349 * H235 mm
Connection torque: 80 ~ 100 in-lbs (9 ~ 11 Nm)
Number of cycles: ≥6000 at 80% DoD
Equalizing voltage: <57.6V
Bluetooth: Bluetooth 4.0 with smartphone app
Recommended charging current: 20A
Recommended charging voltage: 58.4V
Energy: 5120Wh
Discharge temperature: -20 ~ 60 ºC
Discharge cut-off voltage: 43.2V (2000ms)
Weight: 43kg
Capacity @ 20A: 300 min
Short-circuit protection: 200~800 µs
Charging cut-off voltage: 58.4V ± 0.2V
Charging temperature: 0 ~ 45 °C
Storage temperature: 0 ~ 40 ºC
Housing material: Metal
Maximum continuous discharge current: 200A
Maximum charging current: 50A
Nominal voltage: 51.2V
Nominal capacity: 100Ah
Protection rating: IP65
Self-discharge: <3% / month
Reconnect power: >40V
Peak discharge cutoff current: 300A (5~15ms)
Shipping classification: UN 3480, CLASS 9
Resistance: 10m @ 50% SOC
Certifications: CE, UN38.3, UL1642 & IEC62133, ECE R10
