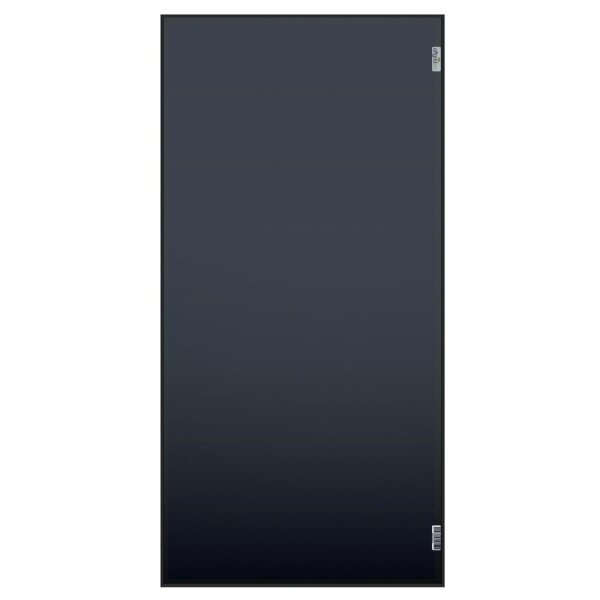

OLP 150W V2 Solar Panel 19V Shingle Technology PERC
Technical data:
Generator output: 150 Wp
Module voltage (Vmp): 19.4 V
Max. Current (Imp): 7.74 A
Open circuit voltage (Voc): 22.90 V
Short-circuit current (Isc): 8.20 A
Max. System voltage: 1000v DC
Cell type: Monocrystalline PERC
Power tolerance: +/- 3%
Operating temperature: -40 to +85°C
Cells per module: 3 x 34
Cell size: 210 x 33.7mm
Accessories: xc802 + 0.9m cable + MC4
Dimensions: 670 x 1195 x 35mm
Weight: 9.8 kg
Innovative PERC technology
PERC technology, also known as Passivated Emitter Rear Cell or rear-side passivation, is a key technology in Offgridtec olp solar modules that increases the efficiency of solar cells. It creates a dielectric layer between the conventional aluminium metallization and the silicon wafer layer on the back of the cell. A laser is applied to this layer to create tiny holes. This dielectric layer reflects light, which normally penetrates through to the rear side without generating charge carriers, back into the solar cell. This gives photons an extra chance to generate electricity. PERC technology improves efficiency across different wavelengths, increases the likelihood of electrons contributing to electricity generation and helps to reduce system costs and increase energy yield per unit area.
