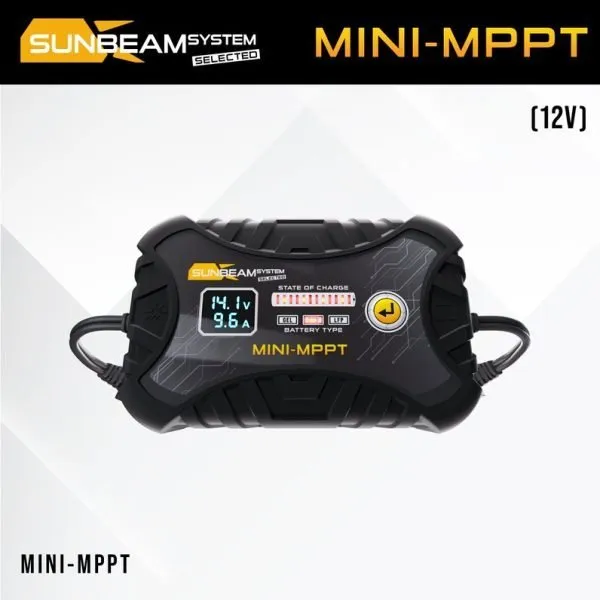

MINI PORTABLE SOLAR CHARGE CONTROLLER
MPPT Technology: Up to 50% more efficient charging than the previous Mini-R model.
Battery Compatibility: Supports various battery types, including lead-acid and LiFePO4 batteries.
Display & Control: Informative screen and a multi-function button for settings.
Safety Features: Protection against reverse polarity, overheating, and overcharging.
Durable Design: IP45-rated, resistant to water splashes and dust.
Energy Efficient: Low self-consumption of only 0.009A.
The advanced technology of MINI-MPPT makes it an excellent portable solution, pairing perfectly with SUNBEAMsystem Fold solar panels. While it performs well in fixed installations, it is primarily designed for portable use.
INTELLIGENT 4-STAGE CHARGING
- CC / Boost: Charges at a constant current, utilizing the maximum power available from the solar panel.
- Equalization / Desulfation: Activates every 7 days when continuously connected, helping revive lead-acid batteries and extending the CC phase up to 14.6V (included in STD mode).
- CV / Absorption: Maintains constant voltage, finalizing the main charging phase.
- Float Maintenance Charge: Keeps lead-acid batteries at full charge when idle. Not needed for LiFePO4.
a. SMART LITHIUM can handle float charging while in daily use, but if left unused, switch to LiFePO4 mode to disable float charging.

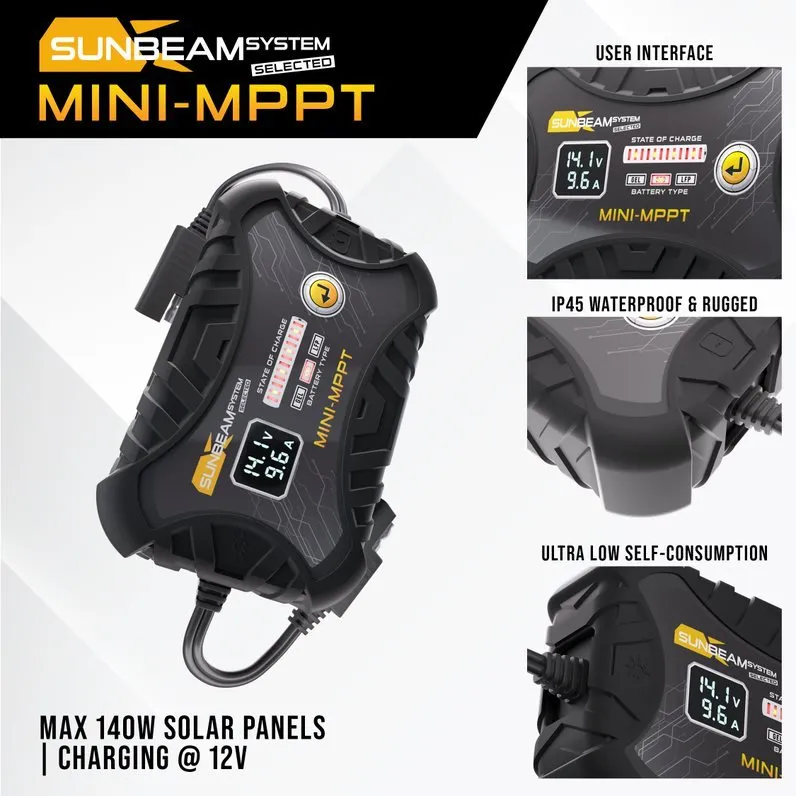

ULTRA-PORTABLE MINIATURIZED SOLAR CHARGE CONTROLLER
SUNBEAMsystem MINI-MPPT is a compact and efficient solar charge controller that combines portability with powerful performance. Now upgraded with MPPT technology, improving charging efficiency by 30-50% depending on conditions. It supports solar panels up to 140W while maintaining a low self-consumption of just 0.009A, despite its miniature design.
INFORMATIVE DISPLAY
The built-in screen provides real-time information, including battery voltage, charging current, device temperature, error codes, selected battery type, and charge status. The multi-function button allows easy control over settings and information display.
Mode GEL STD LiFePO4
Boost Charge Voltage 14.2V 14.4V 14.4V
Float Charge Voltage 13.8V 13.8V No Float
Equalizing Charge Voltage No EQ EQ 14.6V No EQ
Boost Charge Recovery Voltage 13.2V 13.2V –
Over-Discharge Recovery Voltage 12.6V 12.6V 12.6V
Over-Discharge Voltage 11.1V 11.1V 11.1V
Temperature Compensation -3mV/2V/0ºC -3mV/2V/0ºC –
