Luxen Solar 480W TopCon N-Type Bifacial Solar Module Black Frame Luxneri Series n5

Bifacial cells
Bifacial modules offer a decisive advantage thanks to their transparent backs and special cell technology – they also use the reflected light. This leads to a significantly increased energy yield and makes these modules a particularly efficient choice for your solar system.

Technical data
maximum output: 480w
Module voltage (Vmp): 35.69V
max. current (Imp): 13.45A
Open circuit voltage (Voc): 43.36V
Short-circuit current (Isc): 14.16A
Module efficiency: 22.16%
Dimensions: 1910 x 1134 x 30 mm
Operating temperature range: -40°C to +85°C
Cells: 120 (6×20)
max. operating voltage: 1500v DC
Weight: 26kg
Scope of delivery

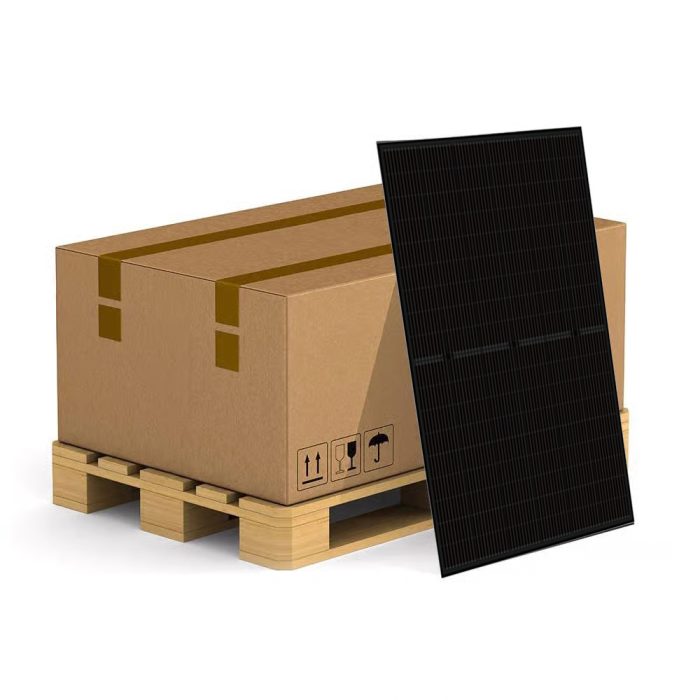

1x Luxen Solar 480w n5 Mono Bifacial Glass-Glass Black Frame Solar Module

5 βλέπουν το προϊόν αυτό τώρα!
Κωδικός προϊόντος: Luxen Solar 480W Κατηγορία:
Περιγραφή

The monocrystalline and bifacial 480w Black Frame Series n5 solar module from Luxen Solar(MPN LNVK-480ND) impresses with a combination of various innovative technologies, such as N-TOPCon cell technology and a 120 half-cell layout. The smbb half-cut cell technology was also used in production to increase performance. The state-of-the-art solar module represents the pinnacle of solar technology, offering impressive power output and low LCOE.

The module also offers excellent anti-PID and low lid performance, as well as high hotspot resistance. Its black-frame design makes it the ideal choice for Solaranstallations on residential buildings, balcony power plants and many other applications.

about the 480w Luxen n5 solar module
N-TOPCon cell technology
smbb Half-Cut cell technology
Low bos & LCOE
Bifacial cell module technology
excellent anti-PID and low lid performance
3 bypass diodes – minimised power drop when shaded
high cell efficiency of over 22%
