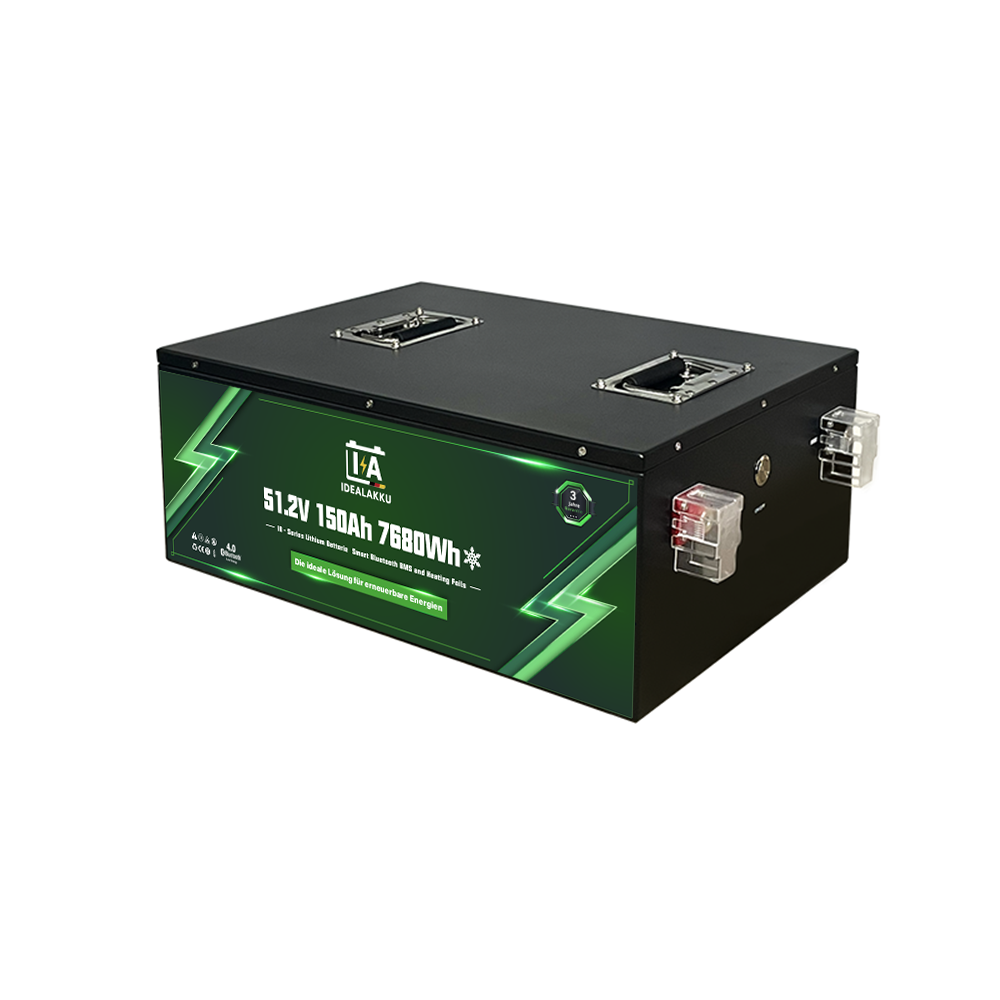

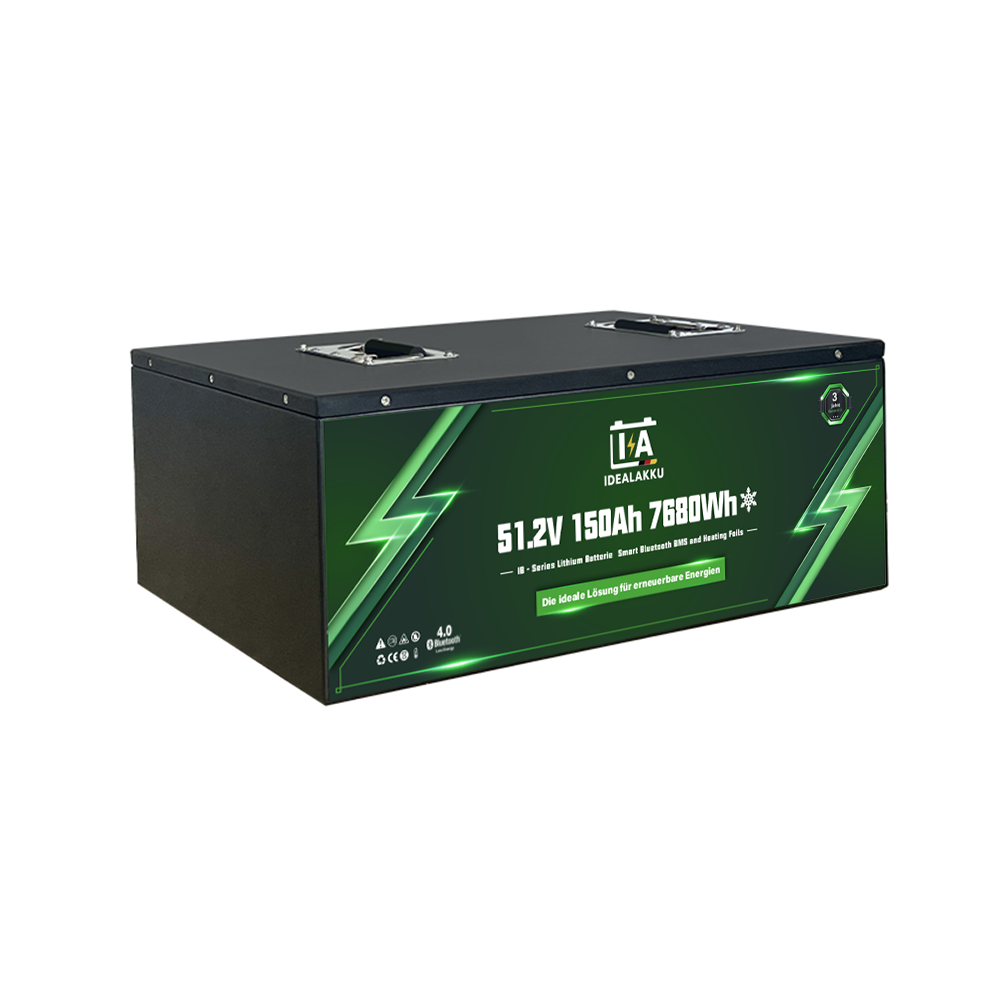

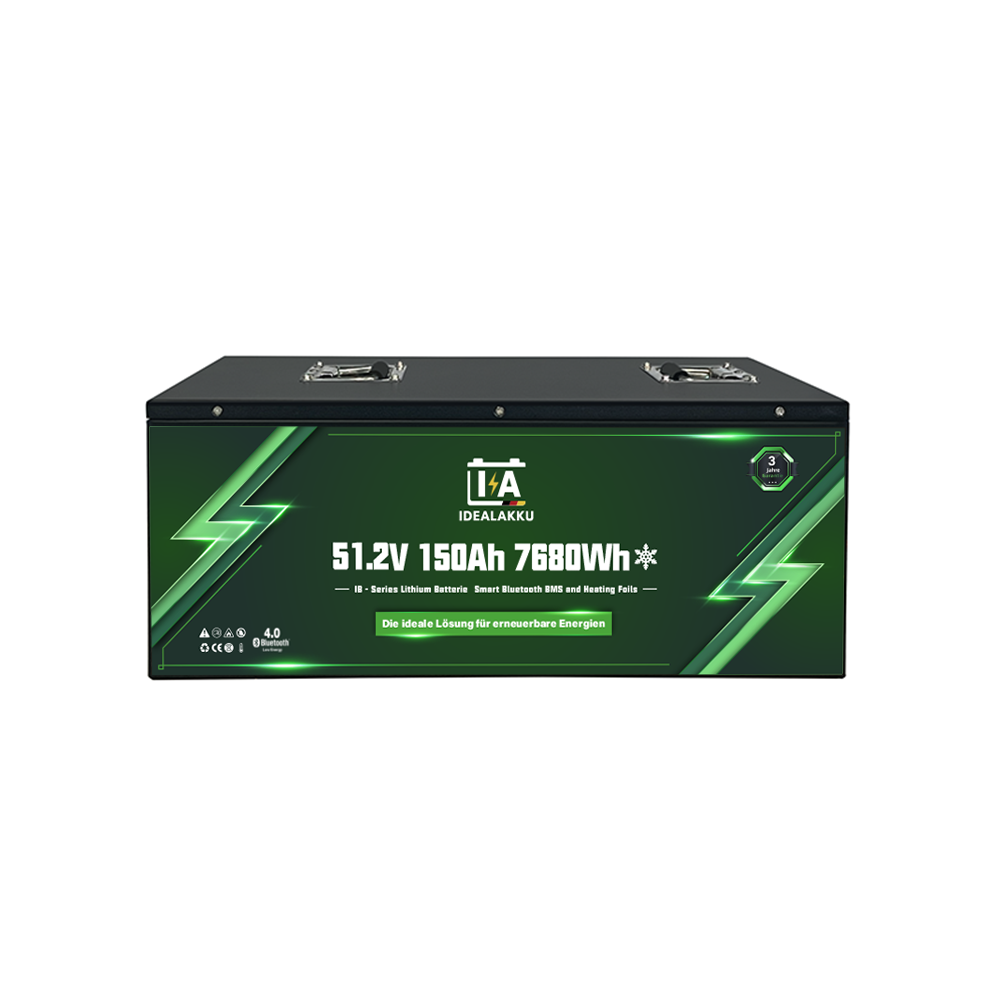

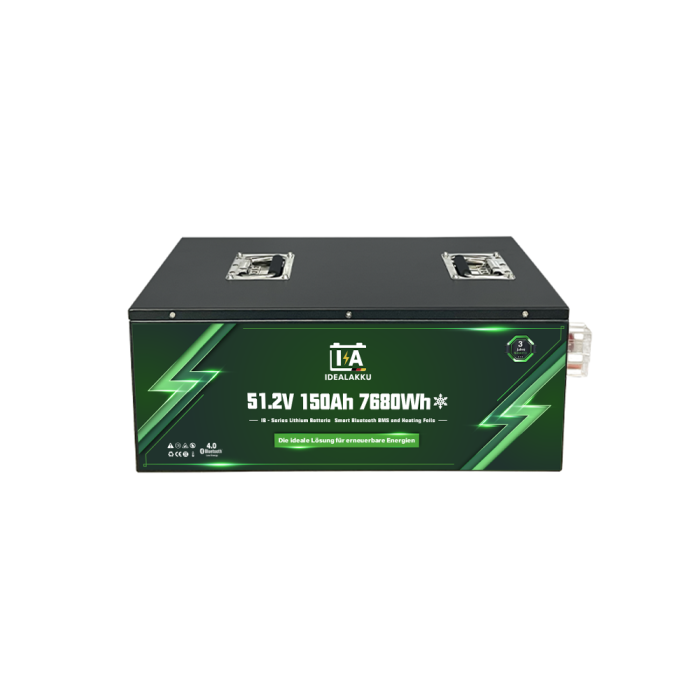

Idealakku IB SERIES Lithium Battery LiFePO4 48V 150Ah Smart BMS Bluetooth with Heating
Technical worksheet
| Model | 51.2V 150Ah/7680Wh |
| Replaces lead-acid gel AGM battery | 51.2V/300Ah |
| Cell type | Prismatic cell |
| Dimensions including clamps (L x W x H) | 500*370*200mm |
| Weight (without accessories) | 57.3 kg |
| menstrual cycle | >6000@80%DoD |
| Internal resistance | ≤14 mΩ |
| Recommended charging voltage | 58.4V |
| Maintenance charging voltage (for standby use) |
55.2±0.8V |
| Recommended charging current | 45A |
| Max. charging current | 75A |
| Continuous discharge current | 200A |
| Peak discharge cutoff current | 600A (200~500ms) |
| Operating voltage range | 40 – 58.4V |
| End of the discharge voltage range | 40 – 44.8V |

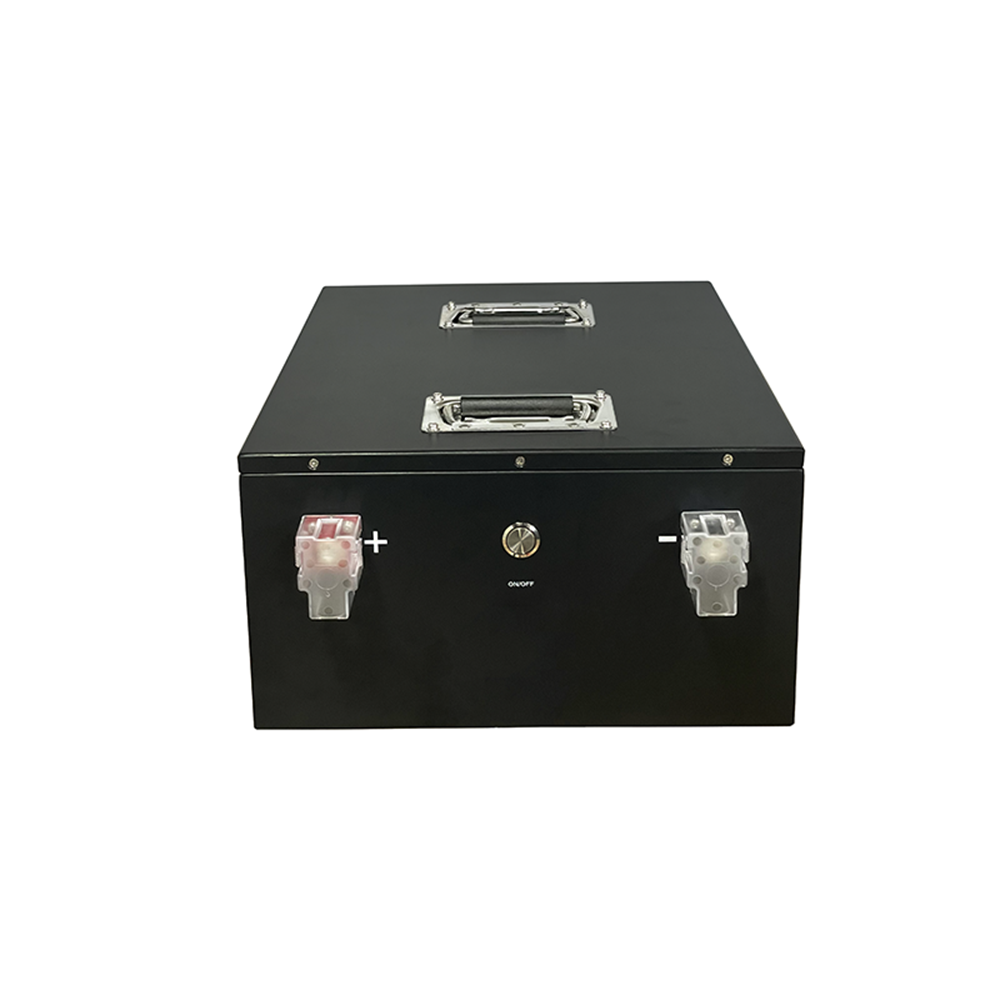

| Terminal type | M8 |
| Protection class | IP62 |
| Charging temperature | 0~50°C |
| Discharge temperature | -20~75°C |
| Storage temperature | -5 to 35°C |
| Heating operating temperature | -35 to 5°C |
| Storage condition | Charge the battery every 3 months |
| Series and parallel availability | Maximum of 4 in parallel |
| Certifications | CE /UL /UN38.3 /MSDS /ROHS UN 3480 /CLASS 9 |
Strong advantages
3-year warranty
Remove lead-acid battery directly
Lighter weight and easier handling
Lithium iron phosphate is more stable
Excellent stability even under extreme loads
No memory effect, no complete charge and discharge cycles required.
Deep, regular charging and discharging, and charging efficiency
Maximum lifespan of over 6000 cycles
Durable modular design
Screw opening, perfectly crafted internal structure design
BMS
Battery Management System
The BMS monitors and controls the individual cells of a battery and protects them from damage such as overload and overvoltage.
Note: Up to 4 units can be connected in parallel. Series connection is not permitted.
BLUETOOTH 4.0 INTEGRATED
monitoring of the status of multiple batteries
The Idealakku BMS can now monitor up to 8 batteries simultaneously.
The state of charge, voltage, current, temperature, and available time of the battery bank can be informative.
