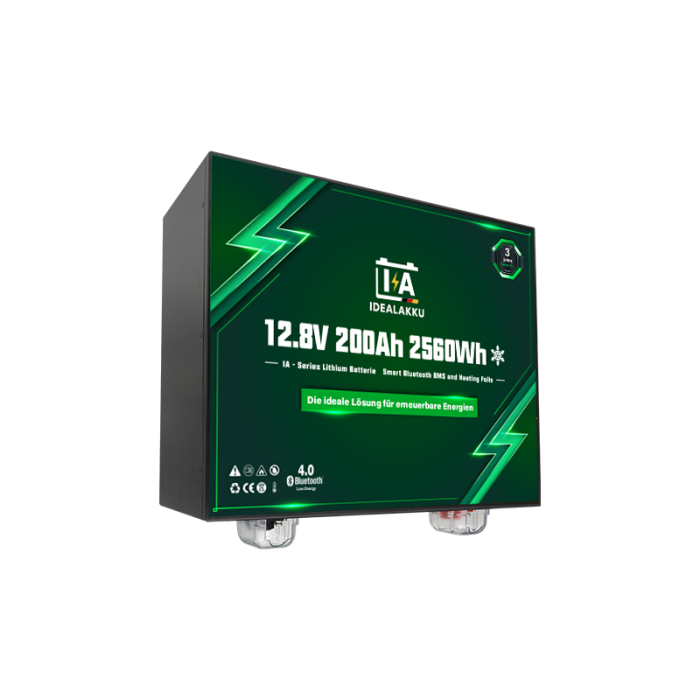

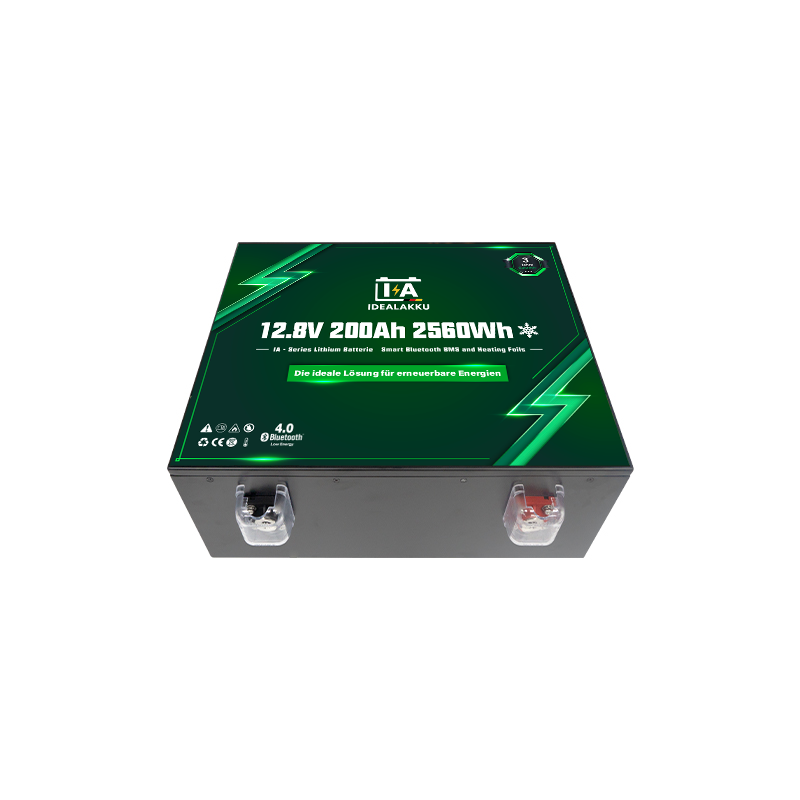

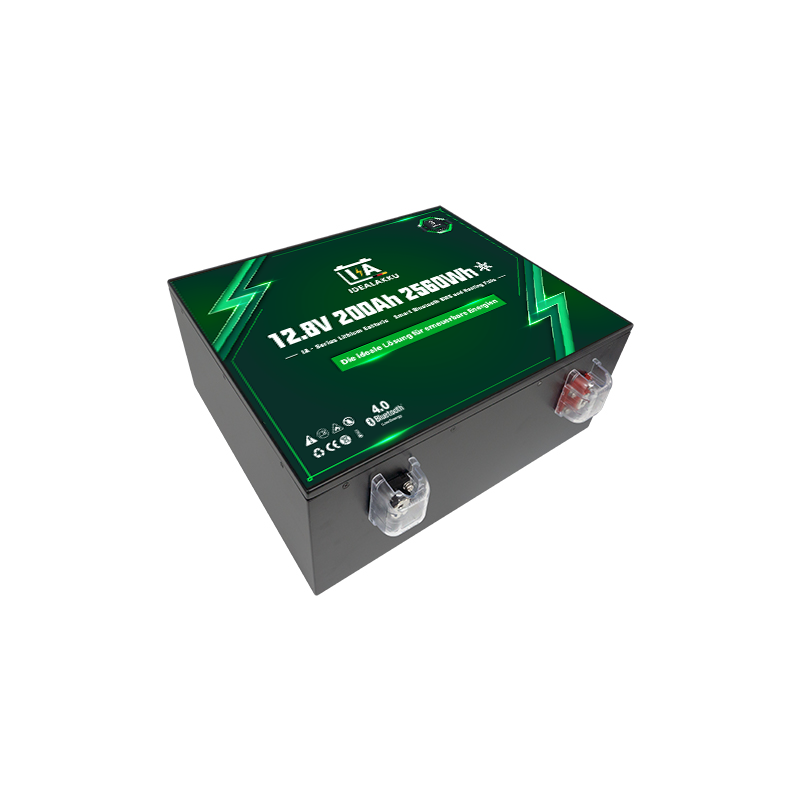

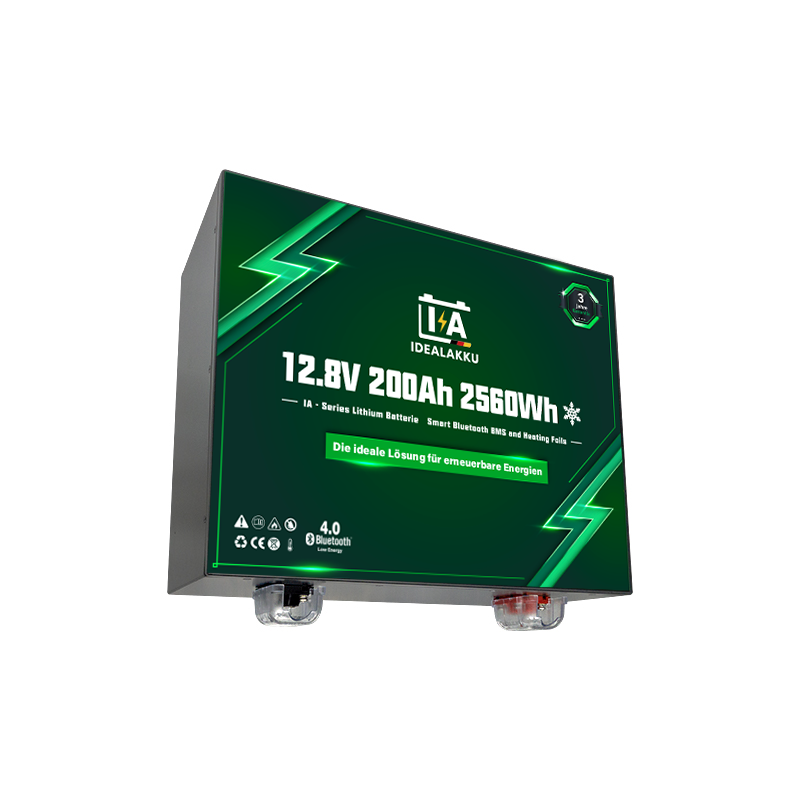

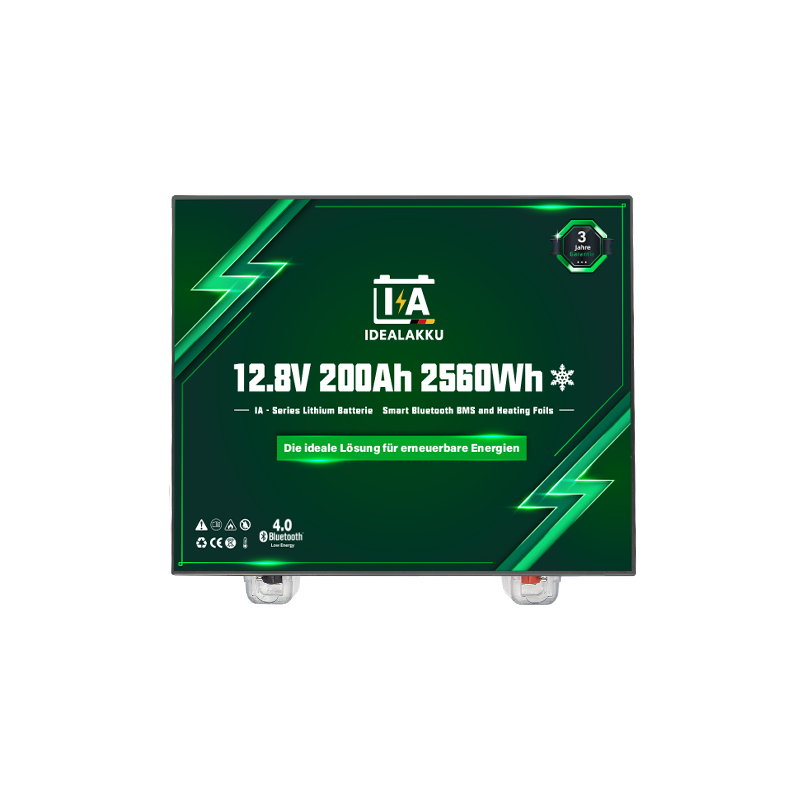

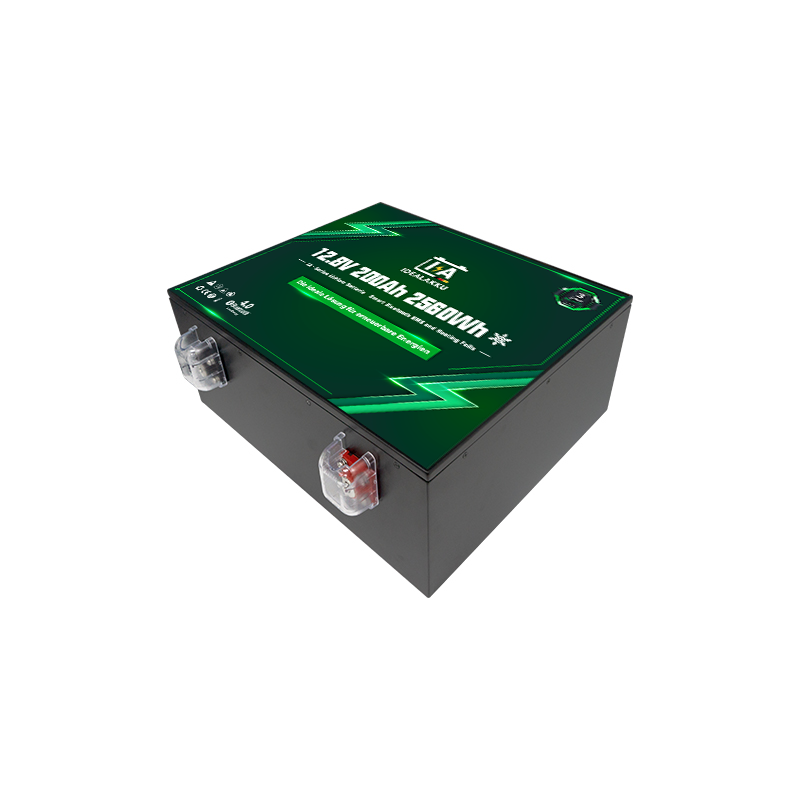

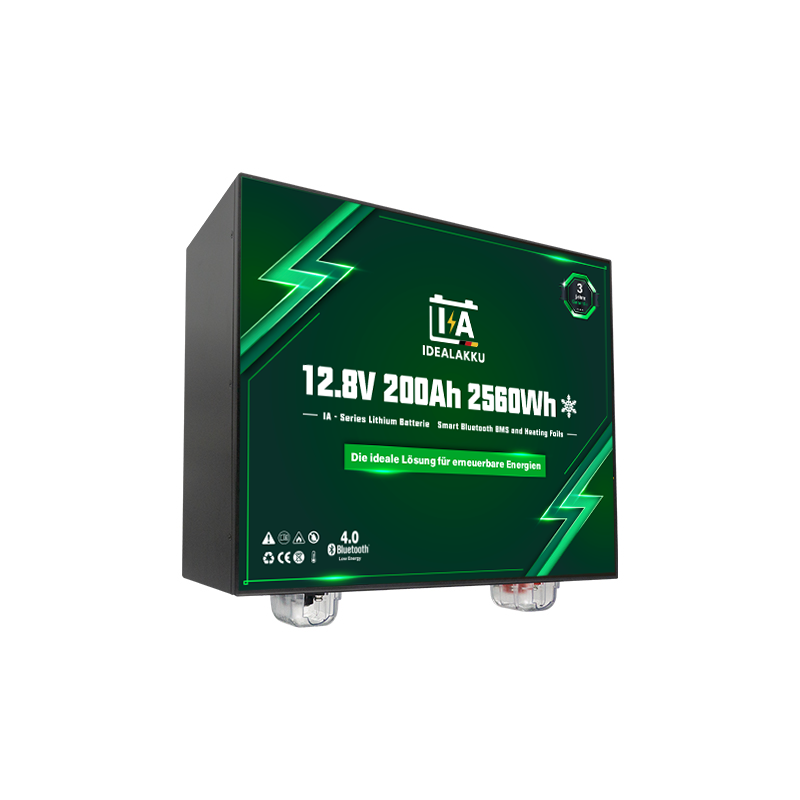

Idealakku IA SERIES Lithium Battery LiFePO4 12V 200Ah Smart BMS with Bluetooth Motorhome Under-Seat Battery with Heating

 Model 12.8V 200Ah/2560Wh
Replaces lead-acid gel AGM battery 12V 400Ah
Cell type Prismatic cell
Dimensions including clamps (L x W x H) 357*316*152mm
Weight (without accessories) 23.3 kg
menstrual cycle >6000@80%DoD
Internal resistance ≤7 mΩ
Recommended charging voltage 14.6V
Maintenance charging voltage (for standby
use) 13.8±0.8V
Recommended charging current 60A
Max. charging current 100A
Continuous discharge current 200A
Peak discharge cutoff current 600A (200~500ms)
Operating voltage range 10 – 14.6V
End of the discharge voltage range 10 – 11.2V

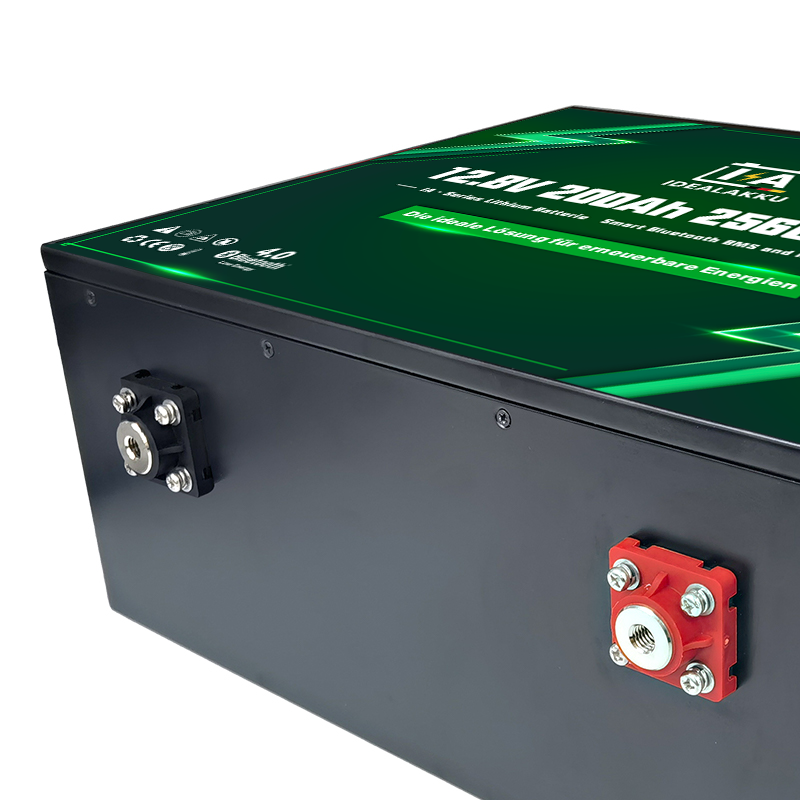

Terminal type M8
Protection class IP62
Charging temperature 0~50°C
Discharge temperature -20~75°C
Storage temperature -5 to 35°C
Heating operating temperature -35 to 5°C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum 4 pieces in series and 4 pieces in
parallel connection
Certifications CE /UL /UN38.3 /MSDS /ROHS UN 3480 /CLASS 9
