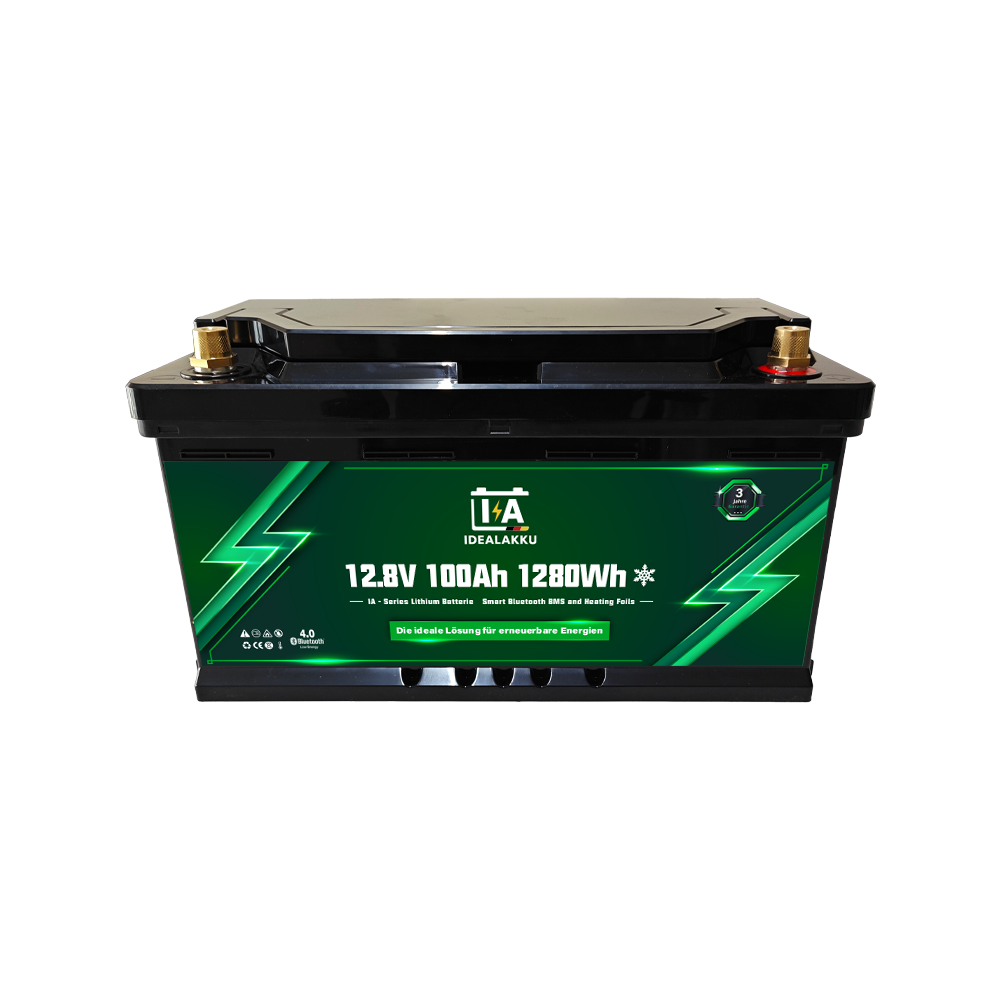

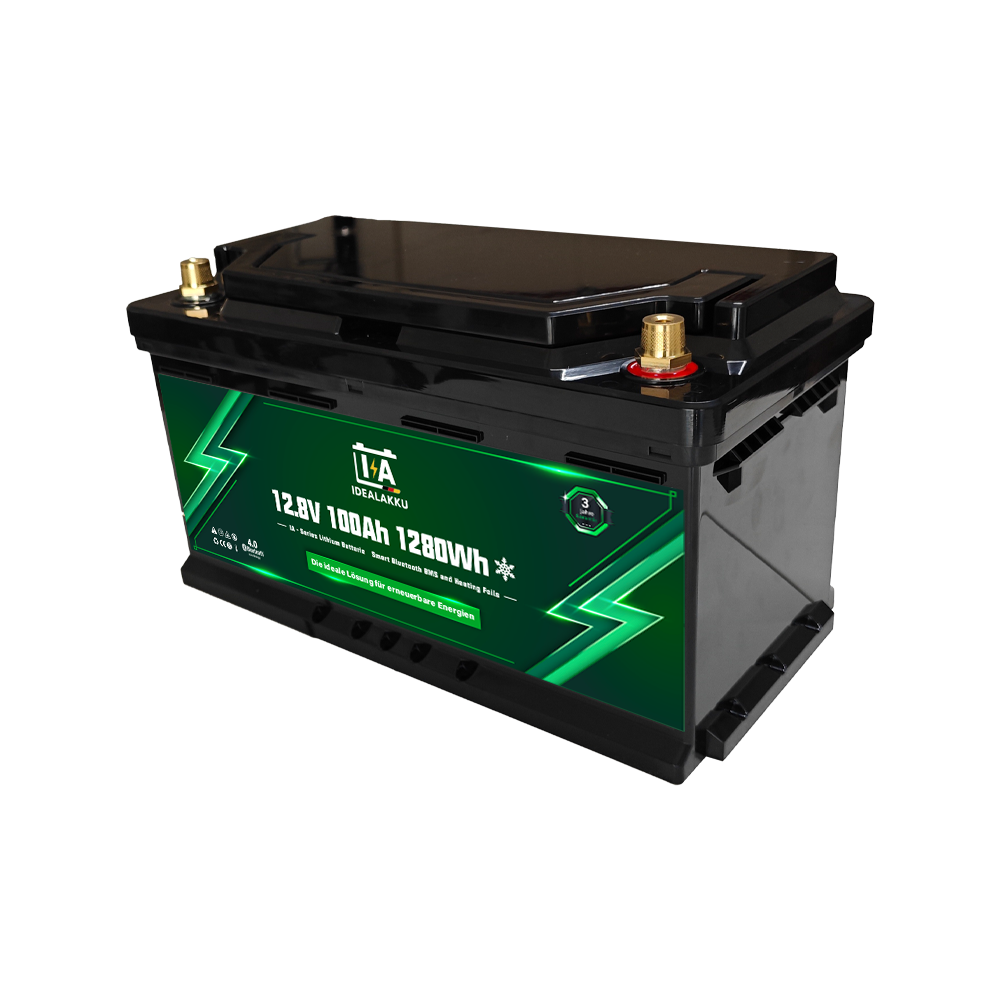

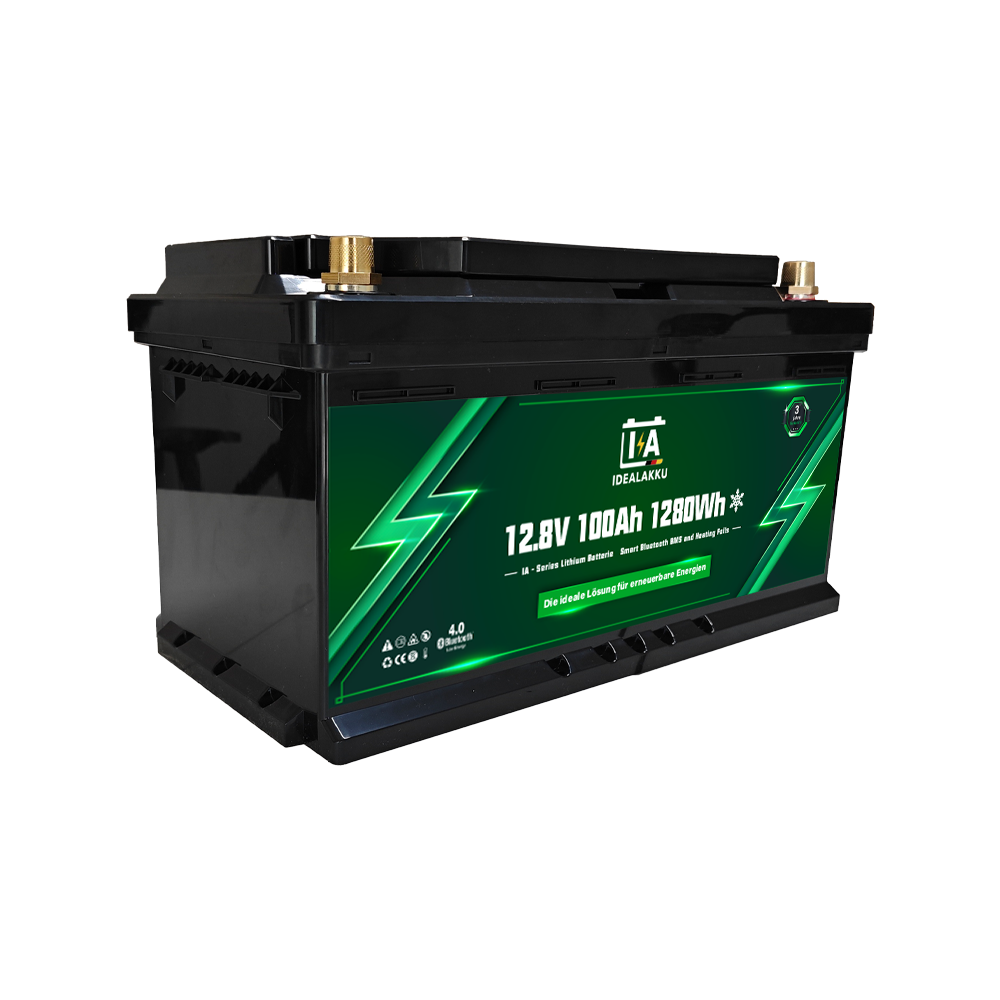

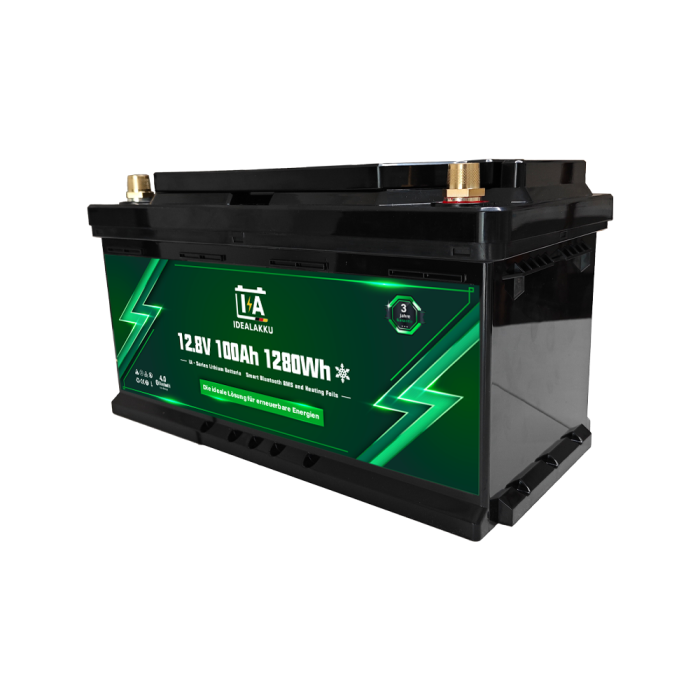

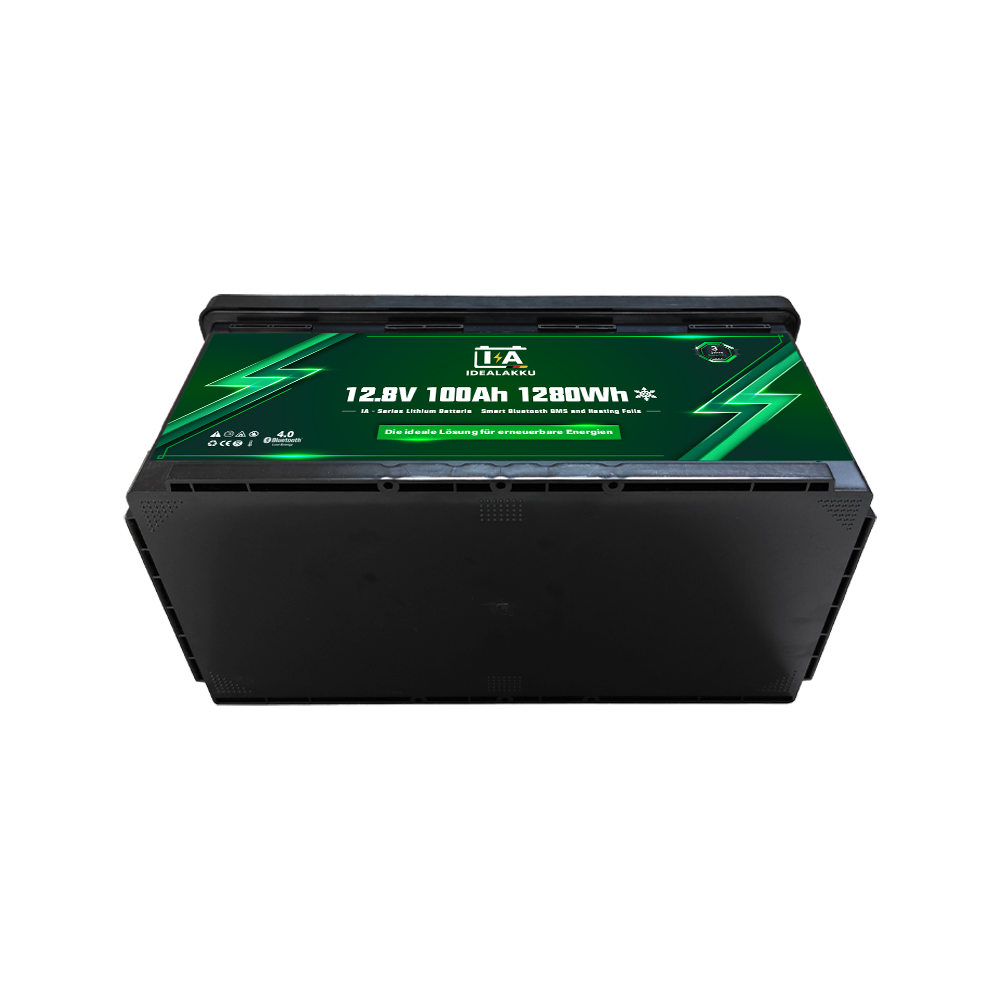

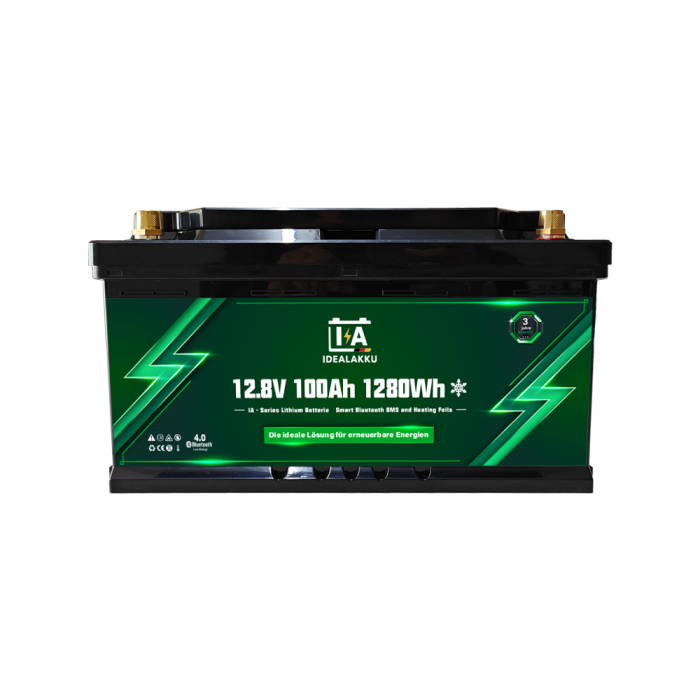

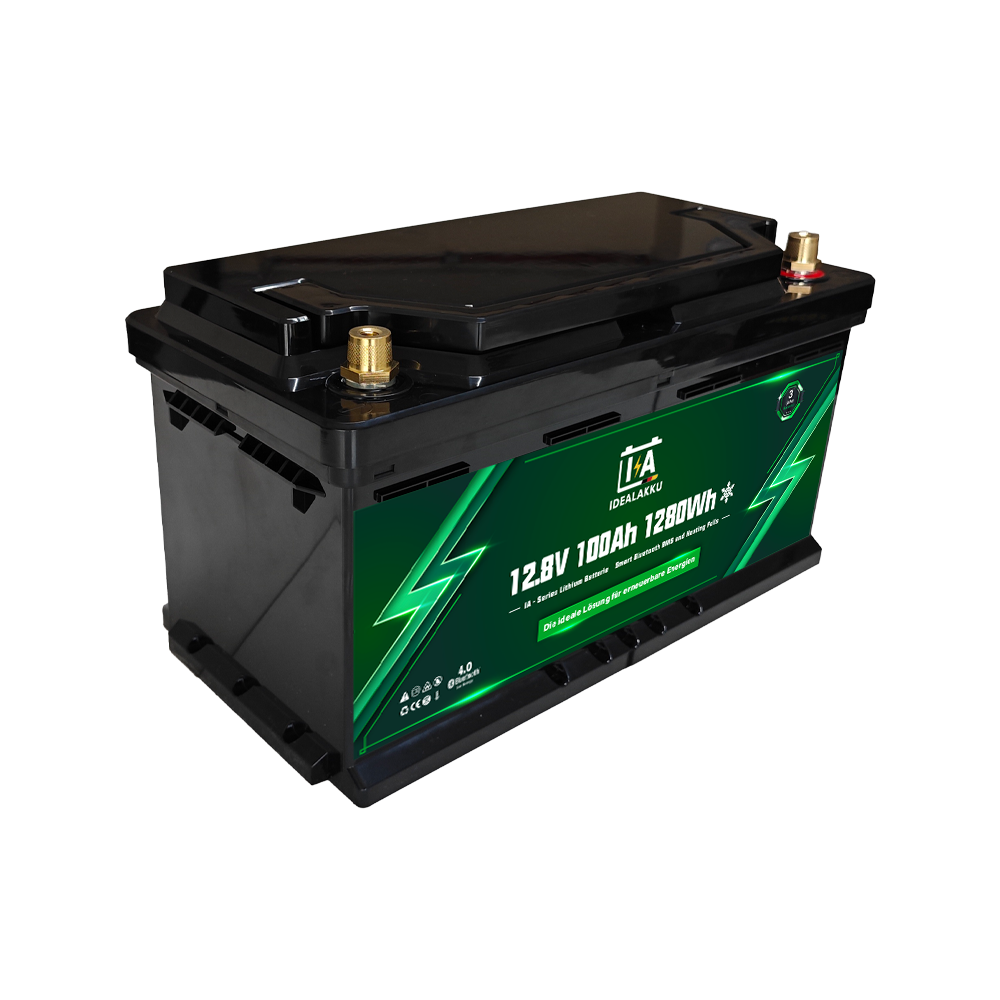

Idealakku IA-Series LiFePO4 Battery 12V 100Ah Motorhome Under-Seat Battery with Smart-BMS, Bluetooth and Heating
- Integrated heating film: Can be used even at arctic temperatures down to -35°C
- 3-year warranty: Reliable IdealAkku quality for motorhomes, campers and off-grid applications.
- Prismatic Grade-A cells: High energy density, stable LiFePO4 technology and long lifespan
- 150A maximum continuous discharge current: Strong power reserve for inverters and on-board consumers
- Smart BMS with Bluetooth: App available in the Apple Store and on Google Play
- Compact & lightweight: 10.2 kg | 355 x 175 x 188 mm (DIN H8/LN5)
- Direct replacement: Replaces 12.8V 200Ah lead-acid gel AGM batteries at a significantly lower weight.
- Perfect fit: Specially adapted for under-seat installation in Fiat Ducato, Citroën and Peugeot motorhomes
Model 12.8V 100Ah/1280Wh
Replaces lead-acid gel AGM battery 12.8V 200Ah
Cell type Prismatic Grade-A cell
Dimensions including clamps (L x W x H) 355 x 175 x 188 mm
Weight (without accessories) 10.2 kg
menstrual cycle >6000 @ 80% DoD
Internal resistance ≤7 mΩ
Recommended charging voltage 14.6V
Maintenance charging voltage (standby) 13.8±0.8V
Recommended charging current 30A
Max. charging current 50A
Continuous discharge current 150A
Peak discharge cutoff current 450A (200~500ms)
Operating voltage range 10 – 14.6V
End of the discharge voltage range 10 – 11.2V
Terminal type SAE standard
Protection class IP65
Charging temperature 0~50°C
Discharge temperature -20~75°C
Storage temperature -5 to 35°C
Heating operating temperature -35 to 5°C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum 4 pieces in series and 4 pieces in parallel connection
Certifications CE/UL/UN38.3/MSDS/ROHS/UN 3480/CLASS 9
