FORSTER 40Ah 12.8V LiFePO4 Heavy Duty Automotive Lithium Batterie 1200A
Data / order no.: F12-040S EAN 4251847301300 Nominal voltage 12.8V Technology Lithium LiFePO4 Current current CCA 1000A Operating voltage 11.0V - 14.6V End pole type Car SAE cone standard / plus right front Circuit 0 (positive pole front right) End pole type for data sheet Pole Abmaße 240 x 174 x 190mm (incl. connection pole) Installation position any, upright, horizontal, sideways, upright Weight 7.2kg Reference to lead, gel, AGM batteries 65D31L, 75D31L, 95D31L, N40L, N70ZL, NX120L, Exide W249BX Guarantee 2 years Cell type HDP Heavy Duty Pouch cells Application parallel connection yes, max. 4 pieces of the same type possible Application series circuit Yes, 2 batteries in series on 24V CAPACITYÄT Capacity @25°C 40Ah Capacity @0°C 32Ah Capacity @-25°C 20Ah Energy content @25°C 512Wh LIFETIME Start cycles >100,000 (<3sec.) Cycles / service life at 50% DoD >5000 Cycles / service life at 70% DoD >3000 Cycles / lifetime at 80% DoD >2500 Peak discharge current / 3 sec 1000A Continuous discharge current 80A Recommended continuous discharge current >40A Recommended battery disconnection / system 11.0V LOAD Final charge voltage 14.2V - 14.6V Maintaining charge 13.3 - 13.5V Max. Charging current / charging time / not Lima 40Ah / 1 hour Recommended charging current / not Lima 20Ah Insert temp repair on discharge minus 20°C to plus 90°C Recommended storage temperature -45°C to 70°C / max 95% humidity Protection class IP56 Storage 60 - 80% / charge every 6 months in storage Self-discharge 1.5 - 3% / month BATTERY MANAGEMENT SYSTEM BMS installed Multi-Dynamic-BMS Maximum discharge current / peak 1000A Charging programs CCCV / IU / IUoU / Lead-Säure Charge protection / control Yes, Deep discharge protection 8.0V Discharge current limitation (duration) 200A &overvoltage protection 15.6V Balancing Active balancing in every state of charge Short-circuit proof Yes Temperature monitoring / protection Yes Remote monitoring integrated with APP n/a Bluetooth n/a CONFORMITYÄTSSPECIFICATIONS Certification UN38.3 | MSDS | CE | RoHS Transport classification UN3480

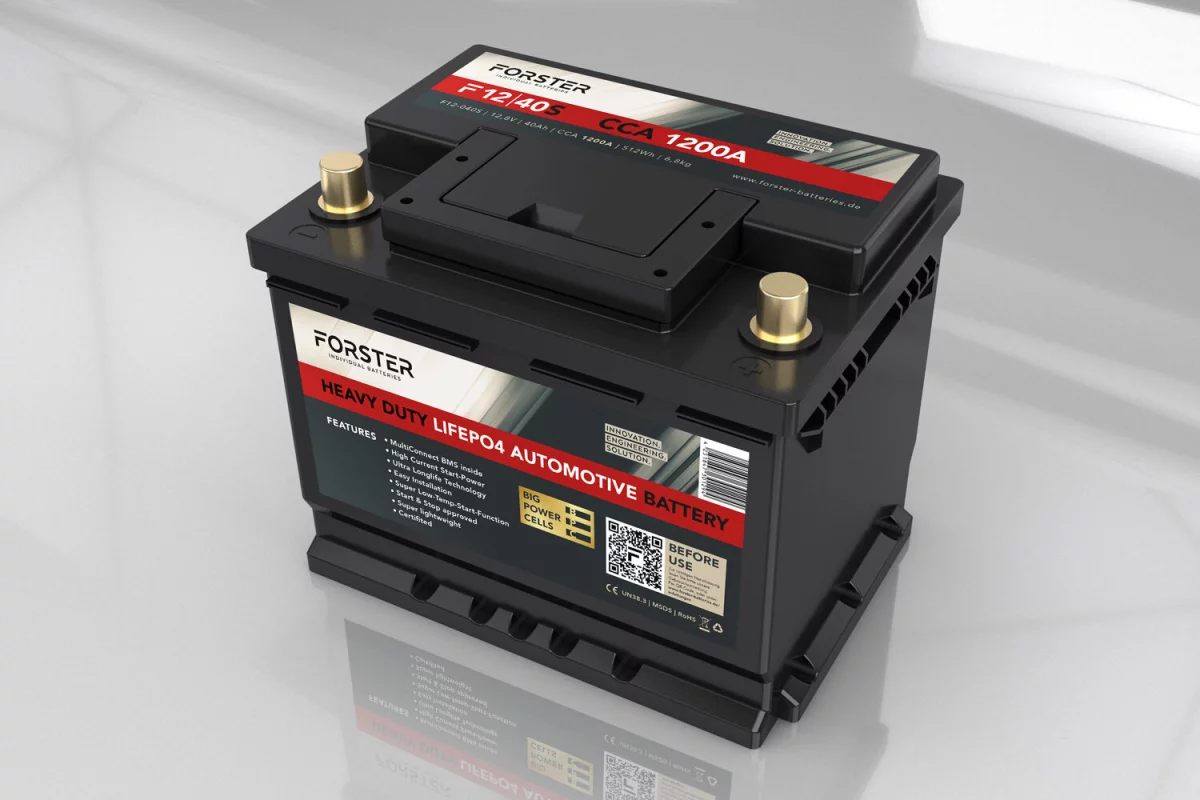

FORSTER 40Ah 12.8V LiFePO4 Heavy Duty Automotive Lithium Battery 1200A 240 x 174 x 190mm, 7,2kg Pb-eq 90Ah
12,8V | 40Ah | Lithium Starter Battery | replaces 80Ah lead
Ready to go with the latest lithium technology for your start
With the new LiFePO4 lithium iron phosphate premium starter battery from FORSTER, for the first time you have the opportunity to replace your previous lead or gel battery (of your EURO 6 car) 1:1 with a LiFePO4 starter battery. We offer you the latest lithium battery technology ready for installation in a standard battery housing.
TOP FEATURES:
– Multi-Dynamic BMS
– Start-stop function
– Unique & strong function / high current starting performance
– Very long service life & easy installation
– High cold resistance
– Super light weight
– Certified
Multi-Dynamic Battery Management System:
The absolute highlight is the Multi-Dynamic BMS. This function was originally developed for racing and permanently adapts to the vehicle electronics. It controls all protective functions and ensures maximum safety. This BMS protects your battery from overvoltage and overtemperature, balances the cells during charging and prevents deep discharging of the battery. This function is unique & always learning.
Start-stop function:
Our LiFePO4 starter batteries support all vehicle models with the start-stop function. A reliable energy supply is also guaranteed here.
Other advantages at a glance:
– Double the usable capacity compared to lead batteries
– High-quality materials & parts
– Plug & Play
– Precisely fitting battery terminals
– Improved fuel efficiency
– Higher brightness of vehicle lighting
– High reliability even at sub-zero temperatures
Product quality
The in-house German development of the battery management system is the basis for our quality standards. In addition, FORSTER INDIVIDUAL BATTERIES not only tests and documents all batteries during production, but also again on the day of dispatch before delivery. Our premium starter batteries arrive fully charged and start your vehicle immediately after installation.
2-year warranty
As a manufacturer, FORSTER INDIVIDUAL BATTERIES offers a 2-year warranty on the battery advertised with the warranty promise.
