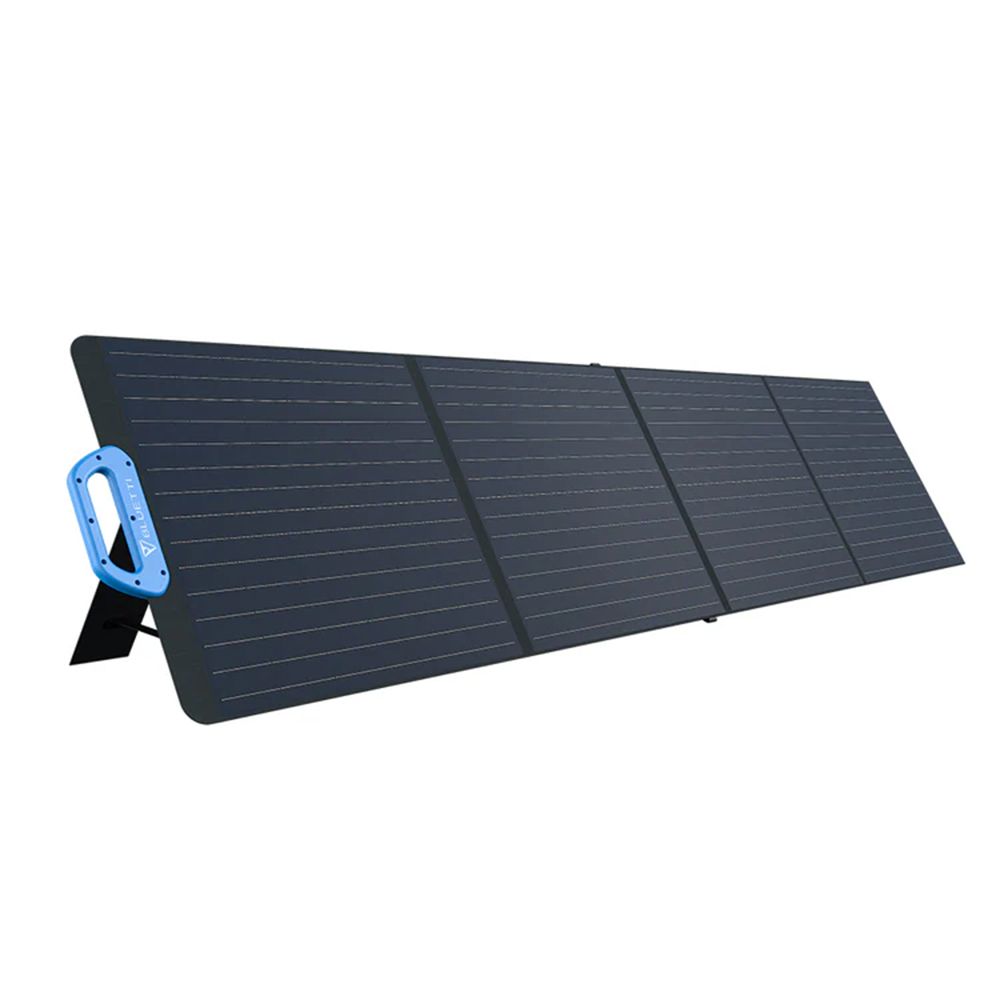

Bluetti PV120 120W foldable solar panel
Technical data
Maximum power: 120W
Open circuit voltage (Voc): 24.4V
Short-circuit current (Isc): 6.43A
Module voltage: 19.6V
Max. current: 6.1A
Protection class junction box: IP65
Operating temperature range: -10°C to +65°C
Number of solar modules: 4
Bypass diodes: 1
Protection class: IP65
Weight: 5.7 kg
Dimensions when open: 533 x 1652 mm
Dimensions when closed: 533 x 470 mm
Highlights of the PV120 solar panel
Store solar energy – anywhere
Durability thanks to ETFE coating
Efficiency of up to 23.4%
Cell type: monocrystalline
Integrated feet/stands for perfect alignment
Easy setup
Portable and flexible
If you want to charge your power station, it is best to use only one PV120 solar panel. The EB3A portable power station from Bluetti is ideal for this. Weighing just 4.6 kg, it is a real lightweight and can be transported very easily with the panel. The solar panel is also compatible with other brands, but make sure that the open-circuit voltage (VOC) of the PV120 is below the input voltage limit of the power station. You can find more models here.

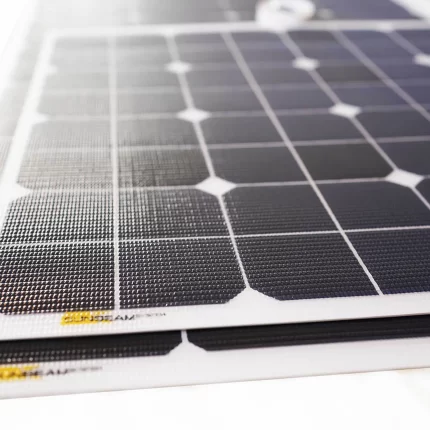

Advantages of ETFE coating
An ETFE (ethylene tetrafluoroethylene) coating is a special type of surface coating that is resistant to environmental influences. Here are some key features and advantages of this coating:
Durability – an extremely robust material that is resistant to both UV radiation and chemical influences. This ensures a long service life for the solar panels.
Lightweight – compared to traditional glass coatings, ETFE is significantly lighter, which makes transport and installation easier.
Flexibility – can therefore also be used on curved or irregular surfaces. This opens up new application possibilities, especially in mobile applications such as motorhomes or boats.
Self-cleaning ability – low surface energy, which means that dirt and dust adhere less easily. Rainwater can therefore wash away dirt more easily, reducing maintenance requirements.
High light transmission – ETFE has very highlight transmission , which increases the efficiency of solar cells by allowing more sunlight to penetrate the coating.
Weather resistance – ET FE coatings are extremely weather-resistant and can withstand both high and low temperatures without losing performance.
Easy setup and alignment
Unfold the solar panel
Set up the stands
Adjust the angle of inclination to optimize sunlight exposure
…and you’re ready to use efficient solar energy for your generators.
