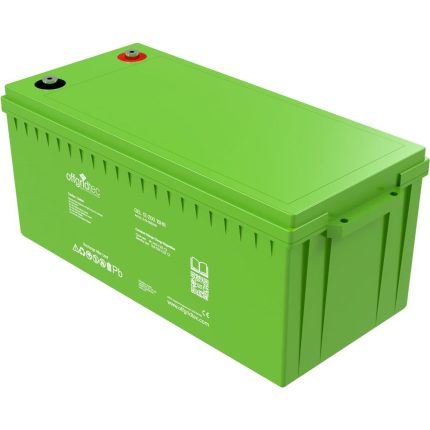

200Ah C10 GEL battery 12V
Key product features
Up to 1800 cycles (at 30% DOD)
Absolutely maintenance-free operation
High recombination capacity in cyclic operation
Very good high-current characteristics.
High cycle stability thanks to robust design
Grid alloy based on a unique formula
No acid stratification thanks to gel technology
Life expectancy of up to 10 years (depending on usage)
Self-discharge of less than 3% per month.
Robust, impact- and break-resistant, and aging-resistant housing material
Produced using the latest manufacturing processes
Technical data:
Connections: Flat pole with M8 screw connection
Voltage: 12V
Nominal capacity: 200 Ah
Cold test current: 1030 EN
Discharge: C10 (10.8V) – 200Ah
Discharge: C20 (10.8V) – 210Ah
Internal resistance: 0.008 ohms
Watt/h: 2400Wh (1200Wh at 50% depth of discharge)
Dimensions (LxWxD): 52.3 x 24.0 x 24.5cm
Terminal: M8 screw terminal
Weight: 62 kg
The Offgridtec 200Ah 12V gel battery has been developed to meet the highest demands for durability and stability. With reliable continuous current output, it ensures the functioning of all electrical consumers. It is ideal as a buffer for all charging and discharging processes, such as in solar applications.
Offgridtec gel batteries are also ideal for use in sports vehicles, boats, motorhomes, and emergency power supplies.
A gel solar battery is a type of battery that has been specially developed for use in solar systems. It is a form of lead-acid battery that is filled with a gel electrolyte instead of the liquid electrolyte found in conventional lead-acid batteries. This gel electrolyte technology makes the batteries maintenance-free, as they do not need to be refilled, and they are less susceptible to electrolyte spills or leaks.
The advantages of gel solar batteries are their durability, maintenance-free operation, low self-discharge rates, and ability to withstand deep discharges without damage.
