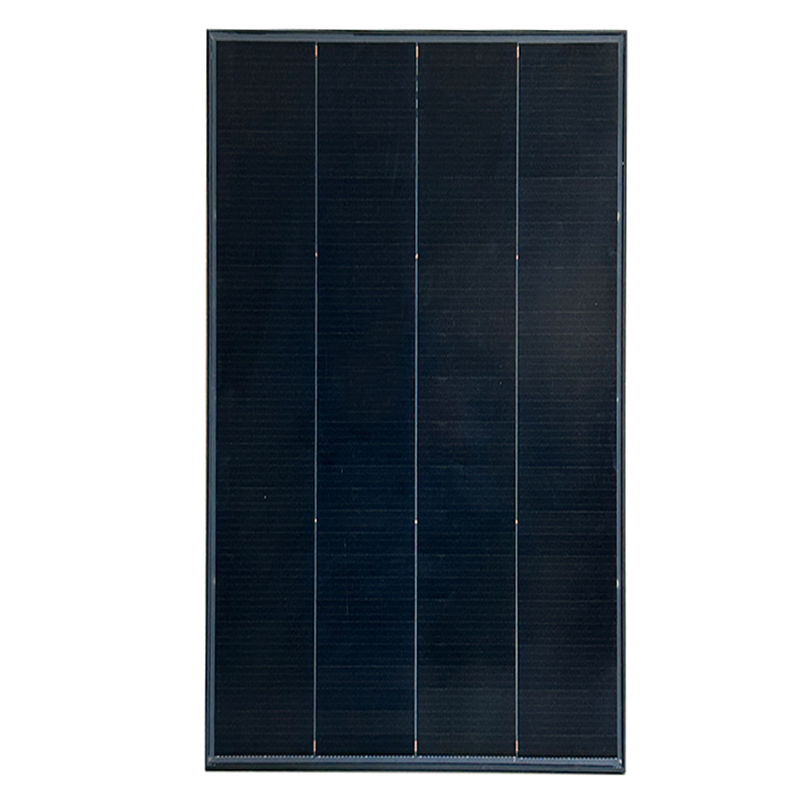

130W (1160*540*30mm) Frame Solar panel
Nominal Power 130W
Cell Efficiency 22%
Maximum Power Current 6.37A
Maximum Power Voltage 20.42V
Open-circuit Voltage 24.27V
Short-circuit Current 6.75A
Maximum System Voltage 500V
Output Tolerance 0~+3%
Cable （MC4） 700mm / 2.5mm²
Module Structure Aluminum Frame / Glass / EVA /Backsheet
Junction box rating ≥IP67
Cell 166*31.4–36*3
Working Temperature -40~+80℃
Module Dimensions 1160*540*30mm
Weight（Net /Gross） 6.5kg/7.4kg
Advantages:
The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
Using tempered glass, high transparency.
Anti-corrosion EVA effectively protects the battery panel.
Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
Lightweight and flexible features can make it seamlessly integrated into your vehicle.
Packed in a single carton, with protective corners on all four corners.
OEM and ODM supported.
