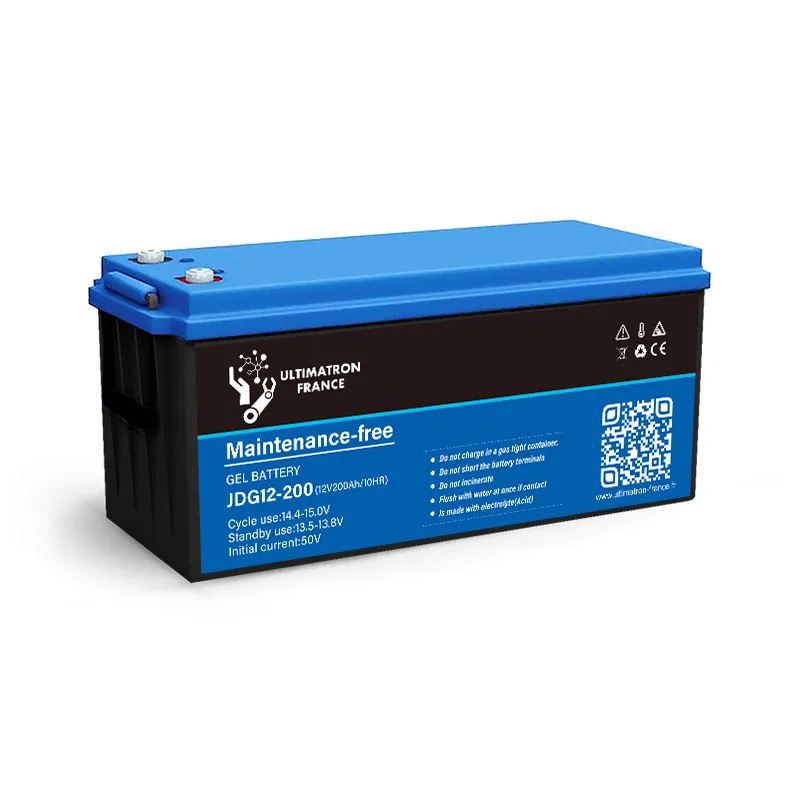

200Ah 12V GEL Slow Discharge Battery – ULTIMATRON
High corrosion resistance: Pb-Ca Pb-Ca multi-alloy grid
High energy density and power density
Optimized instantaneous high current capacity Optimized instantaneous high current capacity discharge
Excellent charge acceptance capacity Excellent charge acceptance capacity
Excellent deep cycle discharge capacity
Strong performance at high and low temperatures Strong performance at high and low temperatures
Precision sealing technology
Long life Long life
Tension 12V
Battery Type FREEZE
Net Weight (kg) 45
Guarantee 2 YEARS *
Max charging current 50A
Max DC discharge current 2400A(5s)
Nominal capacity @ 25°C 200Ah
Brand ULTIMATRON
Dimensions 522(L) * 240(W) * 219(H) * 222(TH) Unit: mm
Terminal M8
Capacity 10h 200Ah (20.0A to 10.8V)
Capacity 3h 158Ah (52.6A to 10.8V)
Capacity 1 hour 128Ah (128A to 10.5V)
Floating life 12 YEARS
Container material ABS
Internal resistance
Fully charged at 25°C: 3.2 m Ω
Recommended charging current
20A
Charging temperature
-20°C ~ 50℃
Discharge temperature
-40°C ~ 60℃
Storage temperature
-20°C ~ 50℃
Self-discharge
3% capacity drop per month at 25°C
Float Cycling
13.5-13.8V, recom. 13.5V (full floating system)
Standby Cycling 13.5-13.8V, recom.13.62V (cycle use system)
