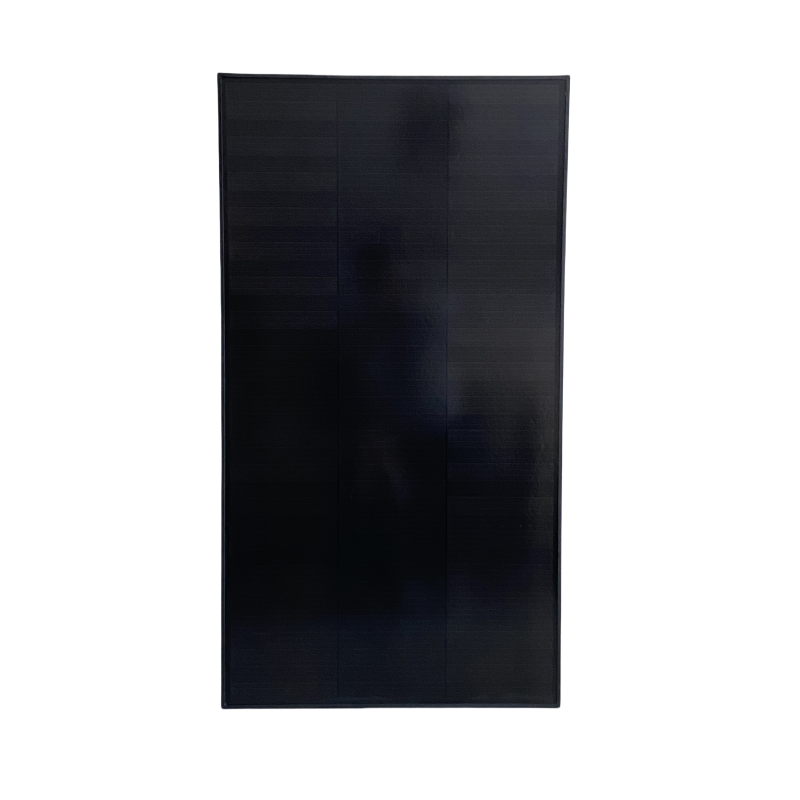

170W Mono Rigid Solar Panel
Advantages:
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
- Using tempered glass, high transparency.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- Packed in a single carton, with protective corners on all four corners.
- OEM and ODM supported.
4
βλέπουν το προϊόν αυτό τώρα!
Κωδικός προϊόντος:
SZ-170S
Κατηγορία: CARAVAN & CAMPER
Περιγραφή
Nominal Power 170W Maximum Power Current 8.33A Maximum Power Voltage 20.41V Open-circuit Voltage 24.26V Short-circuit Current 8.83A Maximum System Voltage 500V Output Tolerance 0~+3% Cable (MC4) 700mm / 2.5mm² Module Structure Aluminum Frame / Glass / EVA /Backsheet Junction box rating ≥IP67 Cell 210*33.2–36*3 Working Temperature -40~+80℃ Module Dimensions 1230*670*30mm Weight(Net /Gross) 8.9/10.0kg
