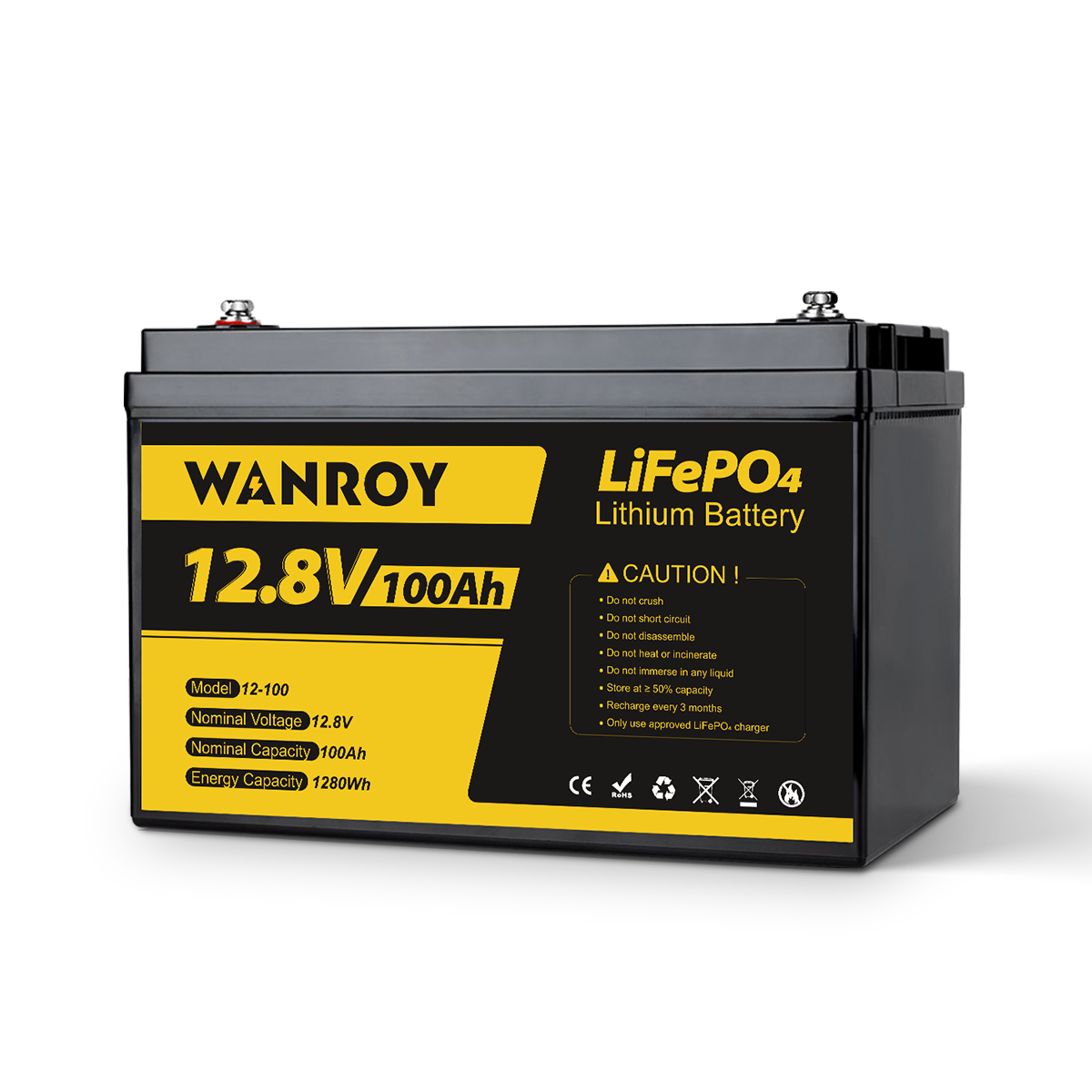

WANROY 12V 100Ah LiFePO4 Battery With 100A BMS
Item Model WY12100
Battery Technology Lithium iron phosphate
Nominal Voltage 12,8V
Capacity (Ah) 100Ah
Rated Energy 1280Wh
Charging Voltage 14.4V (14.6V Max)
Cell Number 4S2P, 8 Cells
Terminal F12,M8
Max. Continuous Load Power 1280W
Max Continuous Charge /Discharge Current 100A
Peak Discharge Current@10S 250A
Recommended Number of Batteries in Series/Parallel 4 Series connection or 4 parallel connection
Charge Temperature 0℃ ~ +45℃
Discharge Temperature -20℃ ~ +60℃
Product Size (L x W x H) 330x170x220mm
Product Weight ≈11,3kg
Delivery Content 1x 100Ah LifePO4 battery
1x User manual
Shipping Warehouse Germany
Lifespan >15 years
Warranty 5 years
Notice Do not charge below 0°C.
This battery cannot be used as a starting battery.
[LONGER LIFESPAN] The lifespan of WANROY battery is over 15 years, which is 5 times longer than the 3-year lifespan of lead-acid batteries.
[ENSURED SAFETY] Each cell has passed the puncture test, and the temperature rises rapidly after the cell is damaged, but there are no safety hazards such as explosion. The batteries have passed CE, FCC, RoHS, MSDS, UN38.3 and other certification reports.
[WITH 100A BMS] The battery is equipped with a self-developed high-performance Battery Management System (BMS) that enables multiple protective functions. It provides overcharge protection, over-discharge protection, short circuit protection, temperature monitoring, and balanced charging and discharging.
[SUPPORT SERIES AND PARALLEL] You can get larger capacity and higher voltage by connecting them in parallel or in series. Up to 4 in series or 4 in parallel.
[COMPATIBLE WITH MOST INVERTERS] Victron Energy, Growatt, Deye, SMA etc.
[5-YEAR WARRANTY] WANROY 12V 100Ah LiFePO4 battery enjoys a 5-year warranty.
