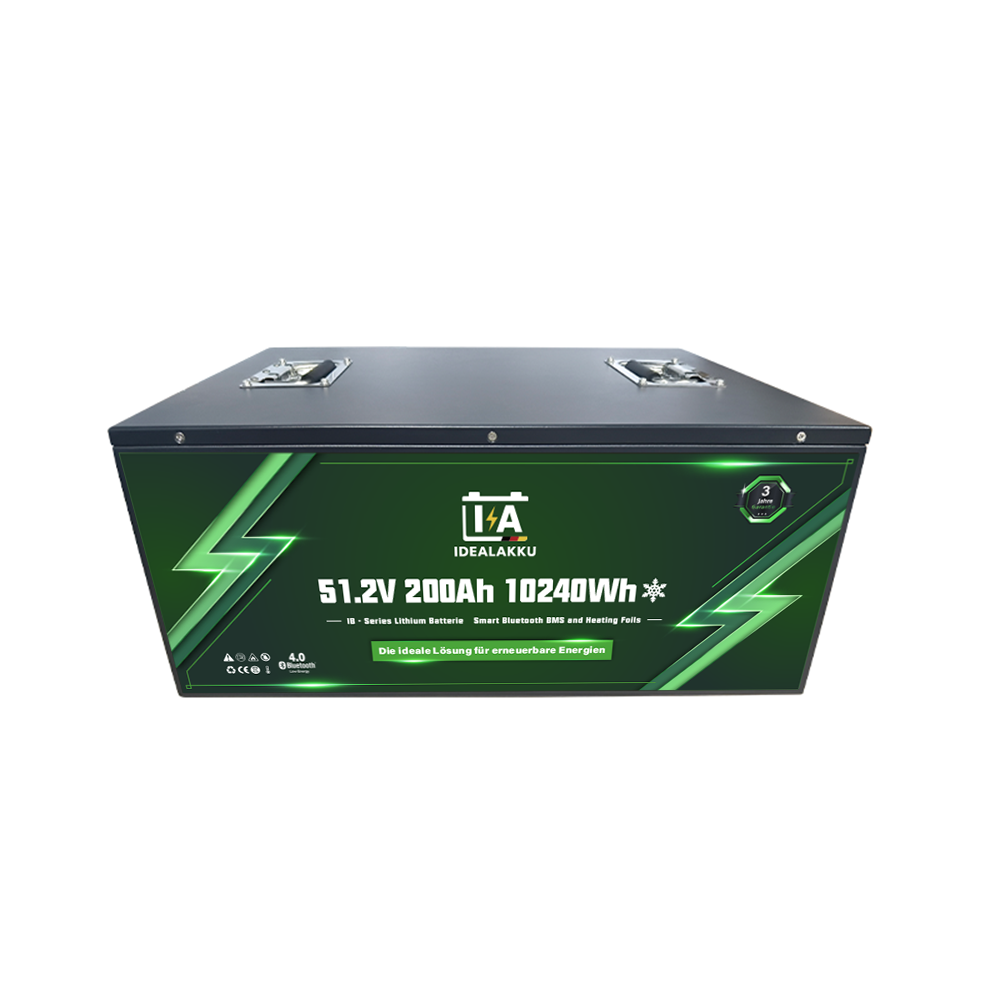

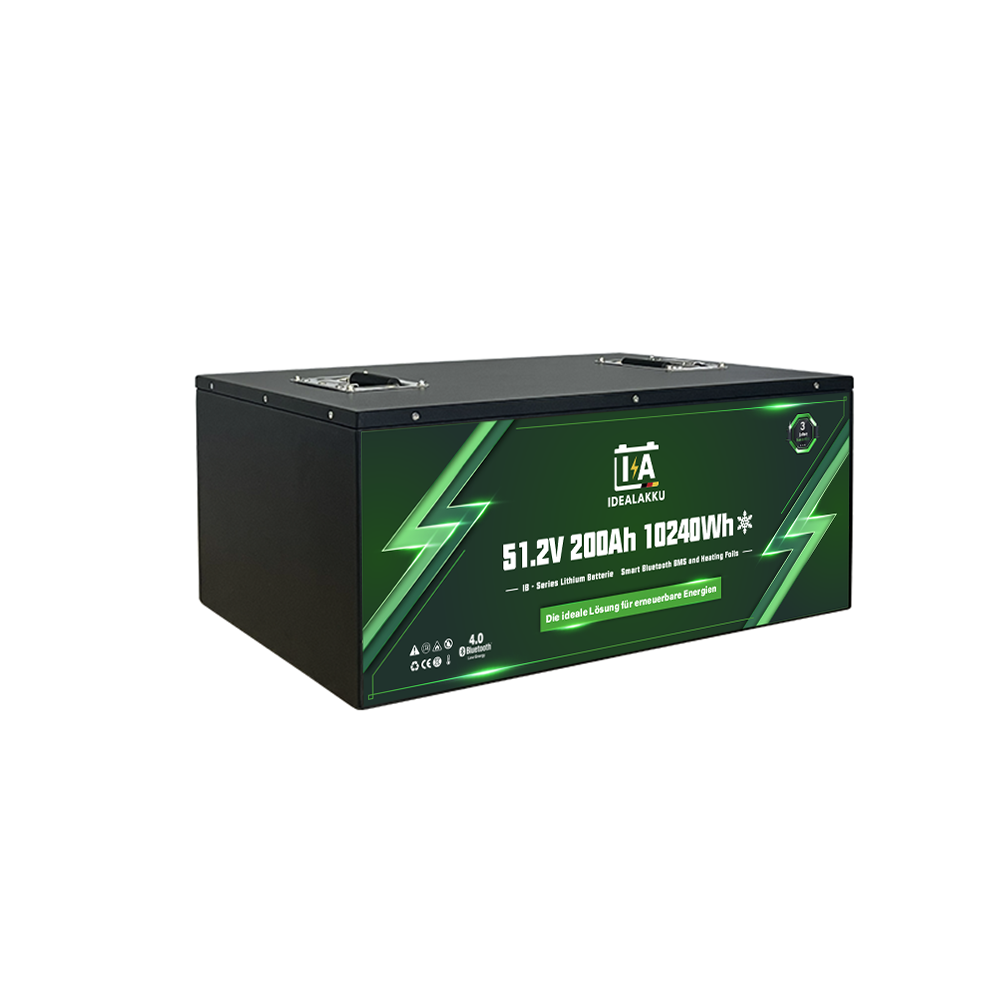

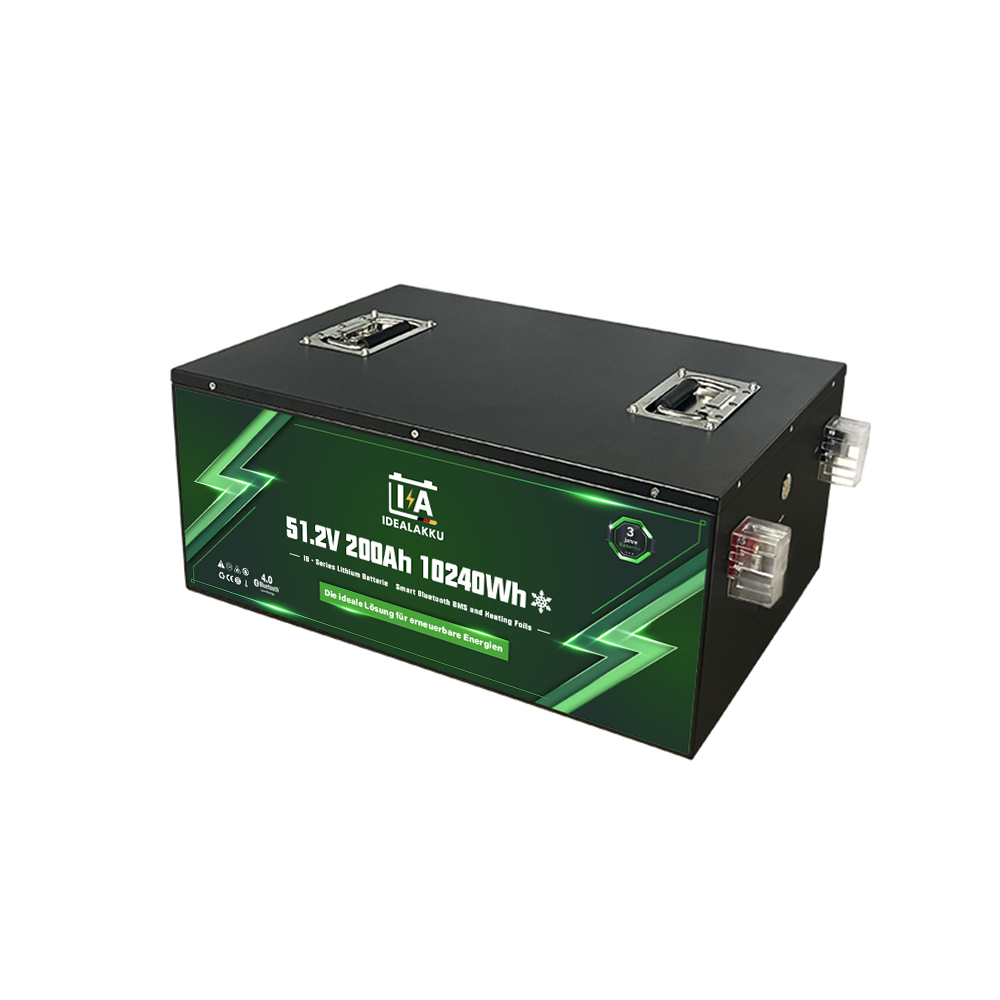

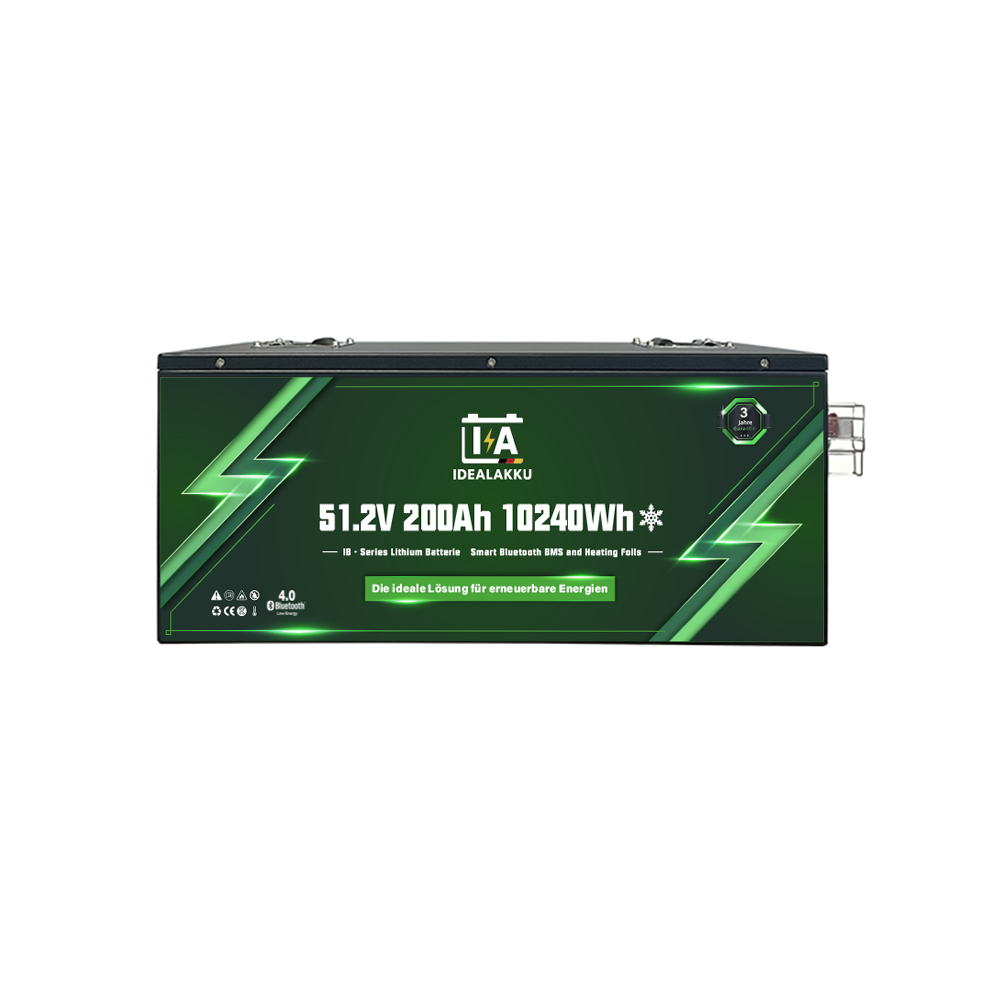

Idealakku IB SERIES Lithium Battery LiFePO4 48V 200Ah Smart BMS Bluetooth with Heating

Strong advantages
3-year warranty
Remove lead-acid battery directly
Lighter weight and easier handling
Lithium iron phosphate is more stable
Excellent stability even under extreme loads
No memory effect, no complete charge and discharge cycles required.
Deep, regular charging and discharging, and charging efficiency
Maximum lifespan of over 6000 cycles
Durable modular design
Screw opening, perfectly crafted internal structure design



7 βλέπουν το προϊόν αυτό τώρα!
Κωδικός προϊόντος: ACCU LIT100A Κατηγορίες: ,
Περιγραφή

Technical worksheet

Model 51.2V 200Ah/10240Wh
Replaces lead-acid gel AGM battery 51.2V 400Ah
Cell type Prismatic cell
Dimensions including clamps (L x W x H) 570*380*230mm
Weight (without accessories) 76.7kg
menstrual cycle >6000@80%DoD
Internal resistance ≤14 mΩ
Recommended charging voltage 58.4V
Maintenance charging voltage (for standby
use)
55.2±0.8V
Recommended charging current 60A
Max. charging current 100A
Continuous discharge current 250A
Peak discharge cutoff current 600A (200~500ms)
Operating voltage range 40 – 58.4V
End of the discharge voltage range 40 – 44.8V
Terminal type M8
Protection class IP62
Charging temperature 0~50°C
Discharge temperature -20~75°C
Storage temperature -5 to 35°C
Heating operating temperature -35 to 5°C
Storage condition Charge the battery every 3 months
Series and parallel availability Maximum of 4 in parallel
Certifications CE /UL /UN38.3 /MSDS /ROHS
UN 3480 /CLASS 9
