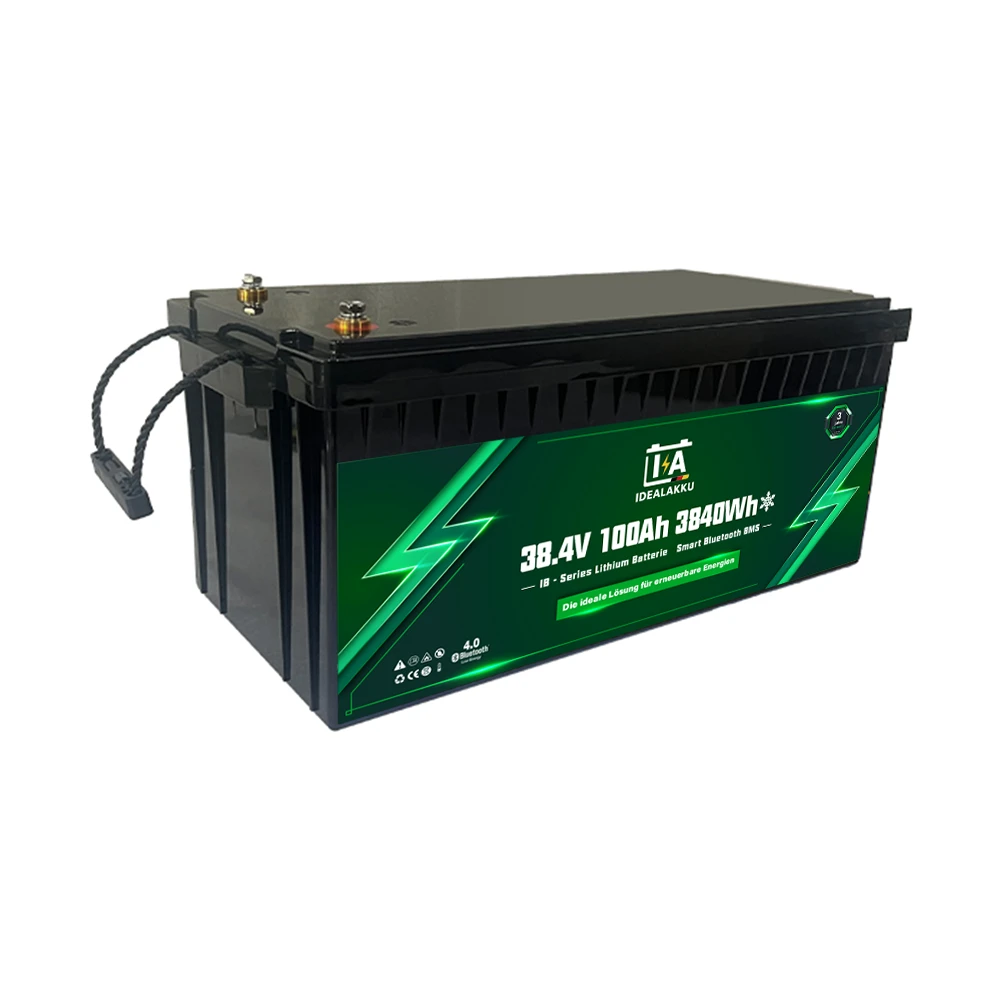

Idealakku IB SERIES Lithium Battery LiFePO4 36V 100Ah Smart BMS with Bluetooth and Heating

Model 38.4V 100Ah/38400Wh
Replaces lead-acid gel AGM battery 38.4V/200Ah
Cell type Prismatic cell
Dimensions including clamps (L x W x H) 522*240*218mm
Weight (without accessories) 31.25 kg
menstrual cycle >6000@80%DoD
Internal resistance ≤10 mΩ
Recommended charging voltage 43.8V
Maintenance charging voltage (for standby
use)
27.6V±0.8V
Recommended charging current 20A
Max. charging current 50A
Continuous discharge current 150A
Peak discharge cutoff current 500A±60A(250±1000mS)
Operating voltage range 30 – 43.8V
End of the discharge voltage range 30-33.6V
Terminal type M8
Protection class IP65
Charging temperature 0~50°C
Discharge temperature -20~75°C
Storage temperature -5 to 35°C
Heating operating temperature -35 to 5°C
Storage condition Charge the battery every 3 months
Series and parallel availability 36V installation, maximum 2 pcs in parallel only
Certifications CE /UL /UN38.3 /MSDS /ROHS
UN 3480 /CLASS 9
5 βλέπουν το προϊόν αυτό τώρα!
Κωδικός προϊόντος: ib-36-100h Κατηγορίες: ,
Περιγραφή
 3-year warranty
Remove lead-acid battery directly
Lighter weight and easier handling
Lithium iron phosphate is more stable
Excellent stability even under extreme loads
No memory effect, no complete charge and discharge cycles required.
Deep, regular charging and discharging, and charging efficiency
Maximum lifespan of over 6000 cycles
Durable modular design
Screw opening, perfectly crafted internal structure design
