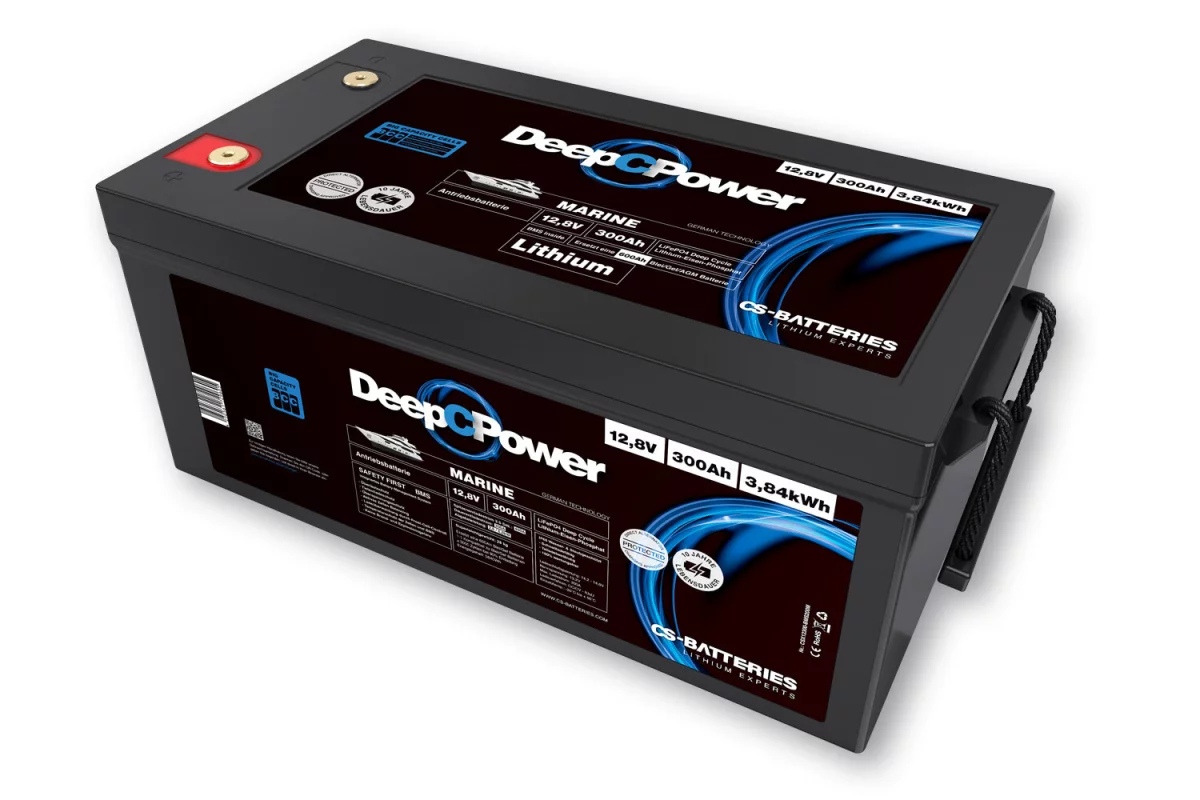

CS Lithium LiFePO4 -Marine / Boat- Battery 12,8V | 300Ah | 3840Wh
Technical data:
Model: CSX12300-BMS200M
Type: Power battery, supply battery
Nominal capacity: 300Ah Energy content: 3840 Wh
Cell technology: Lithium iron nanophosphate LiFePO4
Cell type: Big-Capacity-PrismaticCells (BCC)
Replaces a: 12V / 600Ah lead-gel battery
Application: 12V installations, electric drives, solar
Application parallel connection: Yes, any number of the same type possible
Application series connection: Yes, 24V, 36V and maximum 48V possible
Operating voltage: 9.2 – 14.4V
Nominal voltage: 12.8V
Lifetime: = 10 years
Cycle life at 50% DoD: = 8000
Cycle life at 80% DoD: = 6000
Cycle duration at 90% DoD: = 4000
Charging programs: CCCV / IU / IUoU
Charge end voltage: 14.6V
Maximum charging current: 200A
Standard charging current: 150A / 0.5C
Charging current for max. Service life: 75A / 0.33C
Continuous discharge current: 200A Peak discharge current (3-5 sec.): 400A
Maximum inverter power: up to 2560W
End-of-discharge voltage: 9.2V
Temperature range (discharge): -20°C to +65°C
Temperature range (charging): 0°C to +50°C
Temperature range (storage): -20°C to +65°C
Battery Management System (BMS): Yes, built-in
Balancer: Yes, active balancer
Self-discharge: 1-2% / month
Installation position: any
Connection: M8 screw or cone
NEW:Protection class: IP67 water & dust protected
Weight: 31.5kg
Dimensions (WxDxH): 520 x 268 x 220 mm
NEW: Manufacturer’s warranty: 7 years
New 300Ah lithium battery as a full-fledged lead-acid battery replacement for your boat, as supply,- or electric drive battery!
The CS-Electronic DeepC-Power LiFePO4 battery is a rechargeable lithium iron phosphate battery with a built-in battery management system (BMS) specially designed for boats or power drives. With the new lithium-iron technology, you can replace your existing lead, gel or AGM battery quickly and easily for the first time.
The ultra-light DeepC-Power battery can be used as a pure supply or traction battery and can be loaded with up to 400A for short periods. The significantly lower weight, long operational reliability, long service life and long service life are decisive advantages compared to conventional batteries with old technology.
Features:
- High current resistance
- Replaces a 12V / 600Ah lead-acid battery
- Built-in BMS
- Very low weight
- Fast charging capability
- NEW: Optimized software for parallel connection with large battery banks
- NEW: “Alternator-Protected” no additional electronics required to protect the alternator
- NEW: including battery pole adapter -serrated & nickel-plated-
- NEW: sealed housing protection class IP67
- High intrinsic safety, LiFePO4 cannot burn!
- Can be used in all positions
- Temperature stable
- Over 3000 cycles at 90% discharge
- Lifetime up to 10 – 20 years
- 100% maintenance-free
- Environmentally friendly, no lead, no acid
- Recyclable!
