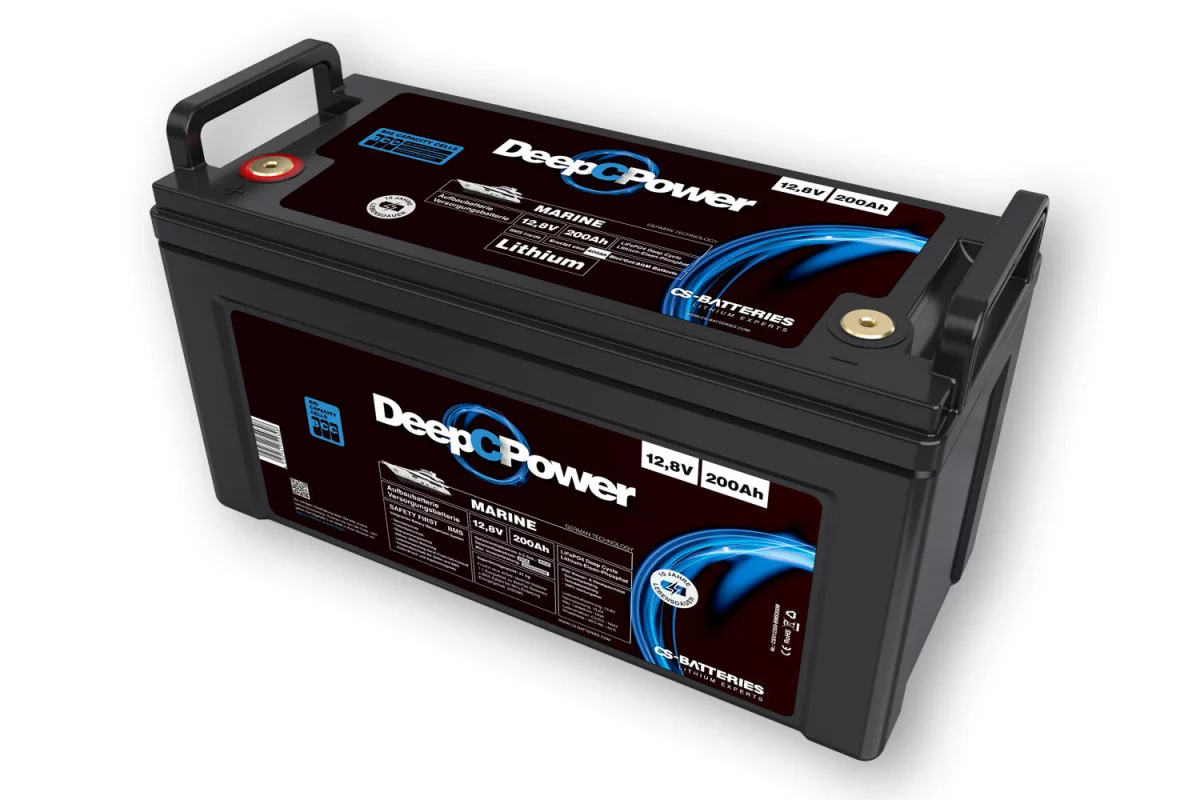

CS Lithium LiFePO4 -Marine / Boat- Battery 12,8V | 200Ah | 2560Wh
Technical data:
Model: CSX12200-BMS200M
Type: Supply battery
Nominal capacityät: 200Ah Energy content: 2560 Wh
Cell technology: Lithium iron nanophosphate LiFePO4
Cell type: Big-Capacity-PrismaticCells (BCC)
Replaces a: 400Ah lead-gel battery
Application: 12V installations
Application Parallel Circuit:Yes, any number of the same type possible
Application Series switching: Yes, 24V, 36V and maximum 48V possible
Operating voltage: 10.5 – 14.6V
Nominal voltage: 12.8V
Lifetime: = 10 years
Cycle duration at 50% DoD: = 5000
Cycle duration at 80% DoD: = 3500
Cycle duration at 90% DoD: = 3000
Loading programs: CCCV / IU / IUoU
Final charge voltage: 14.6V
Maximum charging current: 200A / 1C
Maximum continuous charging current: 100A / 0,5C
Charging current for max. Service life: 66A / 0.33C
Continuous discharge current: 200A Peak discharge current (3-5 sec.): 400A
Maximum inverter power: up to 2500W
Discharge voltage: 10.5V
Temperature range (discharge): -20°C to +65°C
Temperature range (charge): 0°C to +50°C
Temperature range (storage): -20°C to +65°C
Battery Management System (BMS):Yes, built-in
Balancer: Yes, active balancer
Self-discharge: 1-2% / month
Fitting position: any
Connection: M8 female thread
Protection class: IP67 water & dust proof
Weight: 21kg
Dimensions (WxDxH): 405 x 175 x 210 mm (without handle)
Dimensions (WxDxH): 405 x 175 x 235 mm (with handle)
NEW: Manufacturer’s warranty: 7 years
Features:
High current resistance
Replaces a 12V / 400Ah lead battery
Built-in BMS
Very low weight, only 21kg
Fast charging capability
NEW: Optimized software for parallel connection with large battery banks
NEW: “Alternator-Protected” no additional electronics required to protect the Lima
NEW: including battery pole adapter -fluted & nickel-plated-
NEW: Sealed housing protection class IP67
High intrinsic safety, LiFePO4 cannot burn!
Can be used in all situations
Temperature stable
Over 3000 cycles at 90% discharge
Lifetime up to 10 – 20 years
100% maintenance-free
Environmentally friendly, no lead, no acid
Recyclable!
The lithium iron phosphate battery (LiFePO4) is the safest of the lithium-ion battery family. It is high-current resistant, can be used universally and is lighter than lead, gel or AGM batteries. In addition, the latest lithium-iron technology offers a high degree of intrinsic safety, so that there is no risk of explosion even under the most extreme conditions. A 12.8V LiFePO4 battery consists of 4 individual cells connected in series and 2 in parallel, each with a nominal voltage of 3.2V. A built-in battery management system (BMS) also protects the battery cells from damage. Advantages of our LiFePO4 DeepC-Power battery compared to lead batteries:
High discharge rates possible up to the specified capacity
More payload is possible due to the up to 60% lower weight
Due to the smaller space requirement, more capacity can be carried in the same space
Up to 10 times longer service life thanks to the high number of cycles of LiFePO4 technology
Extremely fast charging of the cells possible
Complete discharge of the specified nominal capacity possible
The battery is protected by a battery management system (BMS)
The battery is charged in the boat using standard lead or acid chargers with a final charging voltage of 14.6V
The battery is winter-proof and does not need to be removed down to -20° C
Delivered fully charged, install and drive off
The battery has M8 screw connections as standard, which can optionally be fitted with our extra-light pole adapters
No modification to the boat or the additional electronics is required to use the battery
The low self-discharge means that a sealed battery can be stored for up to 12 months without any problems
For more capacity, you can connect any number of batteries in parallel
For more voltage, you can connect up to 4 batteries (maximum 48V) in series
