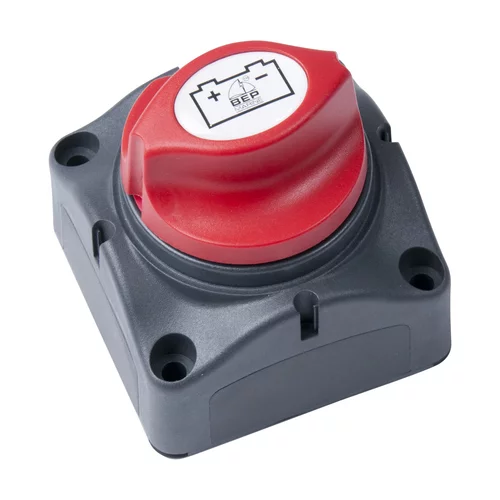

BEP Batterieschalter on/off, 275A

M series-battery switch switch-for small on-board nets, outboard motors and small installation machines

– Connections made of tinned copper – best contact and maximum corrosion resistance
– 22mm long connection bolts suitable for M10 ring cable shoes
– Stable, closed plastic housing with three inserted side parts enables the cable feed from different directions.
– Suitable for structure, installation, as well as the sunken assembly in switching boards
– rotary knob in a pull-out can be removed
– Protection class IP66
– switching function: ON / OFF
– Top load (30 seconds): 900A
– Short -term resilience (5 min.): 500A
– permanent load: 300a
– Tension range up to: 48V DC
– switching positions: 2
