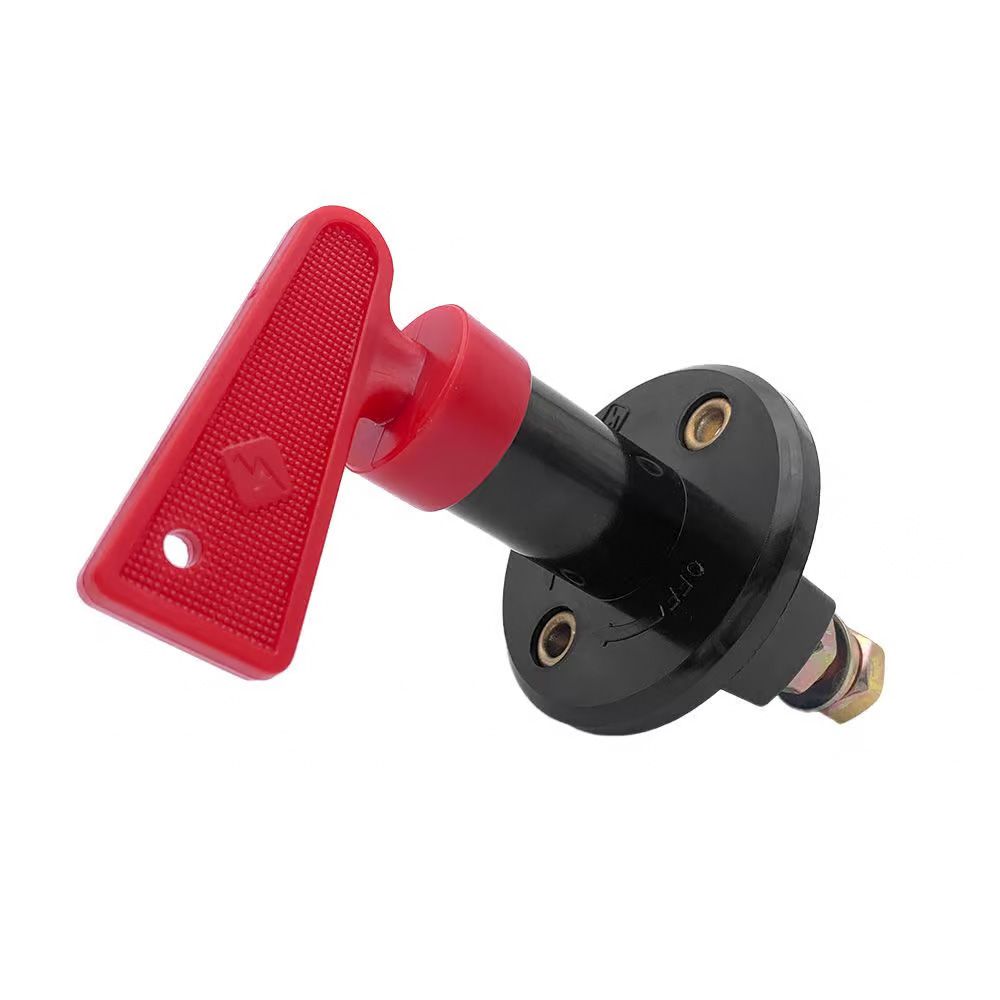

battery disconnect switch 12V/24V/48V 100A M8

battery disconnect switch, your battery can be safely disconnected to reduce power consumption when the device, vehicle, or boat is not in use. The switch is suitable for automotive electronics, electrical products, and all types of 12V/24V/48V vehicles, boats, motorhomes, etc.

The practical rotary switch is very easy to use and works smoothly. Switch the power supply on or off safely to avoid electric shock.

Circuit: 2-pole (2P), ON-OFF
Rated current: 12V: 100A / 24V: 50A / 48V: 25A
Load capacity: 12V: 500A for 10 seconds / 48V: 300A for 5 seconds
Insulation resistance: ≥ 100 MΩ
Contact resistance: ≤ 50 mΩ
Dielectric strength: ≥ 1500 V AC/min
Service life (mechanical): ≥ 10,000 switching cycles
Operating temperature: up to 55 °C
Housing material: Polycarbonate
Connection bolt: M8
