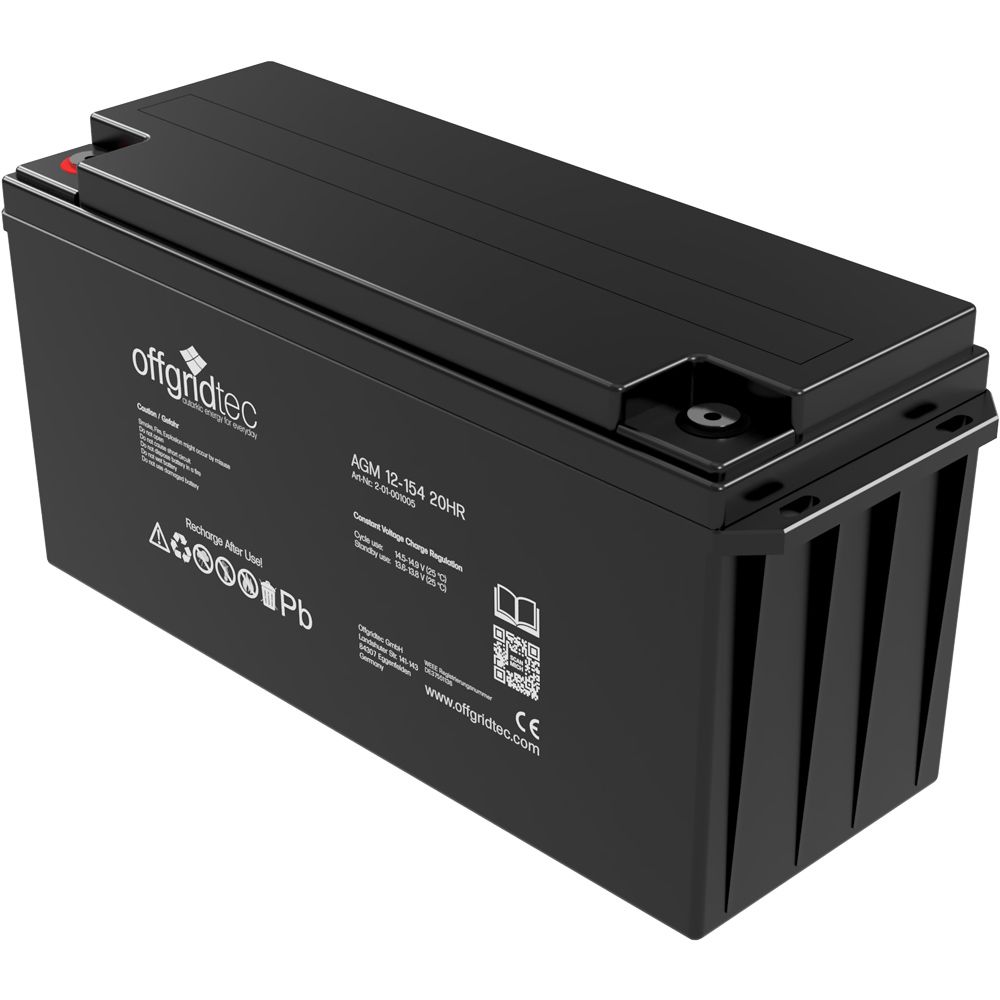

AGM 154Ah 20HR 12V – Solar battery Extremely cycle-resistant
Technical data
Battery type: AGM Cycle type
Storage capacity 20HR (7.7A, 1.75V): 154Ah
Storage capacity 10HR (15A, 1.75V): 150 Ah
Storage capacity 5HR (25.5A, 1.75V): 127.5 Ah
Storage capacity 1HR (96A, 1.75V): 96 Ah
System voltage: 12V
Charging voltage for cyclic use: 14.4V-14.9V
Charging voltage for standby use: 13.6V-13.8V
max. charging current: 37.5A
Self-discharge: max. 3% (per month)
Battery terminal type: M8 screw terminal (including screws)
Weight: 46 kg
Dimensions: 485 x 172 x 240 mm
Life expectancy: up to 10 years (depending on usage)
Advantages of using Offgridtec AGM technology
absolutely leak-proof, regardless of the position of the battery
screwable M8 terminals instead of battery terminals (100% secure)
100% maintenance-free over the entire service life
Life expectancy of up to 10 years (depending on usage)
highest quality level: All our batteries are manufactured in A-quality from the best materials. This is best seen in the weight of the batteries. Compare our products with those of other manufacturers!
can be discharged more deeply than lead-acid batteries
proven technology, used in over 1000 Offgridtec solar systems
highly cycle-stable, making them ideal for use in solar systems.
Although AGM batteries are slightly more expensive to purchase than lead-acid batteries, this is offset after just a few years, as lead-acid systems require much more maintenance and have a shorter service life than AGM-based storage solutions.
