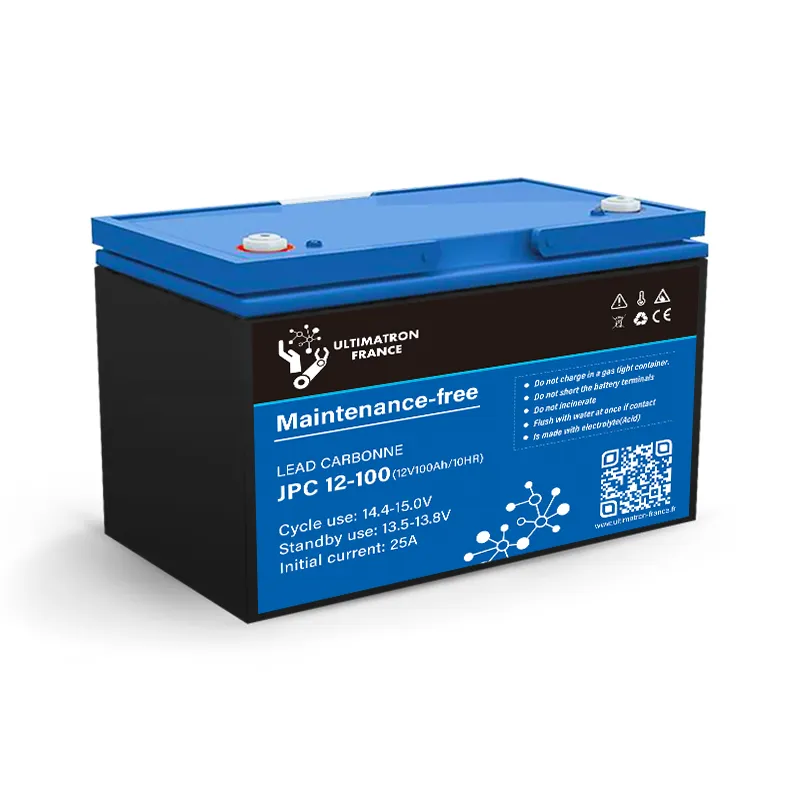

100Ah 12V Lead Carbon Battery Slow Discharge – ULTIMATRON
– Ultimatron 100Ah 12V Lead Carbon Battery, 1200Wh storage
– Maintenance-free alternative solution for AGM & GEL
– Best cycle life > 1800 cycles (70% DoD) and up to 1300 cycles with 80% DoD
– Excellent performance at low (extreme) temperatures
– Lead-carbon batteries can be used perfectly with good performance without being charged to 100%
– 2-year warranty *
Tension 12V
Battery Type Carbon lead
Net Weight (kg) 32KG
Guarantee 2 YEARS *
Max charging current 30A
Max DC discharge current 1200A (5S)
Nominal capacity @ 25°C 100 AH
Brand ULTIMATRON
Dimensions 330(L) * 171(W) * 216(H) * 219(TH) Unit: mm
Terminal M8
Capacity 10h 100Ah (10.0A at 10.8V)
Capacity 3h 81.3Ah (27.1A at 10.8V)
Capacity 1 hour 66.1Ah (66.1A at 10.5V)
Floating life 15 YEARS
Container material ABS
Recommended charging current 10.0A to 20.0A
Charging temperature -20°C ~ 60℃
Discharge temperature -20°C ~ 50℃
Storage temperature -20°C ~ 50℃
Self-discharge 3% capacity decreased per month at 25˚C
Float Cycling 13.5-13.8V, recom. 13.5V (full floating system)
Standby Cycling 13.5-13.8V, recom.13.62V (cycle use system)
